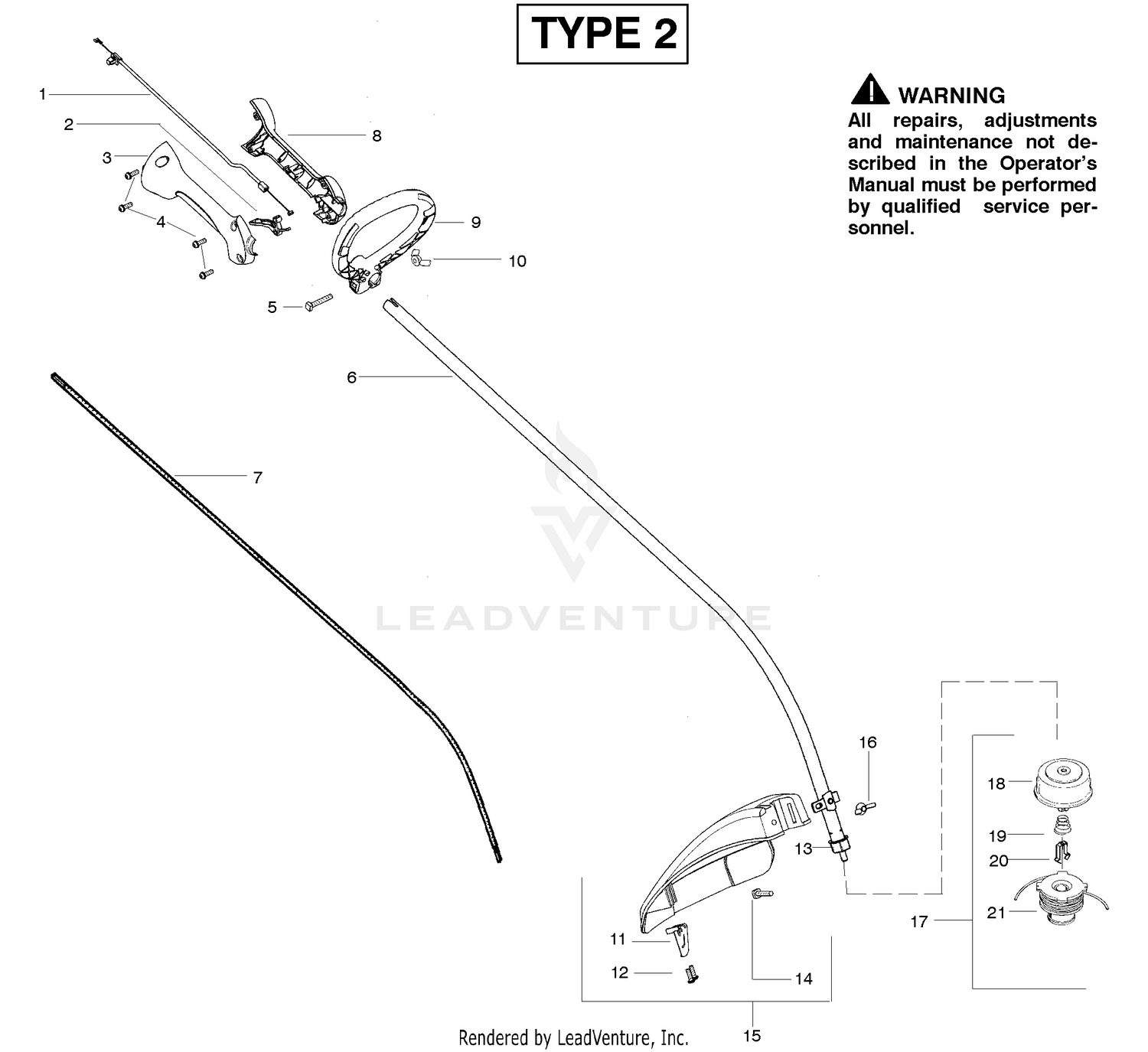

| Ref | Part Number | Description |
|---|
| 1 |
100-6443-01 |
FRAME ASM Price: $465.51 |
| 1 |
530057991 |
Assy-Throttle Cable Price: $8.99 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 2 |
94-3405 |
BEARING-BALL Price: $22.27 |
| 3 |
530057582 |
Throttle Hsg. (Right) Price: $7.99 |
| 3 |
95-7148 |
HOUSING-BEARING Price: $68.65 |
| 4 |
530015880 |
Screw-Throttle Hsg. Price: $1.99 |
| 4 |
95-1642-01 |
WEIGHT-COUNTER Price: $59.47 |
| 5 |
530015821 |
Bolt-Handle/Shield Price: $1.99 |
| 5 |
93-2569 |
SCREW-HHF Price: $1.08 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
530071875 |
Assy-Drive Shaft Hsg. Price: $17.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530096276 |
Shaft- Flex Price: $19.99 |
| 8 |
530057581 |
Throttle Hsg. (Left) Price: $7.99 |
| 9 |
530057587 |
Handle-Assist Price: $6.99 |
| 10 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 11 |
33026-00 |
NUT-HEX Price: $1.02 |
| 11 |
530052286 |
Line Limiter Price: $1.54 |
| 12 |
323-5 |
SCREW-HH Price: $0.41 |
| 12 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 13 |
530095563 |
Dust Cup Price: $9.99 |
| 13 |
99-4210 |
ROLLER-ANTI SCALP Price: $20.79 |
| 14 |
530015820 |
Bolt Price: $1.99 |
| 14 |
99-1615 |
REAR ROLLER ASM Price: $432.04 |
| 15 |
99-4209 |
SHAFT-ROLLER Price: $8.18 |
| 16 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 16 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 17 |
99-8168 |
COLLAR-HOC Price: $13.54 |
| 18 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 18 |
530071306 |
Kit-Hub Ass'y This part replaces 530095776. Price: $8.99 |
| 19 |
33114-025 |
SCREW-HH Price: $0.70 |
| 19 |
530053241 |
Spring-Compression Price: $1.99 |
| 20 |
530401957 |
Clip-Retainer-Head Price: $1.99 |
| 20 |
67-1300 |
DECAL Price: $29.99 |
| 21 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 21 |
952701719 |
TNG 6 RH .080X25' PLN This part replaces 952711616. Price: $7.95 |
| 22 |
33115-025 |
SCREW-HH Price: $0.61 |
| 23 |
99-1610 |
SPIKER SHAFT ASM Price: $1,355.09 |
| 24 |
33126-045 |
SCREW-CARR Price: $3.05 |
| 25 |
99-1637-01 |
PLATE-SCRAPER Price: $25.65 |
| 26 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 29 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 30 |
117-0561-01 |
PLATE-PIVOT Price: $27.62 |
| 31 |
100-6449 |
ROLLER-LIFT Price: $14.58 |
| 32 |
100-6448 |
SPACER-ROLLER Price: $14.66 |
| 33 |
323-12 |
SCREW-HH Price: $1.14 |
| 34 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
| 35 |
100-9818-01 |
PLATE-MOUNT, SPRING Price: $28.16 |
| 36 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 37 |
3234-1 |
SCREW-HHF Price: $1.62 |
