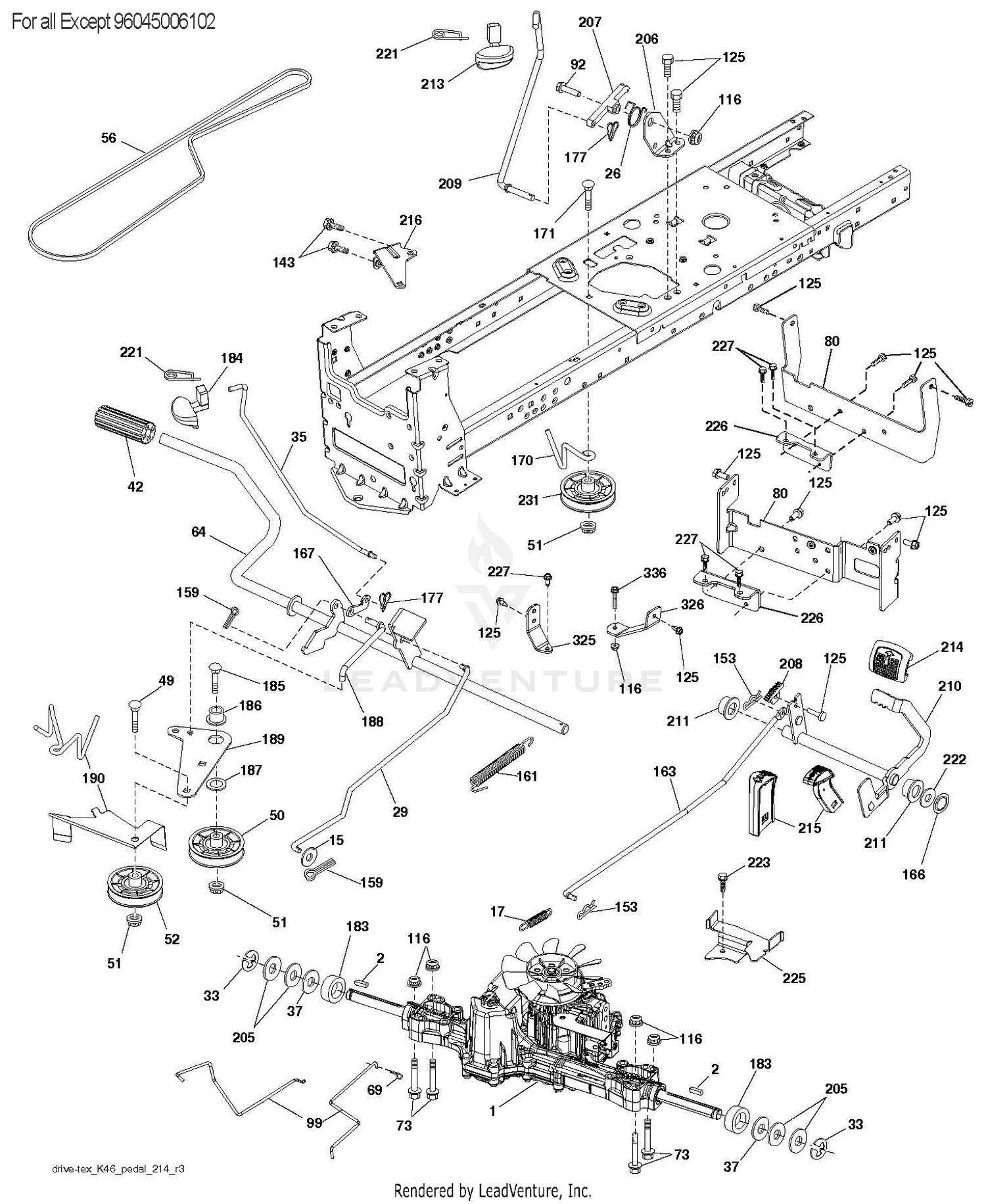

| Ref | Part Number | Description |
|---|
| 1 |
106-1093 |
RING AND PINION SET Price: $954.77 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
99-7570 |
BEARING-ROLLER, TAPER Price: $61.91 |
| 3 |
95-7534 |
CASE-BEARING Price: $176.21 |
| 4 |
106-1065 |
O-RING Price: $9.02 |
| 5 |
99-7572 |
COLLAR-SEAL, OIL Price: $21.01 |
| 6 |
106-1066 |
O-RING Price: $5.71 |
| 7 |
99-7574 |
SEAL-OIL Price: $4.42 |
| 8 |
99-7559 |
WASHER-LOCK Price: $9.82 |
| 9 |
99-7560 |
NUT-LOCK Price: $27.76 |
| 10 |
99-7550 |
SHIM 0.1 Price: $4.34 |
| 10 |
99-7551 |
SHIM 0.2 Price: $4.55 |
| 11 |
95-7533 |
CASE-GEAR Price: $289.33 |
| 12 |
99-7575 |
BOLT Price: $4.00 |
| 13 |
98-7735 |
STUD Price: $1.36 |
| 14 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 17 |
106-1140 |
GASKET Price: $17.66 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 92 |
595305701 |
Screws Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
