Home / OPE / Gravely Zero Turn / Promaster 200 / 992189 (000101 - ) Pro-Master 260H, Kawasaki, 60" Deck / Brake Linkage

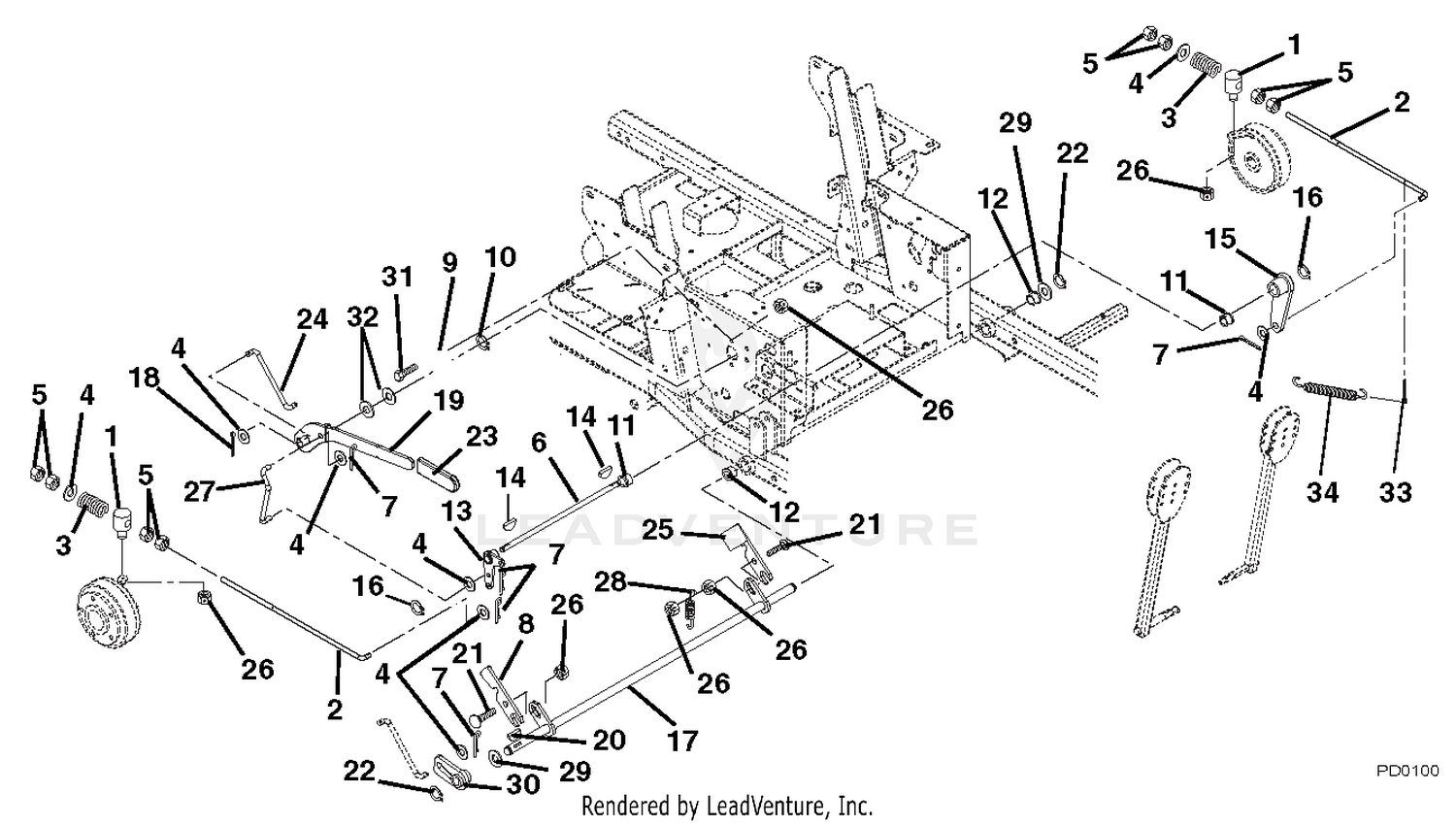

Brake Linkage

Brake Linkage

Parts (31)

RefPart NumberDescription
1 09267300 PIN, PIVOT/TRUNNION Price: $6.45
2 09289300 ROD, BRAKE Price: $71.45
3 08300027 SG-COMP .142 X .710 X 1.75 Price: $8.45
4 06401013 WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95
5 06500917 NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95
6 03825800 SHAFT, 200 BRAKE Price: $55.45
7 06700223 PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45
8 09267700 SLIDE, INTERLOCKING BRAKE Price: $20.45
9 05534100 BUSHING, FLANGED (WITH HOLE) This part replaces 05534700. Price: $36.95
10 05709200 RG-RTNG-EXT .625X.050 Price: $2.45
11 05518400 BSHG-FLG .762X1.0X.580X1.48 NY Price: $4.45
12 05521100 BSHG-FLG .515X.750X.745X1.00NY Price: $2.45
13 03825900 WMT, 200 BRAKE ACT. ARM Price: $51.95
14 06601300 KEY-SQ .188X1.0X.188 SAE 8630 Price: $1.45
15 00258600 WMT, BRAKE ARM Price: $61.45
16 05714600 RG-RTNG-EXT .689X.078 Price: $2.45
17 09268000 WMT, MECHANICAL BRAKE Price: $148.45
19 03254100 WMT, BRAKE HANDLE Price: $88.95
20 06608400 KEY-WDRF .13X.63 HRD#5 Price: $2.45
21 06200407 BLT, RHSN .31-18X1.25 G5 ZCC This part replaces 06219200. Price: $3.95
22 05717100 RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45
23 07523000 GRIP,HANDLE Price: $5.45
24 09268400 LINKAGE, BRAKE ACTUATING Price: $26.95
25 09275900 INTERLOCK, SAFETY SWITCH Price: $15.45
26 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
27 09268300 LINKAGE, BRAKE ACTUATING Price: $26.95
28 08314100 SG-TENS .063X.44X1.56 Price: $5.45
29 06401112 WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95
30 09268100 WMT, PARKING BRAKE HUB Price: $132.95
31 05901704 BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45
32 00548400 RETAINER, .38 PUSH-ON This part replaces 06545100. Price: $1.45
