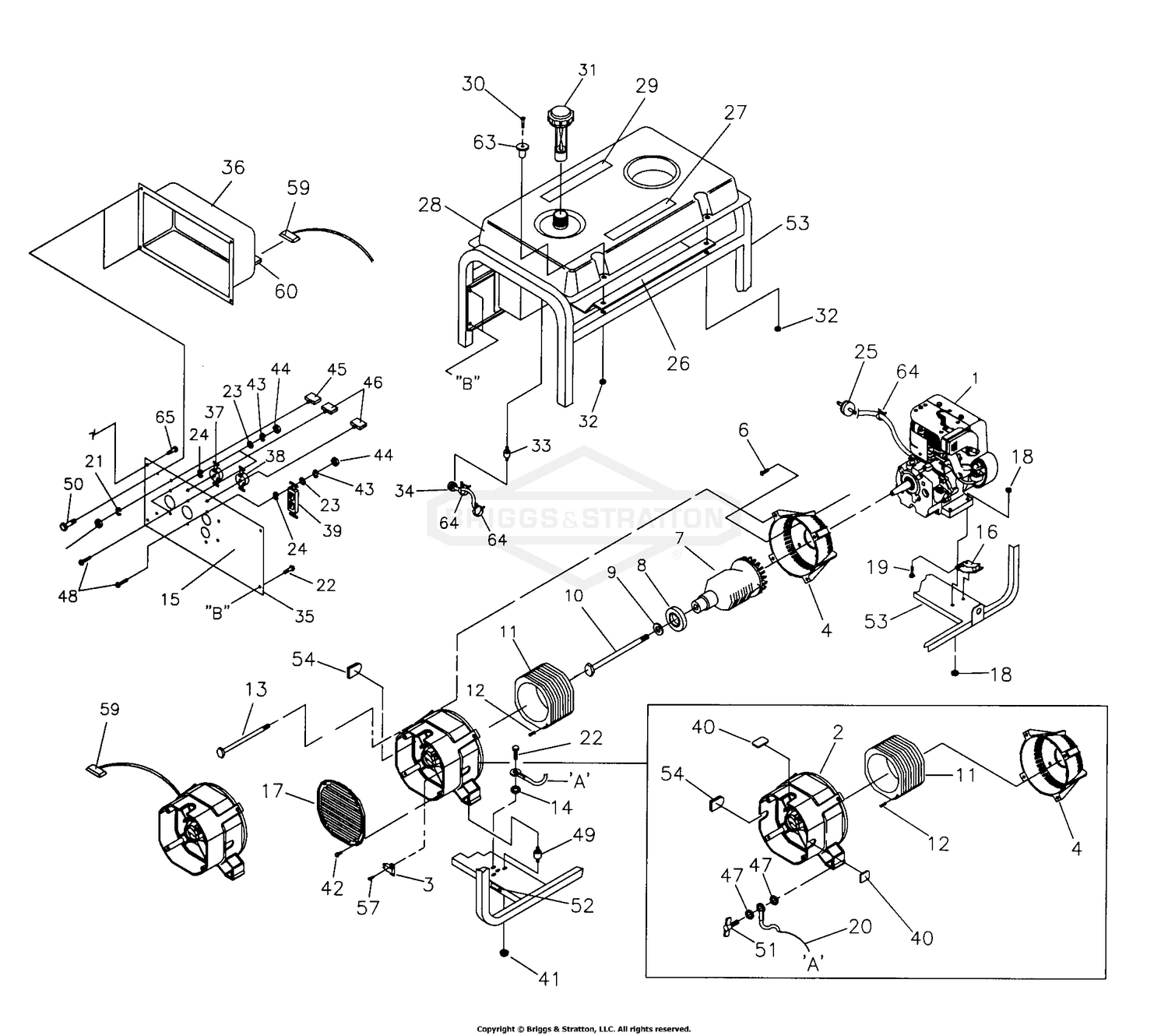

Generator

Generator

Parts (57)

RefPart NumberDescription
1 ~NSP ENGINE Price: Call Us
2 66825B CARRIER, Rear Bearing Price: Call Us
3 91825 ASSEMBLY, Brush & Bridge Rectifier Price: Call Us
4 66365DGS ADPTR, HSNG, 8 HP This part replaces 66365D. Price: $56.99
6 86307GS HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19
7 74716JGS ASSY, RTR, 5000, 105MM DPE This part replaces 74716J. Price: $302.75
8 65791GS BEARING This part replaces 65791. Price: $32.00
9 96796GS WASHER, M8 Flat This part replaces 96796. Price: $2.79
10 75431GS CAPSCREW, Hex Head This part replaces 75431. Price: Call Us
11 B91859J ASSEMBLY, Stator Price: Call Us
12 81917GS PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79
13 86308CGS BOLT, Stator This part replaces 86308C. Price: $4.59
14 22769GS WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49
15 B4225GS DECAL, PNL, CNTRL, PP5000T This part replaces B4225. Price: $13.65
16 70642GS MOUNT, Vibration 45°. This part replaces 70642. Price: $27.27
17 B4871GS COVER, Bearing Carrier This part replaces B4871. Price: $4.15
18 52858GS NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20
19 76222GS PPHMS, M8 - 1.25 x 40 This part replaces 76222. Price: $3.15
20 195373GS WIRE, Ground This part replaces 143-53621. Price: $1.85
21 82881GS WASHER, 7/16" Int Lock This part replaces 82881. Price: Call Us
22 313085GS SCREW This part replaces 86292. Price: $3.35
23 38150GS WASHER This part replaces 38150. Price: $2.49
24 5023365YP TIRE ASSM, 24X12.00-1 This part replaces 23365. Price: $415.73
25 68740GS FILTER, FUEL, 150 MICRN This part replaces 68740. Price: $8.79
26 B84324GS HTSHLD, PWDR CT This part replaces B84324. Price: $25.75
27 194799GS DECAL, Danger This part replaces 92982. Price: $10.48
28 77374 TANK, Gas Plastic 5 Gal. Price: Call Us
29 93826GS DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85
30 78831BGS HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60
31 691677 SCREW This part replaces 94834. Price: $2.99
32 77395GS NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09
33 192980GS Kit, Valve This part replaces 78299. Price: $16.43
34 192980GS Kit, Valve This part replaces 80270. Price: $16.43
35 81897 PANEL, Control Price: Call Us
36 81919GS PANEL, Control, Back, Plastic This part replaces 81919. Price: $109.99
37 705932 OUTLET-120V TL30A This part replaces 68868. Price: $34.97
38 68867GS OUTLET, 120/240V Locking, 20A This part replaces 68867. Price: $43.09
39 68759GS OUTLET, 20A,120V This part replaces 68759. Price: $23.24
40 84242GS GROMMET, Plastic RBC This part replaces 84242. Price: $4.19
41 67989GS NUT, Hex Locking Flange M8 This part replaces 67989. Price: $2.77
42 74908GS TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69
43 22264 WASHER, #8 Lock Price: $8.99
44 51715GS NUT, M4-0.7 Hex This part replaces 51715. Price: $2.30
45 706178 BREAKER-CIRCUIT 30A This part replaces 75207-A. Price: $32.31
46 209872GS BREAKER-CIRCUIT 20A This part replaces 75207. Price: $9.29
48 75475 SCREW, M4 - 0.7 x 10 Pan Head Price: $24.95
49 194153GS MOUNT-VIBRATION This part replaces 85652. Price: $10.54
50 82308GS SCREW, Self Tapping, STC 3 x 18 This part replaces 82308. Price: $2.59
51 86494GS SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51
52 B4986GS DECAL, Ground This part replaces B4986. Price: $2.75
53 AB2265GS CRDL, PWDR CT, RED This part replaces AB2265. Price: $328.85
54 67022GS GROMMET, RUBBER This part replaces 67022. Price: $2.55
57 49815GS HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96
59 22695GS FASTEN, On Tab Housing 6P This part replaces 22695. Price: $3.20
60 22694GS HOUSING, Receptacle This part replaces 22694. Price: $5.44
63 83465GS GROMMET, TANK This part replaces 83465. Price: $3.39
64 48031C CLAMP, Hose - 1/4" Price: Call Us
