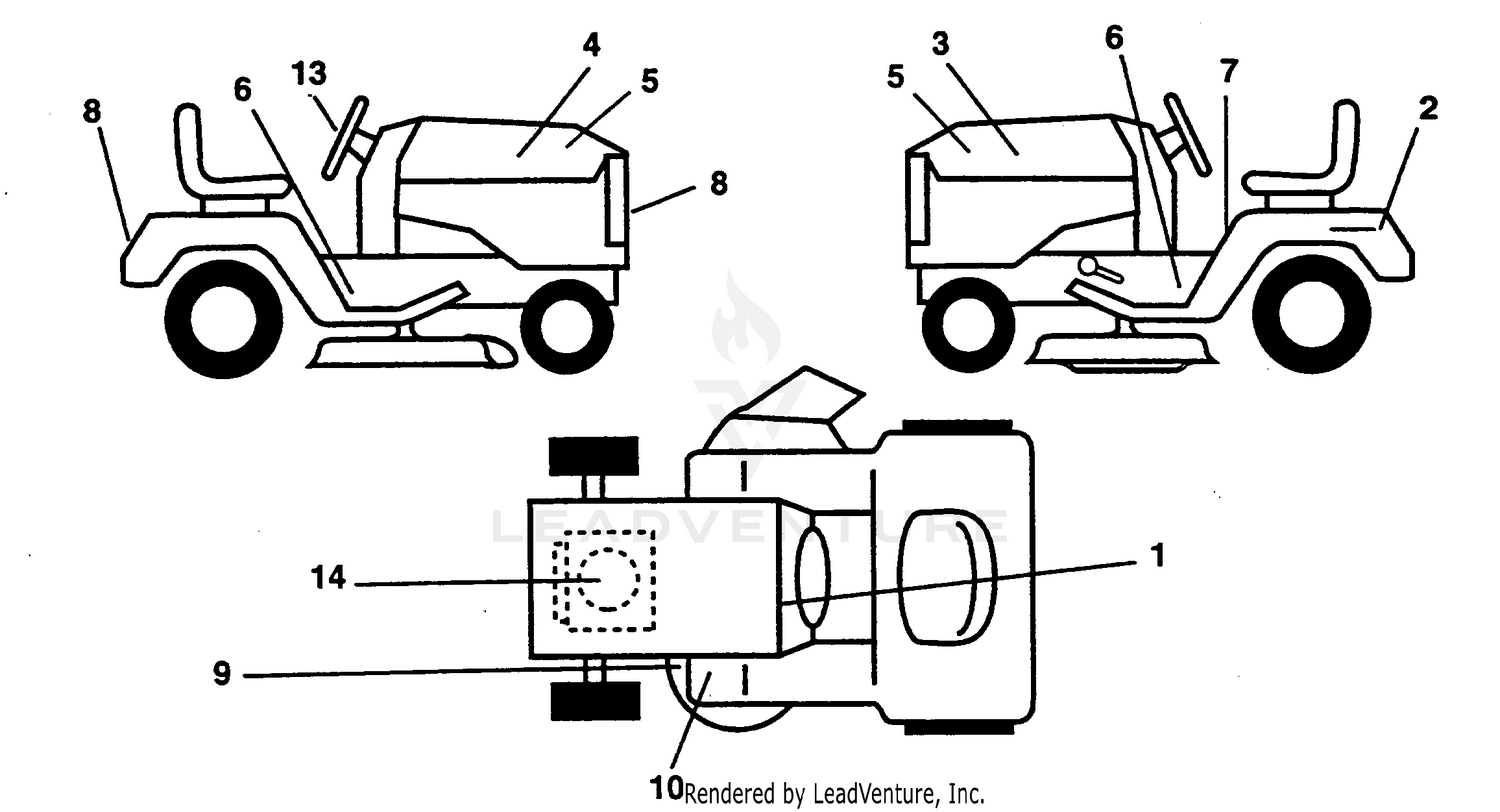

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
532136794 |
Decal Instruction Dash Eng Price: Call Us |
| 2 |
532121549 |
Decal Caution Battery Ger (AYP part number) Price: $6.02 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
532138921 |
Decal Hood Lh Price: Call Us |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
532138920 |
Decal Hood Rh Price: Call Us |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532127033 |
Decal HP Hood (AYP part number) Price: Call Us |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
532131425 |
Decal Speed/Deck Size Chassis Price: Call Us |
| 7 |
532133796 |
Decal Caution (AYP part number) Price: $8.48 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532138922 |
Decal Fender/Grille Price: Call Us |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
532136832 |
Decal V-Belt Schematic (AYP part number) Price: $3.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
532125086 |
Decal Clutch/brake Eng (AYP part number) Price: $3.33 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532138917 |
Decal Strg Wheel Cap Berd/Iois Price: Call Us |
| 14 |
532120601 |
Decal, HP, Engine (AYP part number) Price: $7.00 |
| 15 |
112-1718-01 |
BEDBAR Price: $300.88 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 17 |
137-6091 |
BEDKNIFE-EDGEMAX This part replaces 121-3165. Price: $172.72 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
69-8980 |
WASHER Price: $0.58 |
| 27 |
120-9941 |
BOLT-BEDBAR Price: $13.66 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 34 |
137-8407 |
ES REEL+,5IN FWY(18)11 BLD LD(FSR) This part replaces 133-0112. Price: $767.86 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 39 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
