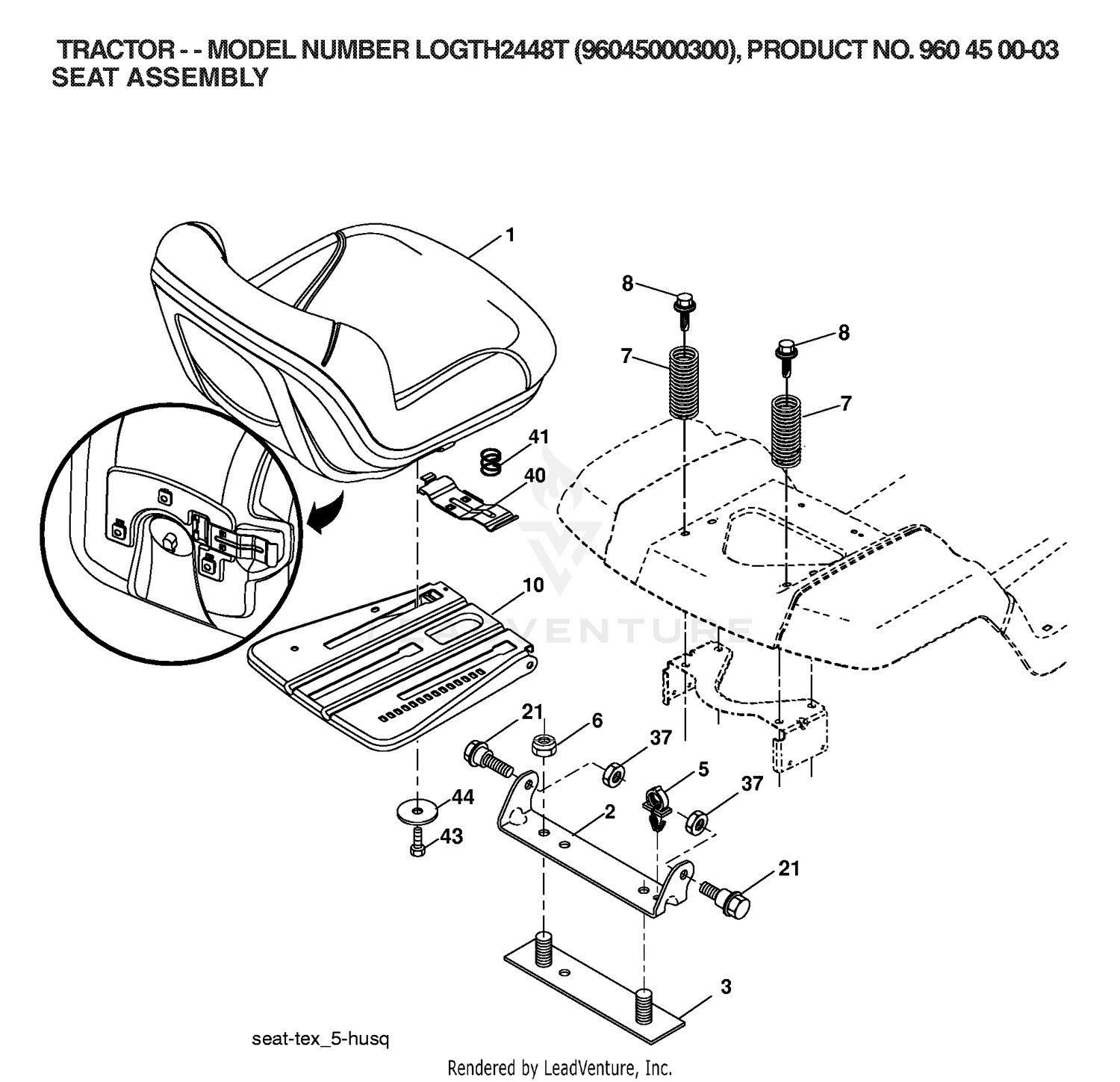

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX This part replaces 532197526. Price: $159.99 |
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 3 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 15 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 34 |
63-5210-01 |
DRIVE SIDE SPDL WA This part replaces 63-5210. Price: $150.53 |
| 35 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 36 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033. Price: $163.75 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
321-4 |
SCREW-HH Price: $0.99 |
| 40 |
93-4438 |
BRACKET WA - SUPPORT Price: $108.32 |
| 41 |
324-10 |
SCREW-HH Price: $1.97 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
