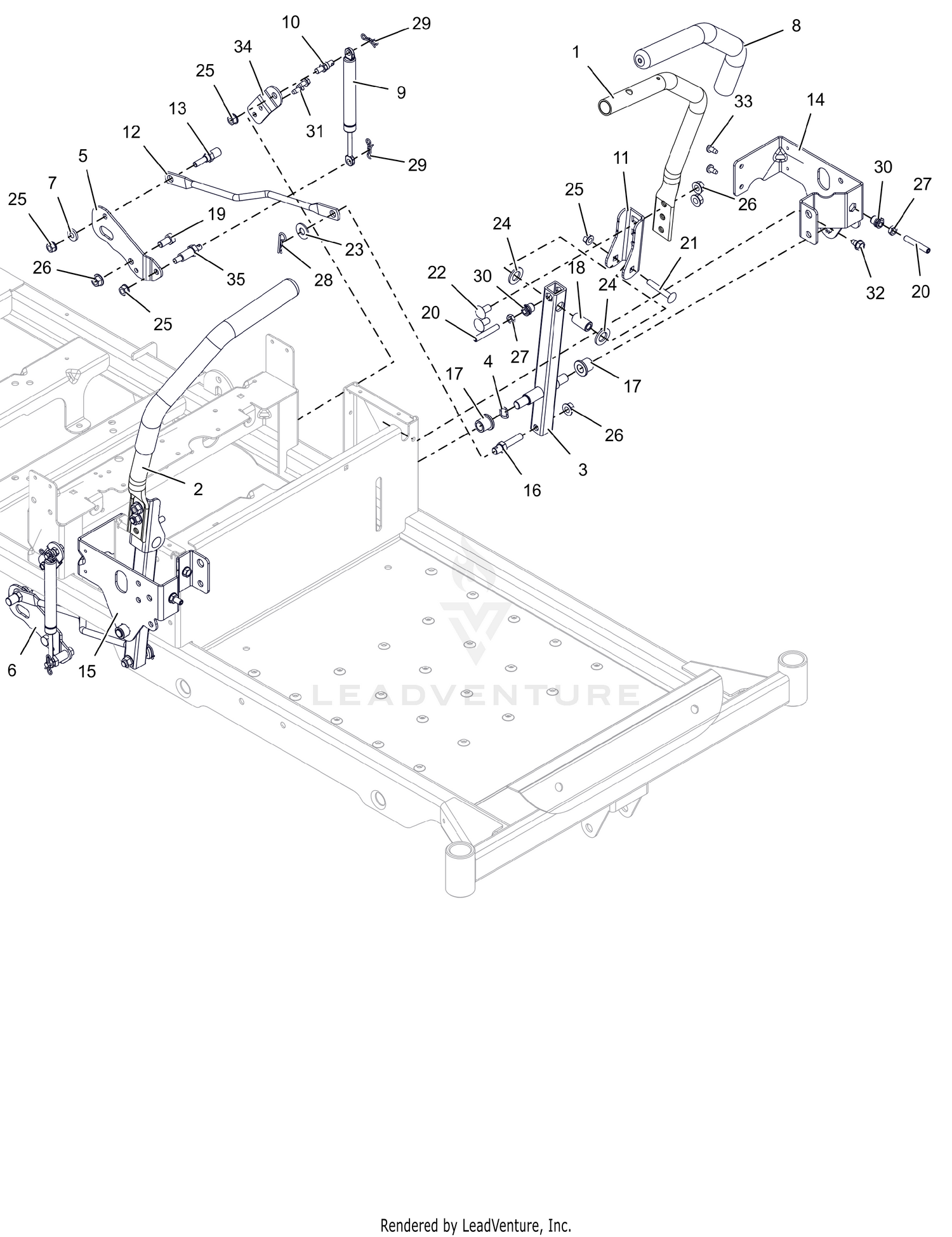

| Ref | Part Number | Description |
|---|
| 1 |
09161651 |
WLDMT, CONTROL HANDLE -LH (BLACK) Price: $33.95 |
| 2 |
09161751 |
WLDMT, CONTROL HANDLE - RH (BLACK) Price: $36.95 |
| 3 |
51586700 |
WLDMT, LOWER CONTROL ARM (BLACK) Price: Call Us |
| 4 |
00325400 |
WAVE WASHER .531X.781X.125FH Price: $0.95 |
| 5 |
03759351 |
PLATE, DAMPER RH Price: $12.45 |
| 6 |
03766051 |
PLATE, DAMPER (LH) Price: $9.45 |
| 7 |
04147200 |
BSHG-FLG .316X.430X.225X.750 Price: $3.45 |
| 8 |
04257400 |
GRIP, HANDLEBAR 15" FOAM Price: $14.45 |
| 9 |
05160400 |
DAMPER, STRAIGHT MOUNT Price: $35.45 |
| 10 |
05171400 |
COUPLER, DAMPER MOUNT Price: $6.45 |
| 11 |
05281951 |
ARM, CONTROL -UPPER (BLACK) Price: $10.45 |
| 12 |
05282400 |
LINKAGE, STEERING Price: $14.45 |
| 13 |
05282500 |
STUD, STEERING LINK-REAR Price: $5.45 |
| 14 |
51539000 |
KIT STEERING BRACKET, LH, EDGE This part replaces 05288151. Price: $26.45 |
| 15 |
51539100 |
KIT STEERING BRACKET, RH, EDGE This part replaces 05288251. Price: $26.45 |
| 16 |
05288400 |
STUD, STEERING LINK -FRONT Price: $3.45 |
| 17 |
05501001 |
BHSG-FLG .500X.750X.750X.125 Price: $4.45 |
| 18 |
05501411 |
BSHG, -SLV .342 X .627 X 1.171 Price: $3.45 |
| 19 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC Price: $1.45 |
| 20 |
06100301 |
SCR-SET, .312-18X2.000 SS Price: $2.45 |
| 21 |
06200431 |
BLT, RHSSN .31-18X2.00 G5 ZCC Price: $3.45 |
| 22 |
06200432 |
BTL,RHSSN .375-16 X 0.75 G5 FPB Price: $3.95 |
| 23 |
06401008 |
WSHR,FLT .438X1.00X.083 ZCC Price: $1.45 |
| 24 |
06401130 |
WSHR, FRICTION Price: $4.45 |
| 25 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 26 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 27 |
06500909 |
NUT-JAM .312-18 G2 ZCC Price: $0.95 |
| 28 |
06700219 |
PIN, HAIR #203 .09X1.50 ZCC Price: $2.45 |
| 29 |
06700229 |
PIN, BOWTIE #72 ZCC Price: $0.95 |
| 30 |
07002402 |
NUT, THREADED INSERT .31-18 ZC120 Price: Call Us |
| 31 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 32 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45 |
| 33 |
07400220 |
SCR, TAP .25-20X.5 PHD TRX ZCC Price: Call Us |
| 34 |
09155951 |
PLATE, DAMPER TOP MOUNTING (BLACK) Price: $10.95 |
