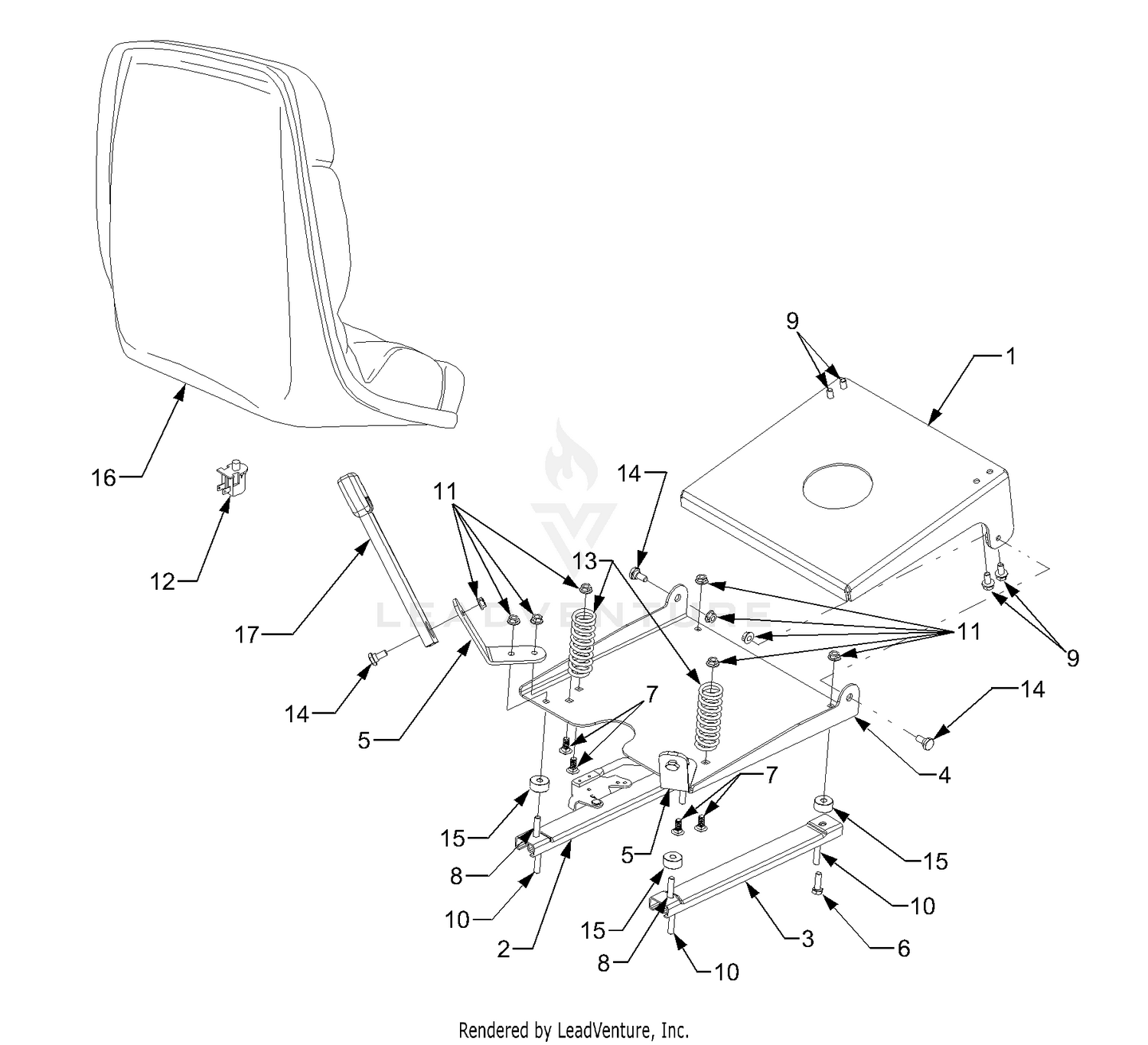

| Ref | Part Number | Description |
|---|
| 1 |
603-0860-0637 |
UPPER SEAT PIVOT BRACKET (POWDER BLACK) Not Available Price: |
| 2 |
603-0866 |
SEAT TRACK ASSEMBLY W/LATCH Not Available Price: |
| 3 |
703-3208 |
Track Ass'y., Seat w/o Latch Price: $64.46 |
| 4 |
703-3681A |
SEAT PIVOT BRACKET Not Available Price: |
| 5 |
703-3711 |
SEAT BELT MOUNTING BRACKET Not Available Price: |
| 6 |
710-0376 |
Screw, Hex Cap, 5/16-18 x 1.0 GR5 Price: $3.66 |
| 7 |
710-0451 |
Screw, Carriage, 5/16-18 x .75 Price: $3.53 |
| 8 |
710-0528 |
Screw, Hex Cap, 5/16-18 x 1.25 GR5 Price: $3.90 |
| 9 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 10 |
710-3250 |
SCREW 5/16-18X1.5 Not Available Price: |
| 11 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 12 |
925-3167 |
Switch, Snap Mount Normally Open (Black) This part replaces 725-3167. Price: $13.53 |
| 13 |
732-3080A |
Spring, Compression, 1.28 x 3.5 Price: $12.91 |
| 14 |
738-0140 |
Screw, Shoulder, .435 x .178-5/16-18 Price: $4.93 |
| 15 |
750-0258 |
Spacer, .315 x .750 x .375 Price: $10.00 |
| 16 |
957-04006 |
EXTRA HIGH BACK SEAT Not Available This part replaces 757-3012. Price: |
| 777D01782 |
LABEL-MADE |
IN USA Not Available Price: 777D01782 |
| 777D04541 |
LABEL-SEAT |
BACK Not Available Price: 777D04541 |
