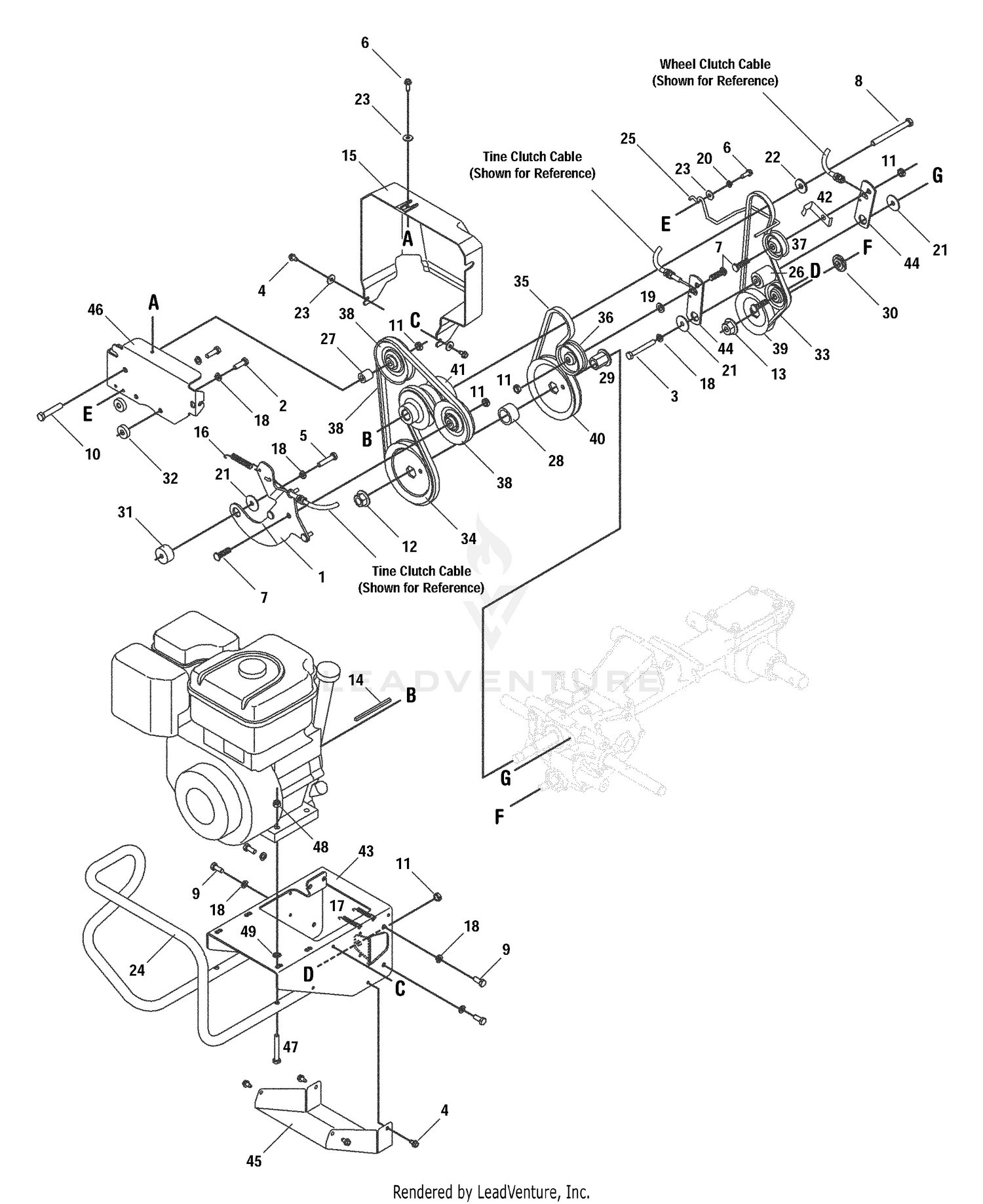

| Ref | Part Number | Description |
|---|
| 1 |
686-04034 |
Bracket Assembly, Clutch Price: Call Us |
| 2 |
710-0888 |
Hex Head Screw, 5/16-24 x 1 This part replaces 710-0117. Price: $3.86 |
| 3 |
710-0378 |
Hex Screw, 5/16-18, 2.50, Gr5 Price: $4.09 |
| 4 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 5 |
710-0624 |
Hex Screw, 5/16-24, 1.50, Gr5 Price: $5.37 |
| 6 |
710-0642 |
Screw, Self-tapping, 1/4-20, 0.750 Price: $4.05 |
| 7 |
710-0723 |
Hex Screw, 3/8-16, 1.25, Gr5 Price: $4.04 |
| 8 |
710-0902 |
Hex Screw, 3/8-24, 3.75, Gr5 Price: $6.99 |
| 9 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 10 |
710-3144 |
Hex Screw, 3/8-16, 2.00, Gr5 Price: $4.02 |
| 11 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 12 |
712-0700 |
Nut, Flange, 9/16-18, Gr2 Price: $10.12 |
| 13 |
912-0702 |
Flange Nut, 7/16-20 This part replaces 712-0702. Price: $16.10 |
| 14 |
714-04032 |
Key, Sq,.1875 x 3.625 Price: Call Us |
| 15 |
731-04590 |
Cover, Belt Price: Call Us |
| 16 |
932-0320 |
Extension Spring, .38 x 3.25 This part replaces 732-0320. Price: $8.98 |
| 17 |
732-0545 |
EXTENSION SPRING Not Available Price: |
| 18 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 19 |
736-0185 |
Washer, Flat,.375 x.738 x.063 Price: $3.43 |
| 20 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 21 |
736-0362 |
Washer, Flat,.330 x 1.25 x.06, Ht Price: $3.93 |
| 22 |
736-0452 |
Washer, Bell,.396 x 1.140 x.095 Price: $4.05 |
| 23 |
736-3090 |
Washer, Flat,.260 x.720 x.060 Price: $5.79 |
| 24 |
1918749 |
Bumper Price: Call Us |
| 25 |
747-04191 |
Keeper, Belt Price: Call Us |
| 26 |
750-04221 |
Spacer,.330 x 1.25 x 1.605 Price: Call Us |
| 27 |
750-04223 |
Spacer,.390 x.750 x.812 Price: Call Us |
| 28 |
750-04225 |
Spacer, 1.030 x 1.375 x.830 Lg Price: Call Us |
| 29 |
750-04258 |
Hub, Pulley, Input, 5/8 Price: Call Us |
| 30 |
750-04259 |
Hub, Pulley, Input, 1/2 Price: Call Us |
| 31 |
750-04261 |
Spacer,.330 x 1.250 x.845 Price: Call Us |
| 32 |
750-0943 |
Spacer.33 x 1.0 OD Price: Call Us |
| 33 |
954-0346 |
V - Belt This part replaces 754-0346. Price: $26.67 |
| 34 |
954-04036 |
BELT Not Available This part replaces 754-04036. Price: |
| 35 |
954-04056 |
V-BELT 4L x 25.475 LG Not Available This part replaces 754-04056. Price: |
| 36 |
756-0137 |
FLAT IDLER PULLEY-2 1/4 OD X Not Available Price: |
| 37 |
756-0313 |
Pulley, Idler, Flat 1.88 OD Price: $24.48 |
| 38 |
956-0399 |
V-Pulley, 3.5 OD This part replaces 756-0399. Price: $44.54 |
| 39 |
756-04081 |
Pulley, 3l, 3.088 Eff Dia Price: Call Us |
| 40 |
756-04082 |
Pulley, 4l, 5.0 Eff Dia Price: Call Us |
| 41 |
756-04090 |
Pulley, Engine, 3 Belt Price: Call Us |
| 42 |
786-0149 |
Keeper, Belt, Idler Price: $8.55 |
| 43 |
786-04177 |
Frame, Engine Price: Call Us |
| 44 |
786-04178 |
Bracket, Clutch, Forward Price: Call Us |
| 45 |
786-04180 |
Cover, Bottom, Frame, Engine Price: Call Us |
| 46 |
786-04182 |
Bracket, Mounting, Cover, Belt Price: Call Us |
| 47 |
710-0395 |
Hex Screw, 5/16-18, 2.25, Gr5 Price: $4.08 |
| 48 |
712-0429 |
Nut, Hex Lock, 5/16-18, Gr5, Nylon Price: $3.56 |
