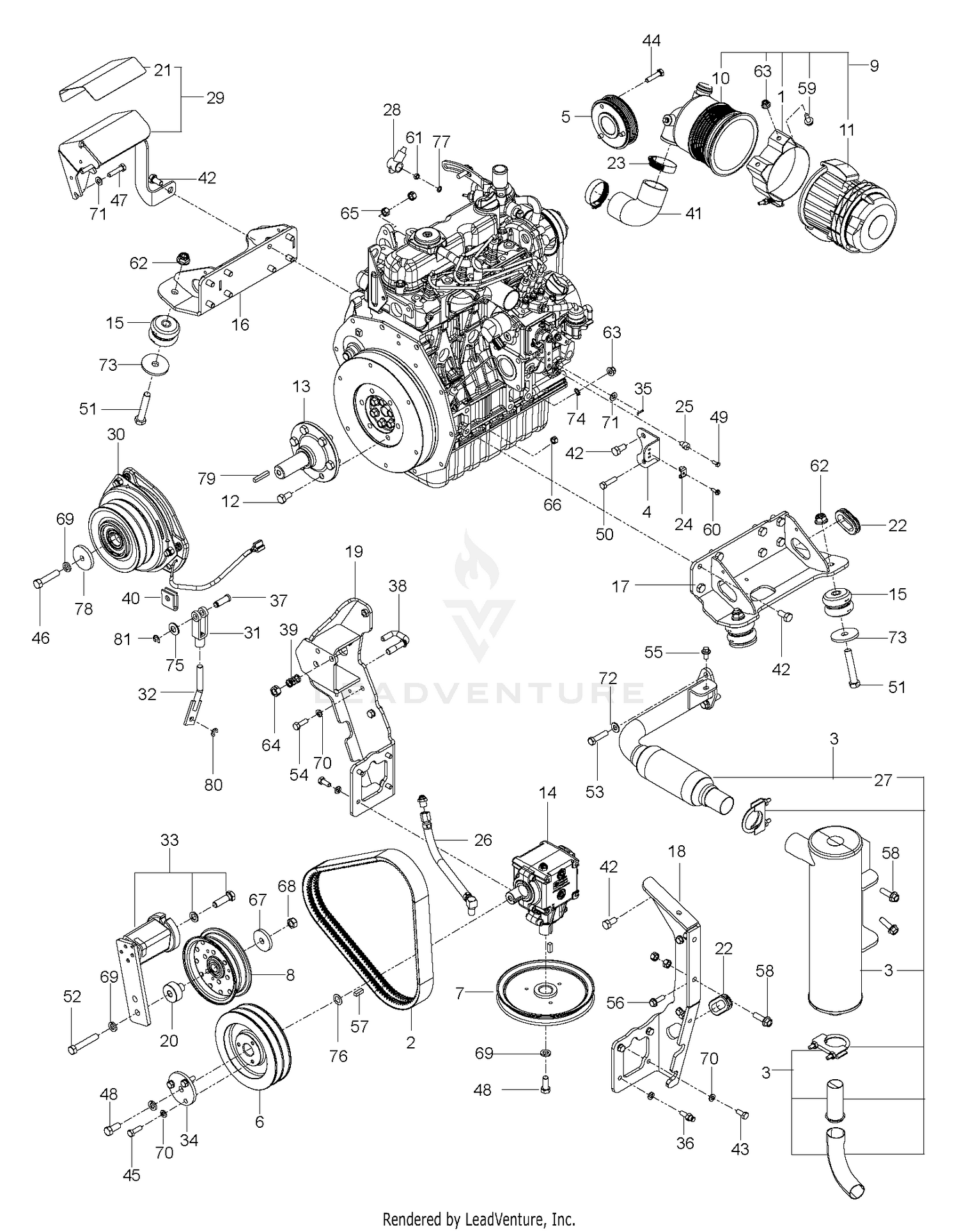

| Ref | Part Number | Description |
|---|
| 1 |
539108474 |
MOUNTING BRACKET Price: $29.99 |
| 2 |
574804101 |
BELT, CLUTCH Price: $99.99 |
| 3 |
575244505 |
KIT.SPARK.ARRESTER Price: $49.99 |
| 4 |
522545201 |
BRACKET, THROTTLE Price: $13.99 |
| 5 |
515989601 |
PULLEY, CRANK Price: $64.99 |
| 6 |
574753301 |
PULLEY, GEAR BOX Price: $282.99 |
| 7 |
515997601 |
PULLEY, DRIVE, DECK Price: $64.99 |
| 8 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 9 |
539106376 |
AIR FILTER ASSY - NON-TURBO Price: $299.99 |
| 10 |
539108470 |
BODY - 90 DEG Price: $249.99 |
| 11 |
539108473 |
PRECLEANER ASM Price: $150.99 |
| 12 |
575244501 |
MUFFLER.DIESEL.KUBOTA Price: $599.99 |
| 13 |
574890701 |
SHAFT, PILOT Price: $179.99 |
| 14 |
575509401 |
GEAR BOX, 90 DEGREE Price: $699.99 |
| 15 |
515990102 |
ISOLATOR, ENGINE Price: $49.99 |
| 16 |
515989002 |
MOUNT, MOTOR, LT - BLK Price: $102.99 |
| 17 |
515988802 |
MOUNT, MOTOR, RT - BLK Price: $102.99 |
| 18 |
574888203 |
MOUNT, GEAR BOX, BLK Price: $129.99 |
| 19 |
574751402 |
MOUNT, GEAR BOX, BLK Price: $279.99 |
| 20 |
574394201 |
MOUNT, IDLER Price: $17.99 |
| 21 |
574480601 |
SHIELD, HEAT BARRIER Price: $21.99 |
| 22 |
539103684 |
GROMMET Price: $3.99 |
| 23 |
539106384 |
CLAMP Price: $3.99 |
| 24 |
522752701 |
CLAMP, CABLE Price: $9.99 |
| 25 |
522545301 |
SWIVEL, THROTTLE Price: $10.99 |
| 26 |
575804901 |
HOSE, VENT Price: $16.99 |
| 27 |
575244503 |
PIPE, MANIFOLD, DIESEL Price: $229.99 |
| 28 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 29 |
575420403 |
SHIELD, HEAT Price: $80.99 |
| 30 |
574804001 |
CLUTCH, OGURA, DIESEL Price: $599.99 |
| 31 |
574803901 |
YOKE, CLEVIS Price: $12.99 |
| 32 |
574803801 |
LINKAGE, ANTI-ROTATION Price: $64.99 |
| 33 |
574804301 |
TENSIONER, LOVEJOY, SE27 Price: $109.99 |
| 34 |
574890401 |
PLATE, PULLEY Price: $11.99 |
| 35 |
539990555 |
COTTER PIN 3/32 X 1/2 Price: $1.99 |
| 36 |
574804501 |
PIN, PIVOT Price: $24.99 |
| 37 |
596919401 |
Pins This part replaces 510090101. Price: $4.99 |
| 38 |
574890601 |
PIN, DETENT Price: $31.99 |
| 39 |
574890501 |
SPRING, COMPRESSION Price: $9.99 |
| 40 |
575699401 |
SPACER, RUBBER Price: $17.99 |
| 41 |
515990401 |
HOSE, AIR INTAKE Price: $22.99 |
| 42 |
522453101 |
HCS M10-1.25 X 20 GR 8.8 ZD Price: $4.99 |
| 43 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539990206. Price: $3.99 |
| 44 |
521998801 |
HCS MB 1.25 X 35 GR 8.8 ZD Price: $1.99 |
| 45 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 46 |
539111990 |
HCS 7/16-20 X 2 G8 ZN Price: $2.99 |
| 47 |
539977692 |
HTB M8-1.125 X 25MM Price: $0.66 |
| 48 |
539124775 |
SCREW 7/16-20 X 1 HHB GR5 Price: $6.99 |
| 49 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 50 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 51 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 52 |
539110065 |
HCS 7/16-20 X 2-3/4 Price: $3.99 |
| 53 |
539990655 |
HCS 3/8C X 1 1/2 Price: $3.99 |
| 54 |
539115578 |
M8X1.25X25 HHB GR8.8 Price: $2.99 |
| 55 |
539122388 |
SCREW M8X1.25X16 HHB GR 8.8 Price: $2.99 |
| 56 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539115648. Price: $2.99 |
| 57 |
539102067 |
KEY 1/4 SQ X 3/4 Price: $2.99 |
| 58 |
525834202 |
Screws This part replaces 525834201. Price: $3.99 |
| 59 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 60 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 61 |
539117980 |
NUT M6 X 1.0 HEX Price: $2.99 |
| 62 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 63 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 64 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 65 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 66 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 67 |
573975201 |
NUT, 7/16-20 HEX NYLOC ZC Price: $2.99 |
| 68 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 69 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 70 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 71 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 72 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 74 |
539109556 |
WASHER 5/16 EXT STAR Price: $2.99 |
| 75 |
539110656 |
WASH 1/2 X 1 SPRG STL & NEOP Price: $3.99 |
| 76 |
539115610 |
WASHER .515 X .874 X .031 Price: $2.99 |
| 77 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 78 |
539125626 |
BLADE WASHER Price: $6.99 |
| 79 |
539109161 |
KEY 1/4 SQ X 1-1/2 Price: $2.99 |
| 80 |
539990870 |
E RING 3/8" Price: $2.99 |
| 81 |
522705201 |
RING, E, 7/16 Price: $2.99 |
