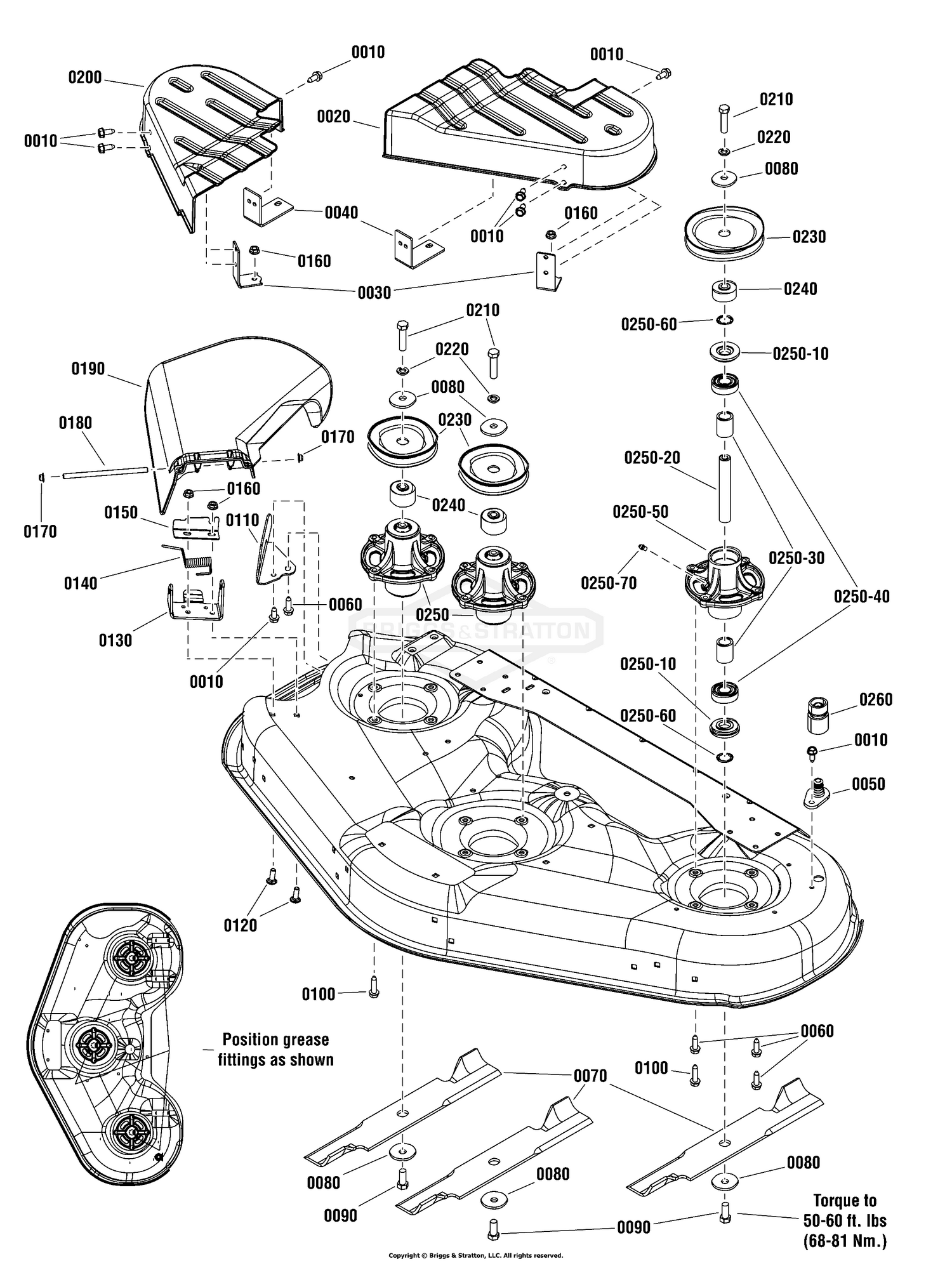

| Ref | Part Number | Description |
|---|
| 0020 |
7104697YP |
COVER, Spindle, 46/52 Deck, LH 285Z Price: $51.59 |
| 0030 |
7301134BMYP |
BRACKET, 46 / 52 Cover Mounting Price: $15.29 |
| 0040 |
7301133BMYP |
BRACKET, Rear Deck Cover Support 285Z Price: $13.15 |
| 0050 |
1687721YP |
KIT, WASHOUT PORT This part replaces 1735716YP. Price: $12.24 |
| 0060 |
704146 |
SCREW, HEX, 5/16-18X1 This part replaces 1960373SM. Price: $3.40 |
| 0070 |
1737228BZYP |
BLADE, Mower, 16.125 Long This part replaces 1737228YP. Price: $19.52 |
| 0080 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0090 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0110 |
1737279BMYP |
BAFFLE, Pinchoff Price: $16.09 |
| 0115 |
1687762YP |
HOUSING, 46" Mower - Frame Hung, Red Price: $714.54 |
| 0120 |
704065 |
BOLT, 5/16-18X.875 This part replaces 1931334SM. Price: $3.61 |
| 0130 |
1736365BMYP |
PIVOT, HINGE Price: $11.01 |
| 0140 |
1736364YP |
SPRING, Torsion, Deflector, 2.16 LG, 46 Mwr Price: $7.27 |
| 0150 |
1737359BMYP |
PLATE, Deflector Closeoff Price: $7.27 |
| 0170 |
704028 |
PUSHNUT, CAP, 5/16 This part replaces 7012542YP. Price: $4.59 |
| 0180 |
1736366YP |
ROD, Deflector, Clear/Zinc Price: $10.54 |
| 0190 |
1687750YP |
DEFLECTOR, Discharge, Plastic 46/52 Decks This part replaces 1735447YP. Price: $34.49 |
| 0200 |
7104696YP |
COVER, Spindle, 46/52 Deck RH 285Z Price: $51.59 |
| 0220 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 1918199SM. Price: $3.94 |
| 0230 |
1735686YP |
PULLEY, 4.6 OD, 11 GA Split 46 Mower Price: $18.02 |
| 0240 |
1736445YP |
SPACER, Pulley, Powdered Metal Price: $12.47 |
| 0250 |
84003175 |
ARBOR ASSEMBLY This part replaces 7502226YP. Price: $93.65 |
