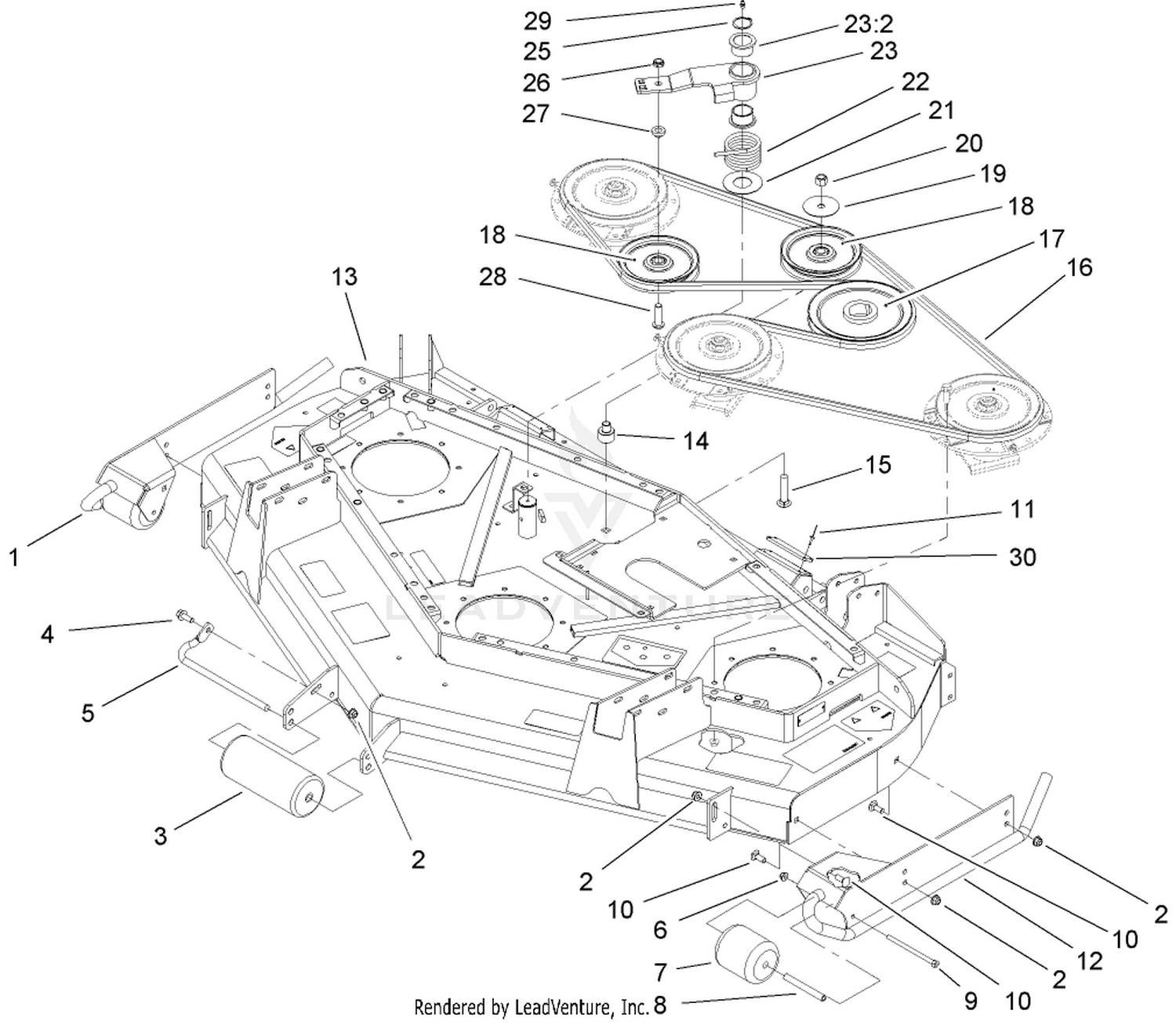

| Ref | Part Number | Description |
|---|
| 1 |
100-5605-01 |
RH SKID ASM Price: $188.25 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
68-6710 |
ROLLER Price: $59.98 |
| 4 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 5 |
68-6840 |
SHAFT-ROLLER Price: $64.07 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
93-4803 |
ROLLER-DECK Price: $41.58 |
| 8 |
105-4549 |
SPACER-ROLLER Price: $10.26 |
| 9 |
322-29 |
SCREW-HH Price: $2.69 |
| 10 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 11 |
3269-24 |
RIVET Price: $1.79 |
| 12 |
100-5612-01 |
LH SKID ASM Price: $188.25 |
| 13 |
107-7261 |
DECK AND DECAL ASM Price: $4,708.52 |
| 14 |
108-1908 |
SPACER-IDLER Price: $23.93 |
| 15 |
3233-34 |
SCREW-CARR Price: $7.98 |
| 16 |
107-4788 |
BELT-HEX Price: $178.28 |
| 17 |
107-4767 |
PULLEY Price: $234.90 |
| 18 |
140-5847 |
PULLEY-IDLER This part replaces 01-268-0160. Price: $98.46 |
| 19 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 20 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 21 |
108-1926 |
WASHER Price: $5.30 |
| 22 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 23 |
140-7078 |
IDLER ARM ASM This part replaces 108-1930. Price: $49.85 |
| 25 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 26 |
3296-45 |
NUT-HEX Price: $3.79 |
| 27 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 28 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
