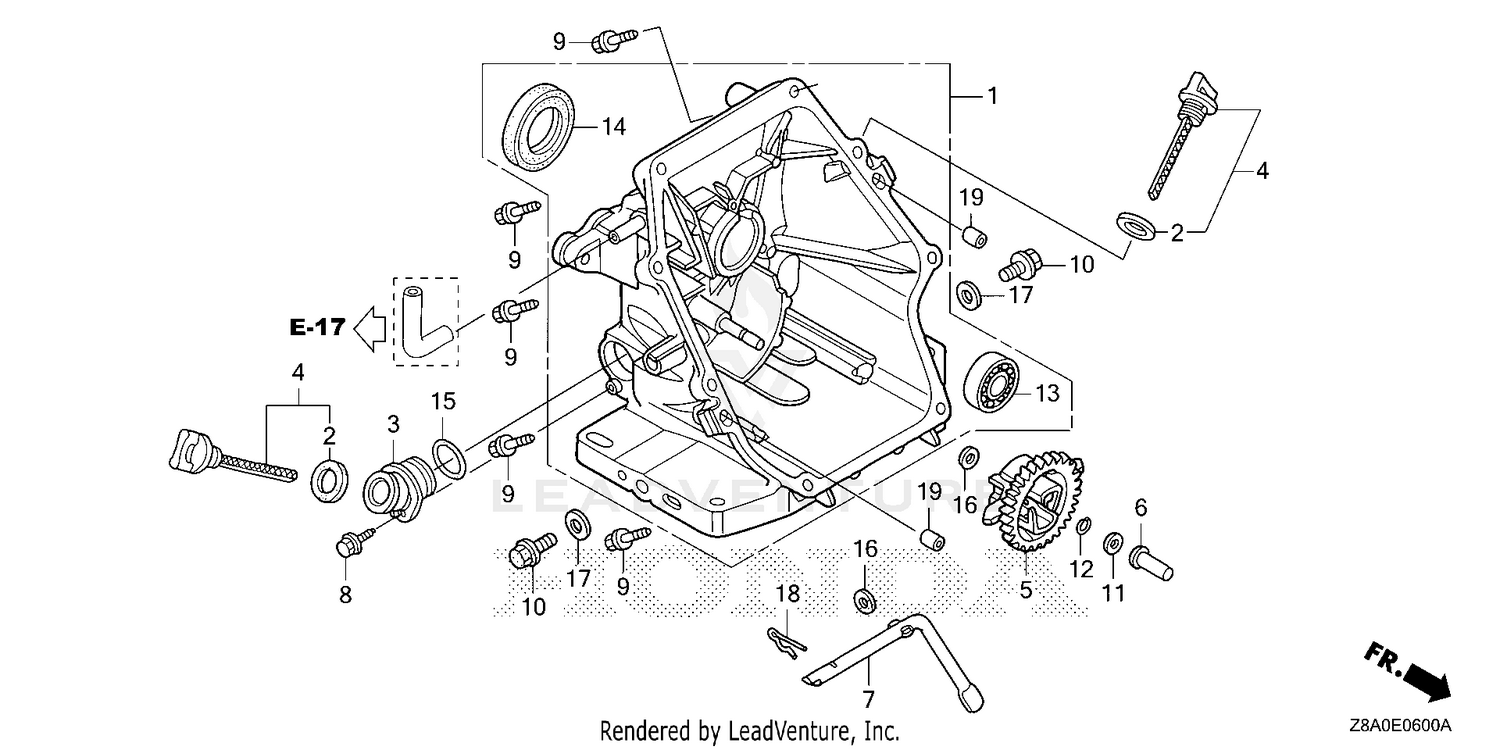

| Ref | Part Number | Description |
|---|
| 1 |
11300-ZL8-660 |
COVER ASSY., CRANKCASE (U-TYPE) Price: $106.14 |
| 2 |
15625-Z2L-801 |
GASKET, OIL FILLER CAP (NOT AVAILABLE) Price: $2.44 |
| 4 |
15650-ZL8-013 |
SEE PART DETAILS - PRI; GAUGE ASSY., OIL LEVEL Price: $5.22 |
| 5 |
16510-ZL8-000 |
GOVERNOR ASSY. Price: $11.88 |
| 6 |
16531-Z8B-000 |
SLIDER, GOVERNOR Price: $4.06 |
| 7 |
16541-Z8A-000 |
SHAFT, GOVERNOR ARM Price: $0.90 |
| 9 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
| 10 |
90131-896-650 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231). Price: $2.76 |
| 11 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 12 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 13 |
91001-ZL8-003 |
BEARING, RADIAL BALL (62/28) Price: $28.50 |
| 14 |
91202-ZL8-003 |
OIL SEAL (28X41.25X6) (Honda Code 5581046). Price: $7.28 |
| 16 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 17 |
94109-12000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868). Price: $1.54 |
| 18 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
