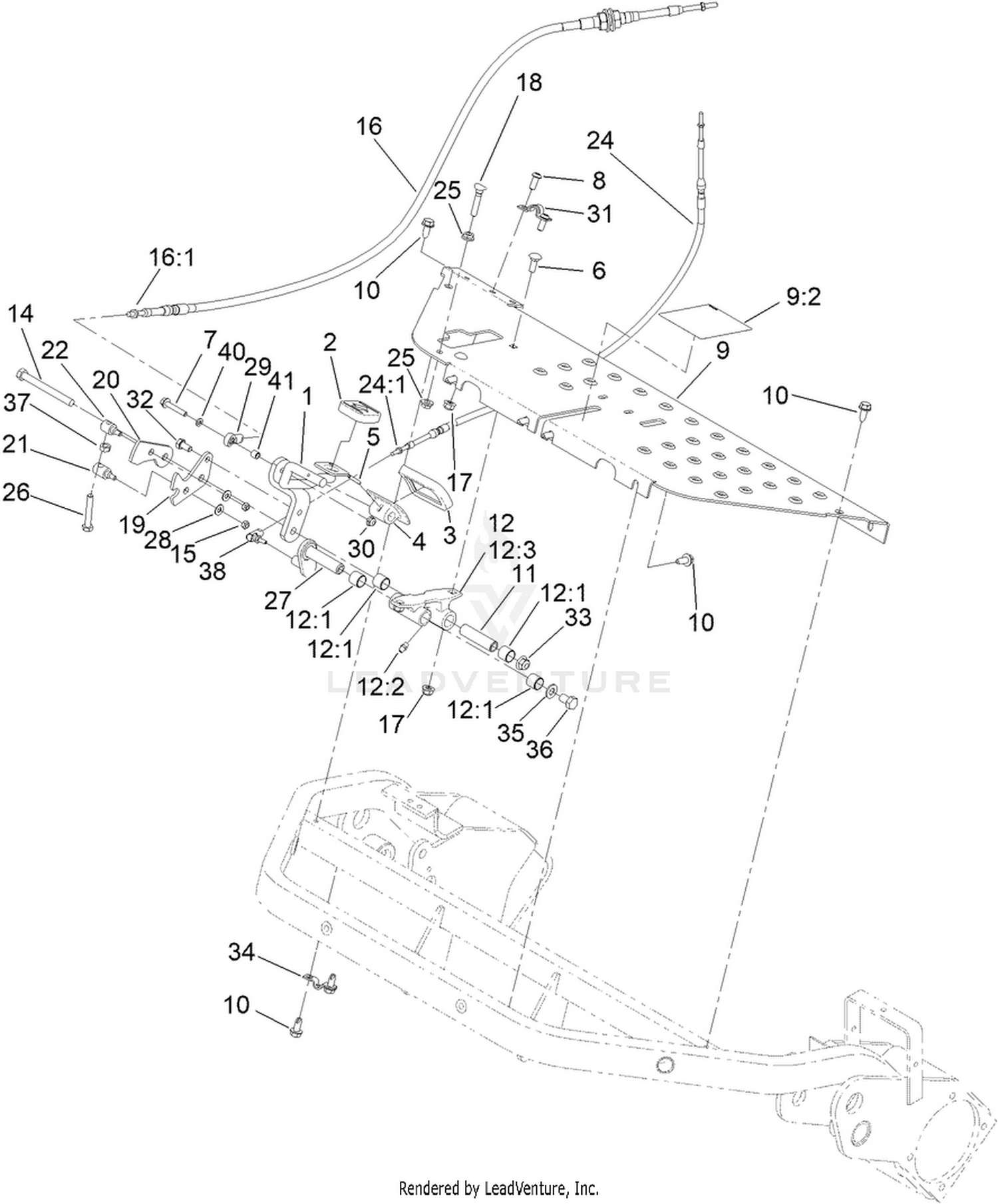

| Ref | Part Number | Description |
|---|
| 1 |
93-2085-01 |
ROD ASM Price: $134.61 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 6 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 7 |
94-5781 |
SCREW-HHF Price: $4.47 |
| 8 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 9 |
136-8570 |
PLATE-FLOOR Price: $192.07 |
| 10 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 11 |
94-1371 |
SPACER Price: $14.81 |
| 12 |
140-6163 |
PIVOT PEDAL ASM Price: $39.11 |
| 14 |
325-14 |
SCREW-HH This part replaces 323-42. Price: $2.64 |
| 15 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 16 |
145-4566 |
CABLE-TRACTION CONTROL Price: $195.81 |
| 17 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 18 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 19 |
94-1373 |
BRACKET-LOCK Price: $24.82 |
| 20 |
94-1372 |
BRACKET-MOW Price: $18.44 |
| 21 |
94-1375 |
TRUNNION-BRACKET, LOCK Price: $23.45 |
| 22 |
94-1374 |
TRUNNION-BRACKET, MOW Price: $14.18 |
| 24 |
94-1304 |
CABLE-LOCK, NEUTRAL Price: $153.45 |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
94-3489 |
SCREW-HH Price: $1.70 |
| 27 |
140-6108 |
PIN-FLAG, NEUTRAL LOCK Price: $31.21 |
| 28 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 29 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 30 |
104-7201 |
NUT-HF Price: $0.69 |
| 31 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 32 |
33114-016 |
SCREW-HH Price: $0.27 |
| 33 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 34 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
33115-016 |
SCREW-HH Price: $0.75 |
| 37 |
33014-00 |
NUT-HEX Price: $0.25 |
| 38 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 40 |
33093-00 |
WASHER-FLAT Price: $0.70 |
