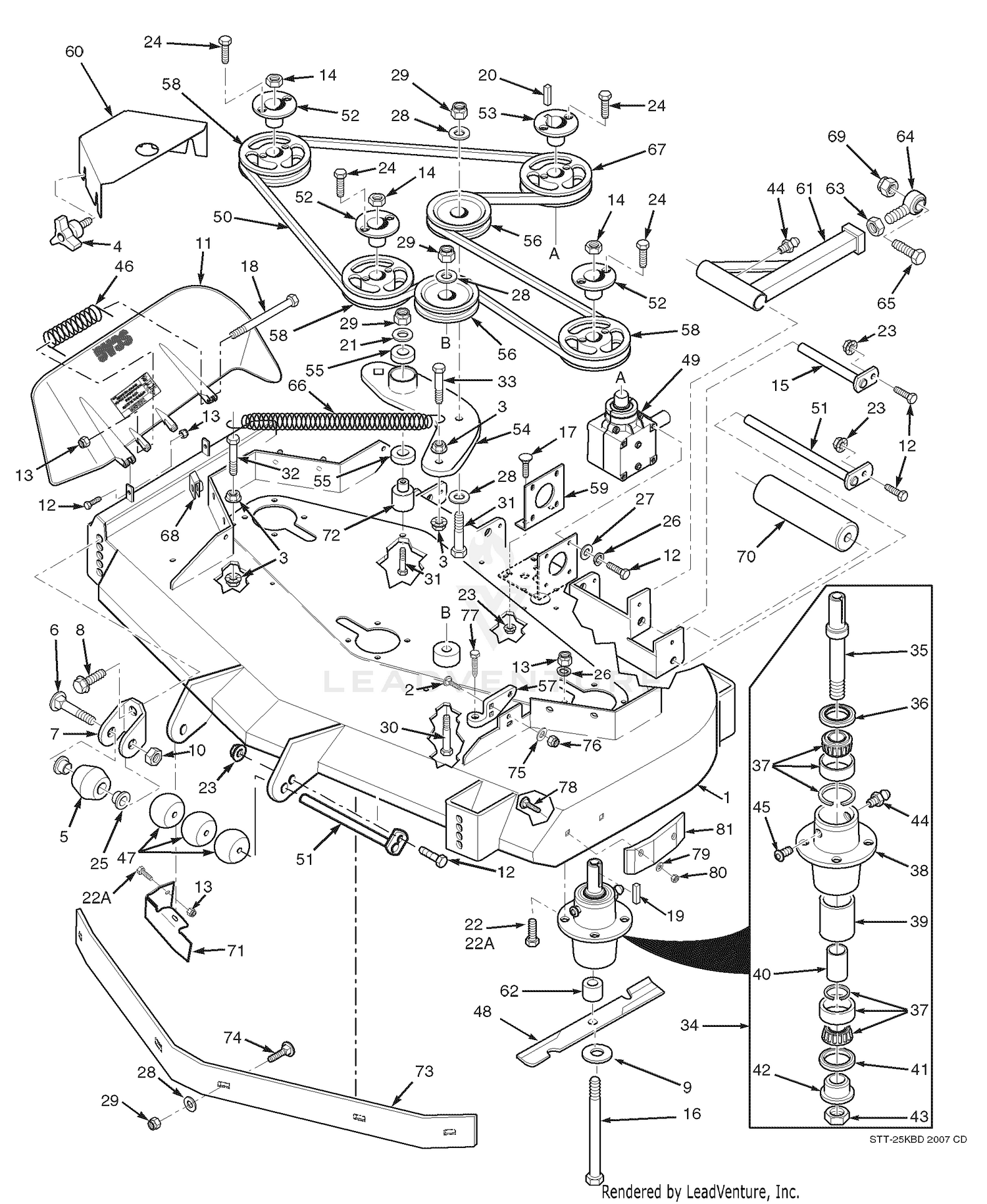

| Ref | Part Number | Description |
|---|
| 1 |
462410 |
Cutter Deck Velocity Plus This part replaces 461863. Price: Call Us |
| 2 |
04003-40 |
Bolt, Carriage 7/16-14 x 1-1/4" Price: Call Us |
| 3 |
04019-04 |
Nut, Hex Serrated Flange 3/8-16 Price: Call Us |
| 4 |
481625-01 |
Wing nut, 3/8-16 Price: Call Us |
| 5 |
481632 |
Anti-Scalp Wheel Price: Call Us |
| 6 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 7 |
422478 |
Anti-Scalp Wheel Bracket Price: Call Us |
| 8 |
04017-27 |
Bolt, Hex Serrated Flange 3/8-16 x 1" Price: Call Us |
| 9 |
04043-06 |
Flatwasher, 5/8" Hardened Price: Call Us |
| 10 |
04021-05 |
Locknut, 3/8-16 Center Lock Price: Call Us |
| 11 |
461846 |
Discharge Chute Price: Call Us |
| 12 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-3/4" - Front Price: Call Us |
| 13 |
04021-22 |
Nut, Hex Elastic Stop 5/16-18 Grade 8 Price: Call Us |
| 14 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 15 |
451240 |
Push Arm Shaft Price: Call Us |
| 16 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 17 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 18 |
04001-108 |
Bolt, Hex Head 5/16-18 x 4-1/2" Price: Call Us |
| 19 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 20 |
04063-01 |
Key, 1/4 x 1/4 x 1-1/4" Price: Call Us |
| 21 |
04043-04 |
Flatwasher,3/8-.39 x .938 x .105 HD Price: Call Us |
| 22 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 23 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 24 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1” Grade 8 Price: Call Us |
| 25 |
48100-15 |
Bushing, .376 I.D. Oilite Price: Call Us |
| 26 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 29 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 30 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 31 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 32 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 33 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 34 |
461663 |
Spindle Assembly Price: Call Us |
| 35 |
43589 |
Spindle Shaft Price: Call Us |
| 36 |
481024 |
Seal, Top Price: Call Us |
| 37 |
481022 |
Bearing Assembly Price: Call Us |
| 38 |
43644 |
Spindle Housing Price: Call Us |
| 39 |
43312 |
Spacer, Outside Price: Call Us |
| 40 |
43296 |
Spacer, Inside Price: Call Us |
| 41 |
481025 |
Seal, Bottom Price: Call Us |
| 42 |
43297 |
Spindle Bushing, Bottom Price: Call Us |
| 43 |
481035 |
Nut, Special 1 - 1/16-18 Price: Call Us |
| 44 |
48114-04 |
Grease Fitting Price: Call Us |
| 45 |
48677 |
Relief Fitting, Tapered Spindle Price: Call Us |
| 46 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 47 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 48 |
482879 |
Cutter Blade, 21" (61H) Price: Call Us |
| 49 |
482486 |
Gearbox Assembly, Deck Drive Price: Call Us |
| 50 |
481558 |
Belt, Cutter Deck Drive Price: Call Us |
| 51 |
45944 |
Roller Shaft Price: Call Us |
| 52 |
48926 |
Tapered Hub, 1-1/8" Bore Price: Call Us |
| 53 |
48141 |
Tapered Hub, 1" Bore Price: Call Us |
| 54 |
461842 |
Idler Arm, Cutter Deck Price: Call Us |
| 55 |
48224 |
Bearings, Ball Price: Call Us |
| 56 |
483215 |
Pulley, Idler Price: Call Us |
| 59 |
422426 |
Mounting Plate, Gearbox Price: Call Us |
| 60 |
424325 |
Belt, Cover Price: Call Us |
| 62 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 63 |
04020-16 |
Nut, Hex Head 5/8-18 UNF Price: Call Us |
| 64 |
48763 |
Rod End, 5/8" Male RH Thread Price: Call Us |
| 65 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 66 |
483704 |
Spring, Cutter Deck This part replaces 481597. Price: Call Us |
| 67 |
482746 |
Pulley, 6.75 O.D. Price: Call Us |
| 68 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 69 |
04021-13 |
Nut, Hex Elastic Stop 5/8-11 Price: Call Us |
| 70 |
48038 |
Wheel, Anti-Scalp Price: Call Us |
| 71 |
424209 |
Discharge Baffle 61V Price: Call Us |
| 72 |
43503 |
Pivot, Idler - Short Price: Call Us |
| 73 |
424841 |
Baffle, Flange - 61V This part replaces 424164. Price: Call Us |
| 74 |
04003-23 |
Bolt, Carriage 3/8-16 x 1” Price: Call Us |
| 75 |
04040-11 |
Flatwasher, 7/16-.500 x 1.25 x .083 Price: Call Us |
| 76 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 77 |
483167 |
Bolt, Deck Adjust Price: Call Us |
| 78 |
04003-12 |
Bolt, Carraige 5/16-18 x 3/4” Price: Call Us |
| 79 |
04040-04 |
Flatwasher, 5/16” Price: Call Us |
| 80 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
