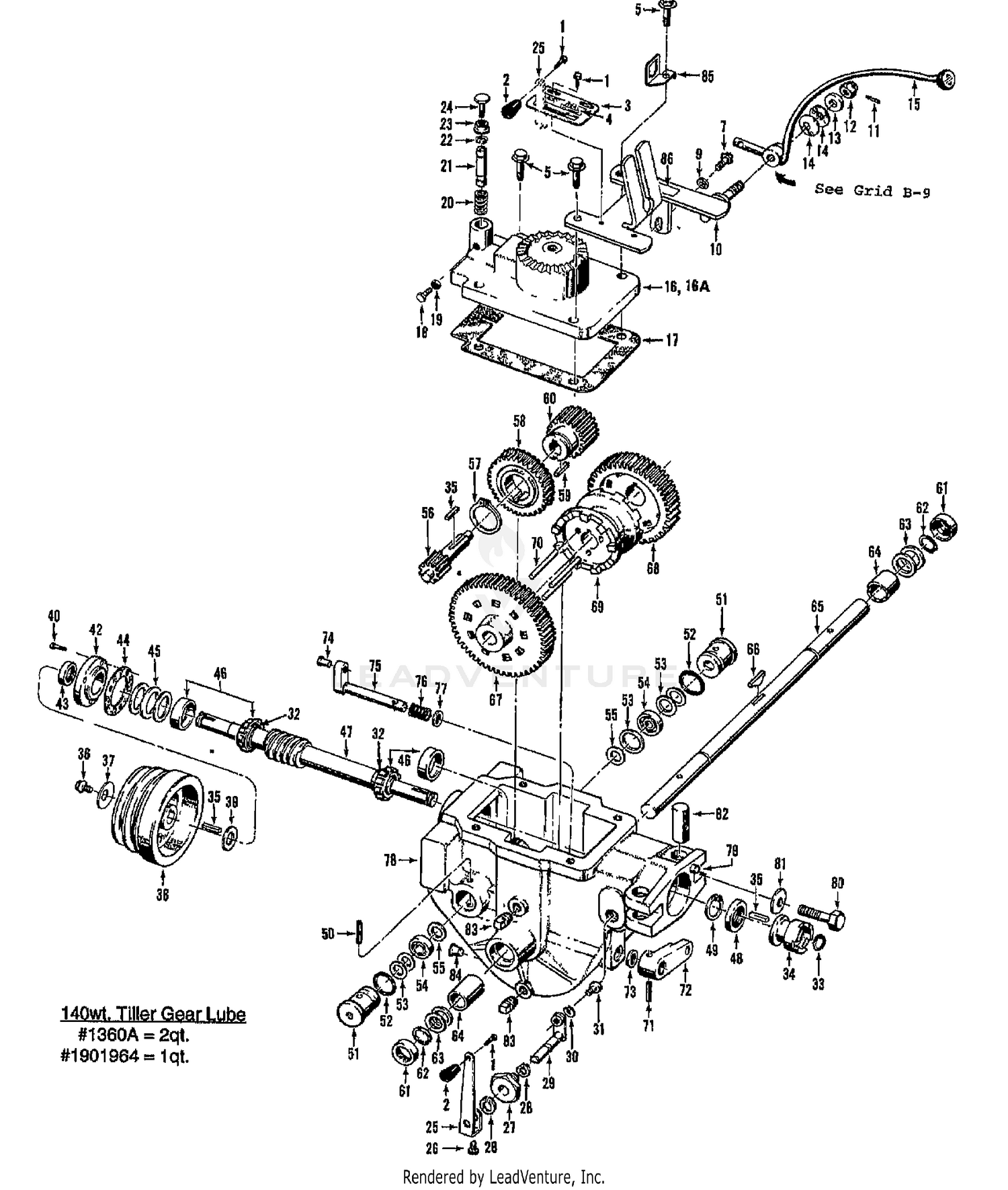

| Ref | Part Number | Description |
|---|
| 1 |
710-04454 |
HEX SCREW #10-32 This part replaces GW-9782. Price: $3.71 |
| 2 |
GW-9463 |
KNOB - tines/P.T.O. clutch lever, tapered, plastic This part replaces 9463. Price: $10.32 |
| 3 |
GW-2263 |
DETENT PLATE - tines/P.T.O. clutch lever This part replaces 2263. Price: $45.91 |
| 4 |
777I20945 |
LABEL-TINES/PTO CL This part replaces 1900758. Price: $4.38 |
| 5 |
1186349 |
SCR-HFLK 3/8-16X1.50 This part replaces GW-90047. Price: $3.11 |
| 6 |
N/A |
THIS REF. NO. NOT USED |
| 7 |
710-04043 |
SCREW 5/16-18 This part replaces GW-90044. Price: $3.96 |
| 8 |
N/A |
THIS REF. NO. NOT USED |
| 9 |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-9902. Price: |
| 10 |
1900870001 |
Clutch Bracket This part replaces 1900870010. Price: $156.99 |
| 11 |
GW-9362 |
PIN - spring, 1/8" dia., retains castle nut to threaded stud This part replaces 9362. Price: $3.82 |
| 12 |
9838 |
NUT-HEX 1/2-20 Price: Call Us |
| 13 |
GW-9934 |
WASHER- shoulder, 1/2" (shoulder faces disc washers) This part replaces 9934. Price: $13.73 |
| 14 |
GW-9932 |
WASHER- disc spring (concave surfaces face each other) This part replaces 9932. Price: $21.54 |
| 15 |
N/A |
THIS REF. NO. NOT USED |
| 16 |
719-04015P |
Power Unit Transmission Cover This part replaces 1900869010. Price: $204.95 |
| 16A |
2566 |
ASSM-TRANS COVER OPC Price: Call Us |
| 17 |
GW-1123 |
GASKET- transmission cover This part replaces 1123. Price: $7.44 |
| 18 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces GW-90008. Price: $3.66 |
| 19 |
712-3010 |
HEX NUT 5/16-18 This part replaces GW-9801. Price: $3.89 |
| 20 |
1901439 |
SPRING-REV PLUNGER ZP Price: $10.67 |
| 21 |
GW-1035 |
PLUNGER -neutral (REMOVE WITH CARE) This part replaces 1035. Price: $33.23 |
| 22 |
1901440 |
RING-KLIP EXT .594 ID ZP Price: $4.79 |
| 23 |
9831 |
NUT-HFLK 3/8-16 ZP Price: Call Us |
| 24 |
1902004 |
SCR 3/8-16X1.5 UNC-2AG Price: $7.46 |
| 25 |
786-04002 |
Tines/PTO Clutch Lever This part replaces 1900878010. Price: $49.65 |
| 26 |
710-3013 |
SCREW 1/4-20X.5 GR5 This part replaces GW-9743. Price: $4.02 |
| 27 |
741-04008 |
Tines/PTO Clutch Bushing This part replaces 2123. Price: $25.38 |
| 28 |
GW-9516 |
RETAINING RING - (snap ring), external This part replaces 9516. Price: $3.56 |
| 29 |
GW-2461 |
Tines/PTO Clutch Shaft This part replaces 2461. Price: $34.31 |
| 30 |
GW-9911 |
LOCKWASHER- Hi-collar, 1/4" This part replaces 9911. Price: $5.23 |
| 31 |
710-04354 |
Screw, 1/4-20 x.375 This part replaces 9672. Price: $3.38 |
| 32 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 33 |
716-0101 |
Retaining Ring-external This part replaces 9500. Price: $3.37 |
| 34 |
1902404 |
CLUTCH KIT This part replaces GW-2120-3. Price: $146.17 |
| 34 |
718-04615 |
Dog Clutch This part replaces 1909139. Price: $46.92 |
| 35 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 36 |
710-0157 |
HEX SCREW 5/16-24 x .75 This part replaces 9655. Price: $3.90 |
| 37 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 38 |
GW-2107 |
PULLEY - transmission drive, cast iron This part replaces 2107. Price: $127.93 |
| 39 |
GW-50027 |
Support Washer This part replaces 50027. Price: $5.94 |
| 40 |
9579 |
SCR-HFLK 1/4-20X.75 G5 ZP Price: Call Us |
| 41 |
N/A |
THIS REF. NO. NOT USED |
| 42 |
718-04007 |
Front Bearing Cap This part replaces 1900879010. Price: $16.60 |
| 43 |
921-04044 |
Oil Seal, .750 x 125 This part replaces GW-85030. Price: $8.80 |
| 44 |
GW-1124-2099 |
BEARING COVER GASKET This part replaces 1124-2. Price: $3.98 |
| 45 |
736-04305 |
Washer, Flat, 1.50 x 1.75 x .062 This part replaces 1224-4. Price: $3.52 |
| 45 |
736-04306 |
Washer, Flat, 1.50 x 1.75 x .005 This part replaces 1224-3. Price: $3.85 |
| 45 |
736-04308 |
Washer, Flat, 1.50 x 1.75 x .010 This part replaces 1224-1. Price: $3.85 |
| 45 |
742-05107-4046 |
BLADE:46":SIDE:HOP 532-405380 This part replaces 12242. Price: $28.06 |
| 46 |
941-0107 |
Bearing, Tapered Roller (with race) This part replaces 1714. Price: $41.81 |
| 47 |
11601 |
KIT-WHEELDRIVE ROLL/WORM Not Available Price: |
| 48 |
921-04030 |
Oil Seal, .75 x 1.783 This part replaces 9617. Price: $11.33 |
| 49 |
716-04102 |
Retaining Ring, Int This part replaces 9517. Price: $3.85 |
| 50 |
715-0121 |
Spirol Pin, 1/4 x 2.0 This part replaces 9309. Price: $5.95 |
| 51 |
GW-1060A |
PLUG-PINION BRG W/ Not Available This part replaces 1060A. Price: |
| 52 |
GW-9604 |
O-RING - retaining plug This part replaces 9604. Price: $4.62 |
| 53 |
736-04310 |
Flat Washer, 1/234 x 1.015 x .062 This part replaces 1132-2. Price: $3.95 |
| 53 |
736-04386 |
Washer, 1.00 x 1.50 x .03, SS This part replaces 1132-1. Price: $6.01 |
| 53 |
GW-1132-3 |
Washer, Flat, 1.015 x 1.234 x.010 This part replaces 1132-3. Price: $5.95 |
| 54 |
GW-9404 |
BEARING - ball, pinion shaft This part replaces 9404. Price: $24.30 |
| 55 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 1126. Price: $4.37 |
| 56 |
GW-1222 |
STEM PINION - slow speed gear and shaft (drives slow speed wheel gear) This part replaces 1222. Price: $122.90 |
| 57 |
716-04119 |
External Retaining Ring, 1.387 ID This part replaces 9502. Price: $12.96 |
| 58 |
GW-2656 |
Worm Gear This part replaces 2656. Price: $129.55 |
| 59 |
GW-9300 |
KEY-3/16" square x 5/8" Connects fast speed pinion gear to bronze worn gear This part replaces 9300. Price: $3.22 |
| 60 |
GW-1233 |
GEAR- fast speed pinion (drives fast speed wheel gear) This part replaces 1233. Price: $125.18 |
| 61 |
921-04031 |
Oil Seal, 1.0 x 1.499 This part replaces 9621. Price: $9.58 |
| 62 |
716-04104 |
Retaining Ring This part replaces 9511. Price: $3.85 |
| 63 |
736-04257 |
Flat Washer, 1.375 x 1.015 x .005 This part replaces 1166-5. Price: $3.48 |
| 63 |
736-04258 |
Washer, 1.375 x 1.015 x .01 This part replaces 1166-4. Price: $3.48 |
| 63 |
736-04259 |
Washer, 1.375 x 1.015 x .015 This part replaces 1166-3. Price: $5.94 |
| 63 |
736-04260 |
Washer, 1.375 x 1.015 x .03 This part replaces 1166-2. Price: $5.94 |
| 63 |
736-04309 |
Washer, 1.375 x 1.015 x .062 This part replaces 1166-1. Price: $3.85 |
| 64 |
941-04300 |
Bushing, 1.25 x 1 x .005 x 1.5 This part replaces 1086. Price: $15.25 |
| 65 |
GW-1878 |
SHAFT - wheel, 15-5/8" This part replaces 1878. Price: $201.61 |
| 66 |
714-04014 |
Hi-Pro Key, .250 x 1.8125 This part replaces 9357. Price: $18.36 |
| 67 |
GW-1223 |
GEAR- slow speed, wheel drive This part replaces 1223. Price: $196.25 |
| 68 |
GW-1232 |
GEAR- fast speed, wheel drive This part replaces 1232. Price: $135.63 |
| 69 |
GW-1237 |
DOG CLUTCH - wheel drive. Clutch drives either slow or fast wheel drive gears according to wheel speed shift lever gear selection This part replaces 1237. Price: $142.70 |
| 70 |
GW-1112 |
PIN - clutch guide, 1/4" diameter This part replaces 1112. Price: $4.06 |
| 71 |
915-0246 |
Pin, Spring, 3/16 x 1.25 Not Available This part replaces 9307. Price: |
| 72 |
619-04000-0637 |
Wheel Speed Shifting Lever This part replaces 1900880010. Price: $53.27 |
| 73 |
921-04034 |
Oil Seal, .625 x 1.0 This part replaces 9622. Price: $9.37 |
| 74 |
738-04448 |
PIN This part replaces 1442. Price: $7.14 |
| 75 |
611-04003 |
Wheel Speed Shifting Shaft This part replaces 2712. Price: $78.82 |
| 76 |
GW-1441 |
SPRING - eccentric shaft This part replaces 1441. Price: $3.61 |
| 77 |
736-04079 |
Support Washer This part replaces 1440. Price: $4.13 |
| 78 |
GW-2109099 |
HOUSING-POWER UNIT TRA This part replaces 2260. Price: $822.57 |
| 80 |
1100067 |
HEX HEAD CAP SCREW Not Available This part replaces GW-9560. Price: |
| 81 |
GW-9928 |
WASHER-disc spring (concave). Dome side of washer faces bolt head This part replaces 9928. Price: $11.23 |
| 82 |
2126 |
POST (TC) Price: Call Us |
| 83 |
1105620 |
PLUG-SQ HEAD 1/4-18 NPT This part replaces 9726. Price: $3.66 |
| 84 |
GW-9122 |
PLUG - red plastic, thread protector This part replaces 9122. Price: $8.93 |
| 85 |
9205 |
CLIP-CONNECTOR Price: Call Us |
| 86 |
777I20944 |
LABEL-FORWARD INTR Not Available This part replaces 1900759. Price: |
