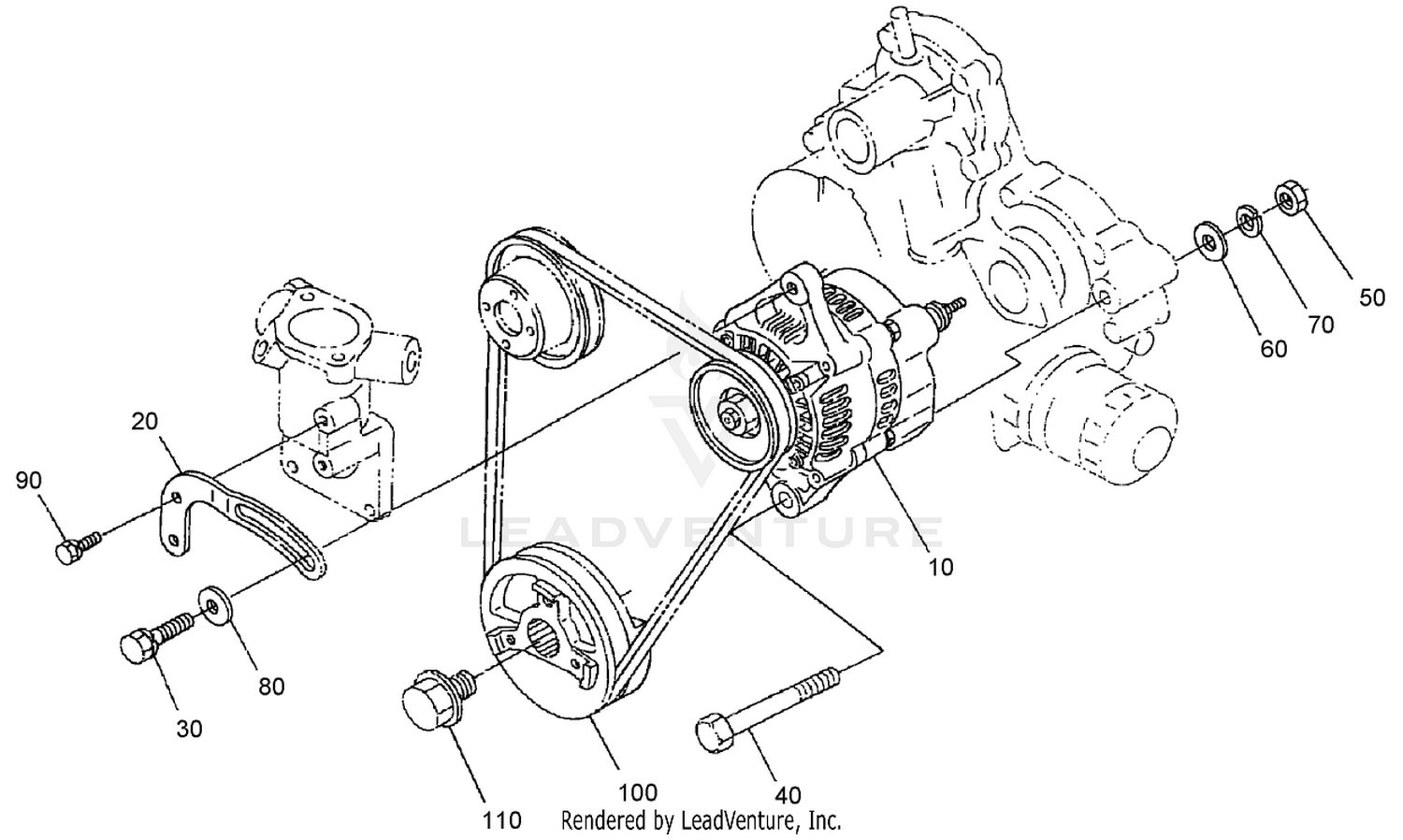

Alternator and Pulley Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 131-6557 | ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 20 | 112-7047 | STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 30 | 108-7088 | BOLT Price: $1.22 |
| 40 | 98-9360 | BOLT Price: $2.35 |
| 50 | 99-7526 | NUT This part replaces 98-7737. Price: $1.29 |
| 60 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 70 | 98-7738 | WASHER-SPRING Price: $0.24 |
| 80 | 100-9233 | WASHER-PLAIN Price: $0.48 |
| 90 | 98-7692 | BOLT Price: $0.92 |
| 100 | 98-9473 | PULLEY-DRIVE, FAN Price: $319.19 |
