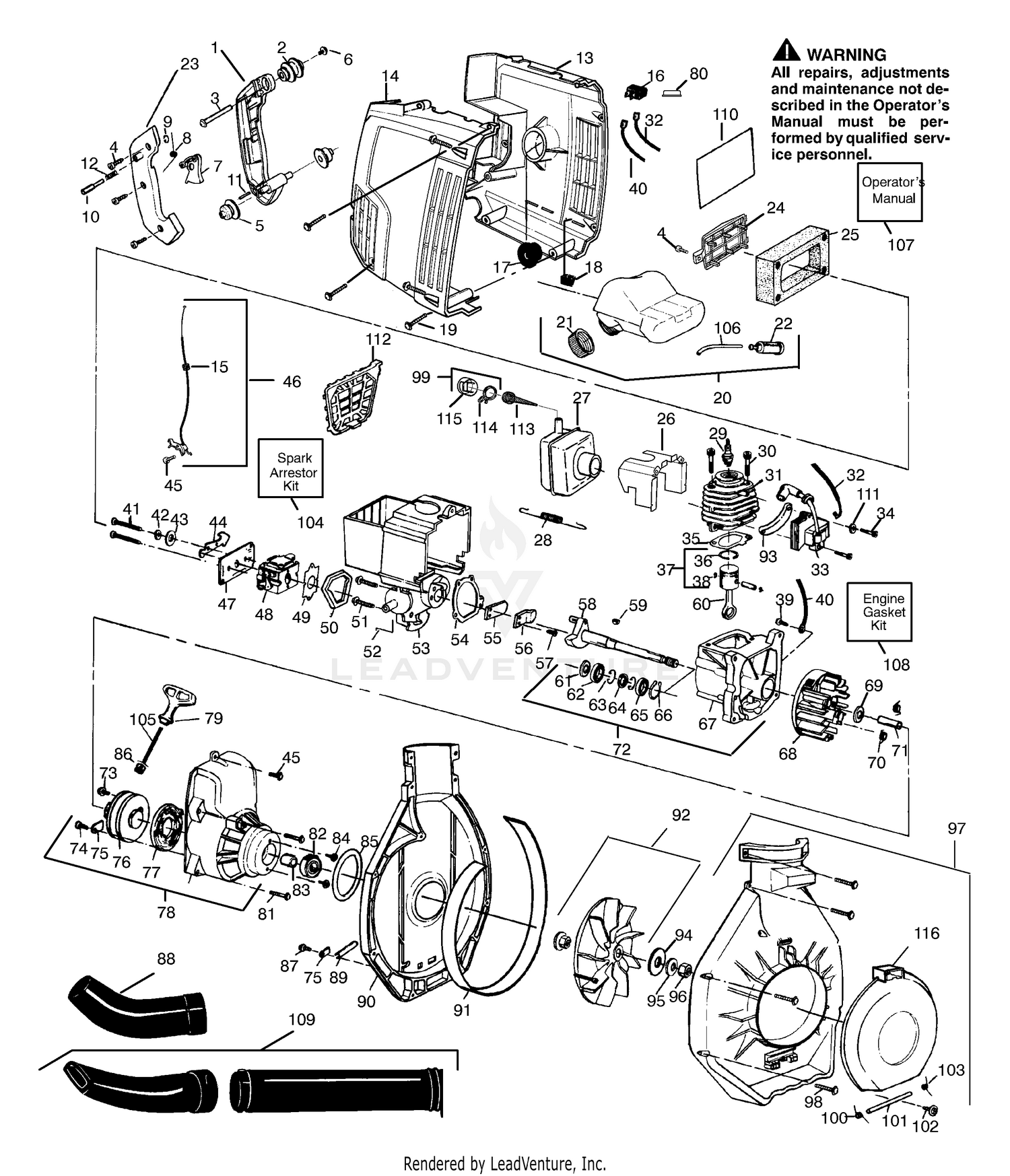

Blower Assembly
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530069863 | Handle Kit This part replaces 530094712. Price: $4.99 |
| 1 | 92-8863 | REPAIR KIT This part replaces 353-469. Price: $53.91 |
| 2 | 530026994 | Front Isolator Price: Call Us |
| 3 | 530029111 | Spacer Price: $1.99 |
| 4 | 530015635 | Screw Price: $1.99 |
| 5 | 530029130 | Rear Isolator Price: $1.99 |
| 6 | 530015813 | Screw Price: $0.99 |
| 7 | 530029072 | Trigger Price: Call Us |
| 8 | 530027597 | Spring Price: $1.99 |
| 10 | 530029117 | Throttle Lock Button Price: $0.99 |
| 11 | 530015840 | Pin Price: $0.99 |
| 12 | 530024772 | Spring Price: $1.99 |
| 14 | 530037143 | Shroud-Right Price: $17.99 |
| 15 | 530019168 | Grommet Price: $0.99 |
| 17 | 530029129 | Isolator Price: $1.99 |
| 18 | 530029295 | Isolator Price: $0.64 |
| 19 | 530015814 | Screw Price: $1.99 |
| 22 | 530095646 | Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 24 | 530029274 | Cover Price: $1.99 |
| 25 | 530029112 | Air Filter Price: $1.99 |
| 26 | 530029404 | Air Baffle Price: $2.99 |
| 27 | 530069293 | Muffler Price: $9.99 |
| 28 | 530029116 | Spring Price: $1.99 |
| 29 | 503235112 | Spark Plug This part replaces 952030078. Price: $5.99 |
| 30 | 530001624 | Screw Price: $1.99 |
| 31 | 530012349 | CYLINDER This part replaces 530012244. Price: $39.99 |
| 32 | 530029425 | Lead Wire Price: $1.99 |
| 33 | 530039137 | Ignition Module Price: $37.99 |
| 35 | 530019267 | GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 38 | 530015162 | Retainer Price: $1.99 |
| 39 | 530015306 | Screw Price: $1.99 |
| 40 | 530029426 | Ground Wire Price: $1.99 |
| 41 | 530015849 | Screw Price: $1.99 |
| 42 | 530015254 | Wave Washer Price: $1.99 |
| 43 | 530015852 | Spacer Price: $1.99 |
| 44 | 530029114 | Choke Shutter Price: $1.32 |
| 45 | 530015775 | Screw Price: $1.99 |
| 47 | 530029115 | Plate Price: $1.99 |
| 48 | 545081825 | KIT CARBURETOR ASSY This part replaces 530035263. Price: $49.99 |
| 49 | 530019164 | Gasket Price: $2.99 |
| 50 | 530019165 | Seal Price: $1.99 |
| 51 | 530015771 | Screw Price: $1.99 |
| 52 | 530029113 | Ground Wire Price: $0.99 |
| 54 | 530019166 | Gasket Price: $1.99 |
| 55 | 530027593 | Reed Valve Price: $1.99 |
| 56 | 530027594 | Reed Stop Price: $1.99 |
| 59 | 530015126 | Key Price: $1.99 |
| 62 | 530032103 | Inner Bearing Price: Call Us |
| 63 | 530015787 | Ring Price: $1.99 |
| 64 | 530019158 | Crankshaft Seal Price: $2.99 |
| 65 | 530032102 | Outer Bearing Price: $8.99 |
| 66 | 530015789 | Retaining Ring Price: $2.99 |
| 67 | 530014016 | Crankcase Price: Call Us |
| 69 | 530016030 | Washer This part replaces 530347987. Price: $1.99 |
| 70 | 530023817 | Spring Price: $1.99 |
| 72 | 530014156 | Crankcase/Crankshaft Assy. Price: Call Us |
| 74 | 530015496 | Screw Price: $1.99 |
| 75 | 530027523 | Retainer Price: $2.99 |
| 77 | 545008010 | STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 79 | 530027569 | Starter Handle Price: $1.99 |
| 80 | 530037071 | Protector Cap Price: $1.40 |
| 81 | 530015769 | Screw Price: $1.99 |
| 86 | 530029182 | Eyelet Price: $1.99 |
| 87 | 530015815 | Screw Price: $1.99 |
| 88 | 530069961 | Tube & Nozzle Kit This part replaces 530094968. Price: $8.99 |
| 89 | 530029119 | Roll Pin Price: $0.99 |
| 90 | 530094710 | Blower Housing (Upper) Price: $8.99 |
| 91 | 530029173 | Band Price: $4.99 |
| 93 | 530027525 | Spacer Price: $0.99 |
| 94 | 530015818 | Washer Price: $0.99 |
| 95 | 530015441 | Washer Price: $1.99 |
| 96 | 530001733 | Nut Price: $2.99 |
| 98 | 530015814 | Screw-Line Limiter This part replaces 530015872. Price: $1.99 |
| 99 | 530014339 | Deflector & Clamp Ass'y. Price: Call Us |
| 100 | 530015667 | Spring Price: $2.99 |
| 101 | 530015647 | Pin Price: $0.99 |
| 102 | 530015815 | Screw Price: $1.99 |
| 103 | 530015672 | Spring Price: $2.99 |
| 104 | 530069285 | T 1 Price: $17.99 |
| 104 | 530069348 | T 2 & 3 Price: $17.99 |
| 105 | 530069232 | Rope Kit Price: $3.99 |
| 106 | 530069247 | Line Kit Price: $3.99 |
| 108 | 530069294 | Gasket Kit Price: $5.99 |
| 109 | 530038508 | Tube and Nozzle Ass'y Price: $8.99 |
| 110 | 530029329 | Type 2 Price: $3.33 |
| 112 | 530069304 | Muffler Guard Price: Call Us |
| 113 | 530029227 | Spark Arrestor Screen Price: $17.99 |
| 114 | 530029228 | Spark Arrestor Clamp Price: $0.62 |
