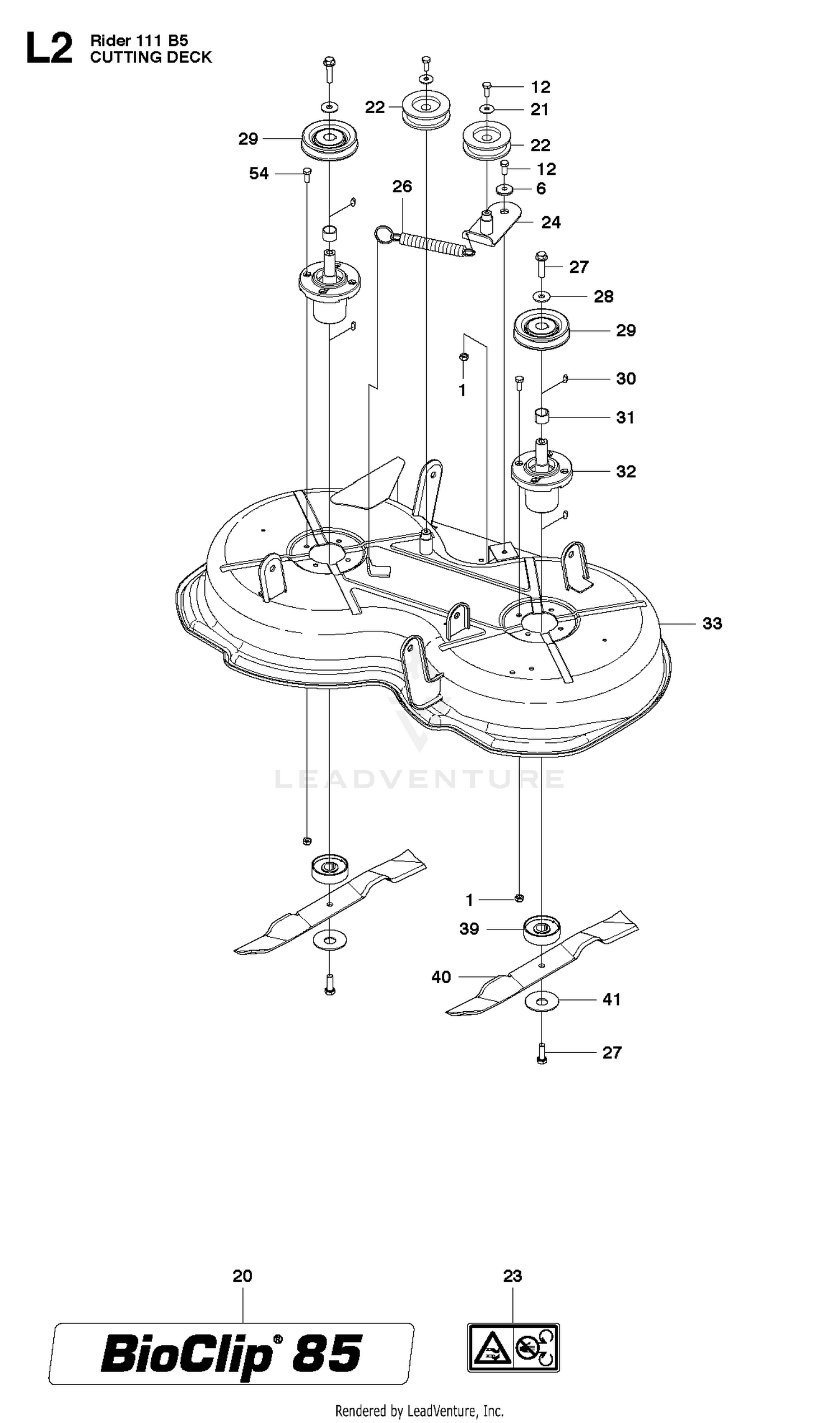

MOWER DECK / CUTTING DECK 2
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 2 | 138-1204 | SEAL-BOOT Price: $28.62 |
| 4 | 138-1205 | BEARING-CUP Price: $22.22 |
| 5 | 138-1206 | BEARING-CONE Price: $22.22 |
| 6 | 105-8124 | STUD-WHEEL Price: $7.84 |
| 6 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 7 | 138-1207 | SCREW-SOCKET HEAD Price: $2.58 |
| 8 | 138-1208 | WASHER-LOCK Price: $2.71 |
| 10 | 105-8121 | PIN-DOWEL Price: $0.41 |
| 12 | 138-6928 | SPACER Price: $22.26 |
| 12 | 725245371 | SCREW Price: $4.99 |
| 13 | 138-6929 | WASHER Price: $5.09 |
| 14 | 138-6930 | NUT-LOCK Price: $40.36 |
| 15 | 138-1209 | GEAR-RING Price: $837.28 |
| 16 | 138-1210 | RING-SNAP Price: $25.99 |
| 17 | 353-990 | PLUG ASM Price: $10.01 |
| 18 | 237-78 | O-RING Price: $3.85 |
| 19 | 138-1211 | PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 20 | 138-1212 | O-RING Price: $1.73 |
| 20 | 574849701 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 138-1213 | CAP-END Price: $89.39 |
| 21 | 734116441 | SPACER Price: $3.99 |
| 22 | 138-1214 | WASHER-THRUST, SUN Price: $9.02 |
| 22 | 586104302 | BELT TENSIONER WHEEL This part replaces 506793202. Price: $22.99 |
| 23 | 105-8131 | RING-RETAINING Price: $3.05 |
| 23 | 574510001 | DECAL Price: $2.99 |
| 24 | 573969501 | NEEDS DESCRIPTION Price: Call Us |
| 25 | 138-1215 | GEAR-PRIMARY, SUN Price: $97.58 |
| 26 | 138-1216 | SHAFT-DRIVE Price: $300.56 |
| 26 | 584298801 | NEEDS DESCRIPTION Price: Call Us |
| 27 | 138-1217 | PRIMARY CARRIER ASM Price: $917.18 |
| 28 | 138-1218 | SECONDARY CARRIER ASM Price: $802.56 |
| 28 | 734117771 | BUSHING Price: $3.99 |
| 29 | 574460701 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 506533501 | KEY Price: $3.99 |
| 31 | 573966501 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 573968601 | BEARING HOUSING ASSY Price: $44.99 |
| 33 | 522450001 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 577791101 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 581083501 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 506792303 | NEEDS DESCRIPTION Price: Call Us |
| 54 | 725245171 | SCREW Price: $2.08 |
