Home / OPE / Gravely Zero Turn / Promaster 200 / 992316 (002500 - 002999) 27HP PM260H, Rear Discharge / Engine, Muffler And Air Filter

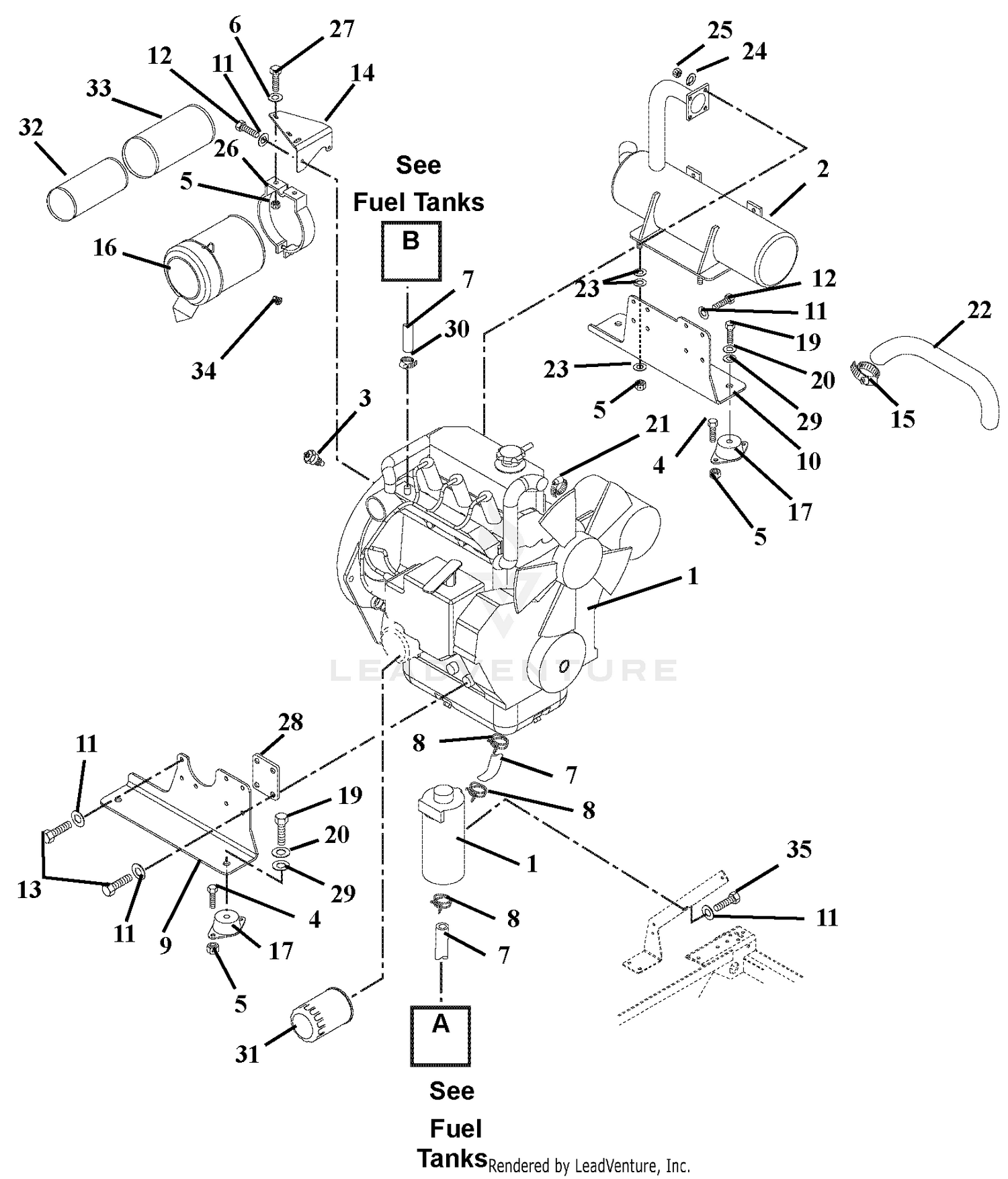

Engine, Muffler And Air Filter

Engine, Muffler And Air Filter

Parts (31)

RefPart NumberDescription
3 09263300 SENDER, TEMPERATURE Price: $50.45
4 05901704 BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45
5 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
6 06401009 WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45
7 00922600 HOSE,5/16 ID Price: $0.75
8 06947900 CLAMP, HOSE WIRE .520/.550 Price: $3.45
9 09265251 MOUNT, ENGINE RH (DIESEL) Price: $72.55
10 09265351 MOUNT, ENGINE LH (DIESEL) Price: $74.45
11 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
12 05901628 BLT, HEX M8-1.25X20 G8.8 ZCC This part replaces 05973300. Price: $1.45
13 05964900 BLT, HEX M8-1.25X25 GR8.8YWZC Price: $2.45
14 09295051 BRKT, AIR CLEANER - BLACK Price: $74.45
15 06934700 CLAMP, HOSE #32 (1.56"-2.50") This part replaces 06900005. Price: $3.45
16 03782600 CLEANER, AIR This part replaces 09257500. Price: $140.45
17 05034800 MOUNT, ENGINE, VIBRATION ISO Price: $23.45
18 05901701 BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45
19 05975000 BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45
20 06300115 WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95
21 06922200 CLAMP-HOSE 1.50X.81X1.42 Price: $5.45
23 06401023 WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45
24 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
25 06538600 NUT-HEX M8-1.25 YWZC Price: $1.95
26 09257600 BRACKET, AIR CLEANER MOUNT Price: $78.45
27 06401023 WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45
28 09277251 SPACER, ENGINE MTG (DIESEL) Price: $5.45
29 06401015 WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95
30 06948200 CLAMP, HOSE, IDEAL 6202 SIZE 4 Price: Call Us
31 21539000 FILTER, OIL Price: $17.95
32 21536900 ELEMENT, INNER SAFETY Price: $25.45
33 21537000 ELEMENT, OUTER PRIMARY Price: $32.95
34 07012700 FTG,LUBE 45 DEG Price: $3.95
