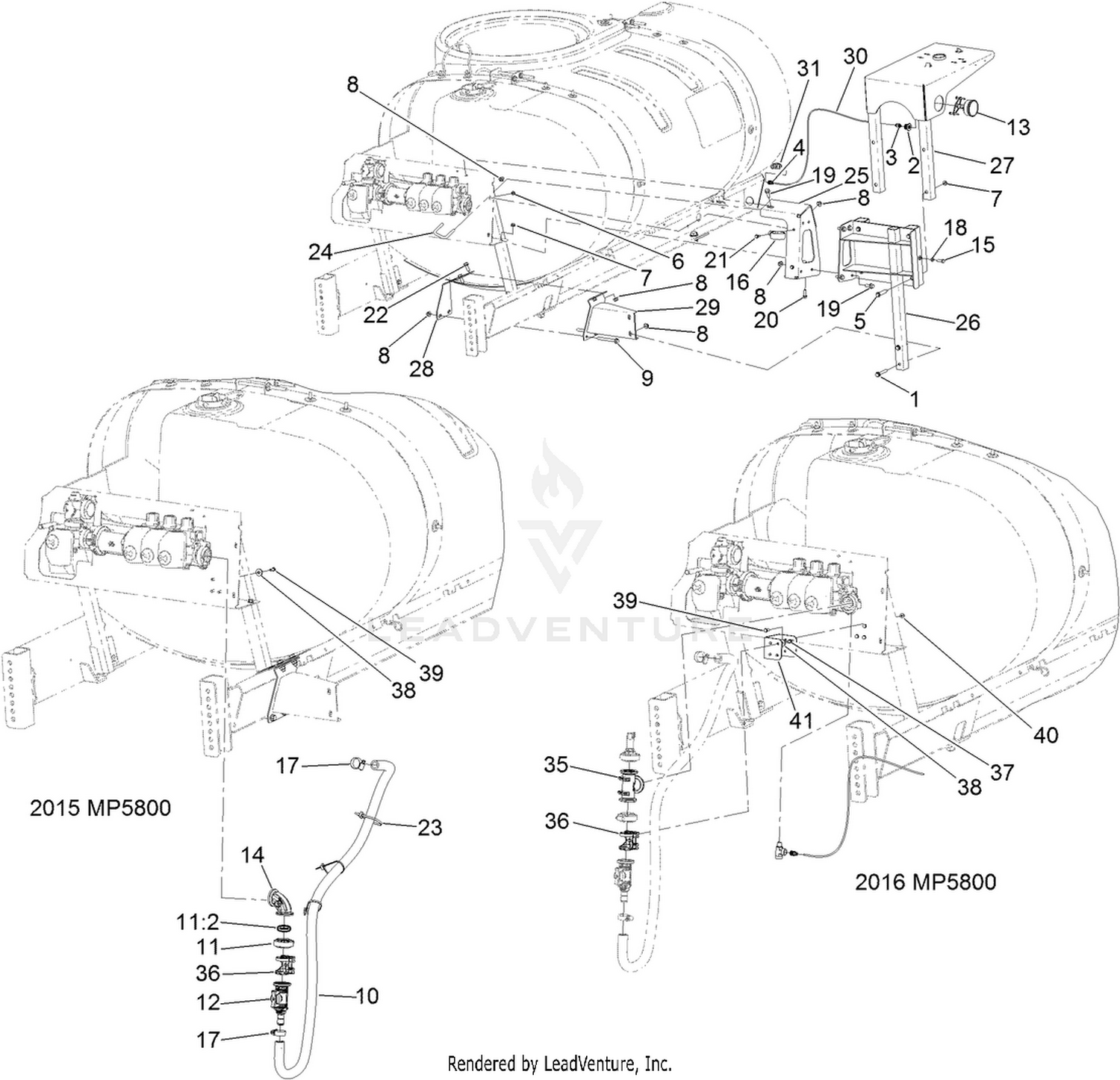

Hose Reel Mount and Supply Hose Assembly
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-2592 | SCREW-HHF Price: $9.09 |
| 2 | 100-8665 | REDUCER-GAUGE, PRESSURE Price: $62.08 |
| 3 | 100-8667 | COUPLER-REDUCER Price: $47.60 |
| 4 | 100-8674 | COUPLER-TUBE Price: $60.10 |
| 5 | 136-7199 | BOLT-SHOULDER Price: $2.49 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 116-4701 | SCREW-HHF Price: $2.59 |
| 10 | 119-0491 | HOSE-SUPPLY Price: $50.49 |
| 11 | 127-9829 | CLAMP/GASKET KIT Price: $40.32 |
| 12 | 130-7321 | HOSE REEL VALVE ASM Price: $306.97 |
| 13 | 120-8546 | GAUGE-PRESSURE Price: $172.62 |
| 14 | 131-3726 | FITTING-ELBOW, 90 DEG Price: $38.12 |
| 15 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 | 2412-107 | CLAMP-R Price: $2.65 |
| 17 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 18 | 3218-2 | NUT-JAM Price: $0.25 |
| 19 | 3234-11 | SCREW-HHF Price: $1.23 |
| 20 | 3234-17 | SCREW-HHF Price: $0.72 |
| 21 | 3234-4 | SCREW-HHF Price: $0.50 |
| 22 | 3234-42 | SCREW-HHF Price: $1.10 |
| 23 | 3290-378 | TIE-CABLE Price: $0.79 |
| 24 | 99-8444 | U-BOLT Price: $14.32 |
| 25 | 130-7154-03 | BRACKET-SUPPORT, UPPER Price: $85.18 |
| 26 | 130-7155-03 | BRACKET-SUPORT Price: $235.00 |
| 27 | 130-7160-03 | BASE-FRAME Price: $403.21 |
| 28 | 130-7163-03 | BRACKET-LOWER Price: $19.62 |
| 29 | 130-7164-03 | BRACKET-LOWER Price: $68.91 |
| 30 | 130-7223 | TUBE-GAUGE, PRESSURE Price: $19.65 |
| 31 | 2815-16 | FITTING-HYD, TEE Price: $39.81 |
| 35 | 127-9834 | FITTING-TEE Price: $13.78 |
| 36 | 132-4302 | MOUNT-VALVE Price: $38.41 |
| 37 | 33113-012 | SCREW-HH Price: $0.71 |
| 38 | 88-7200 | WASHER-FLAT Price: $2.51 |
| 39 | 33113-016 | SCREW-HH Price: $0.34 |
| 40 | 33003-00 | NUT-HF Price: $0.25 |
