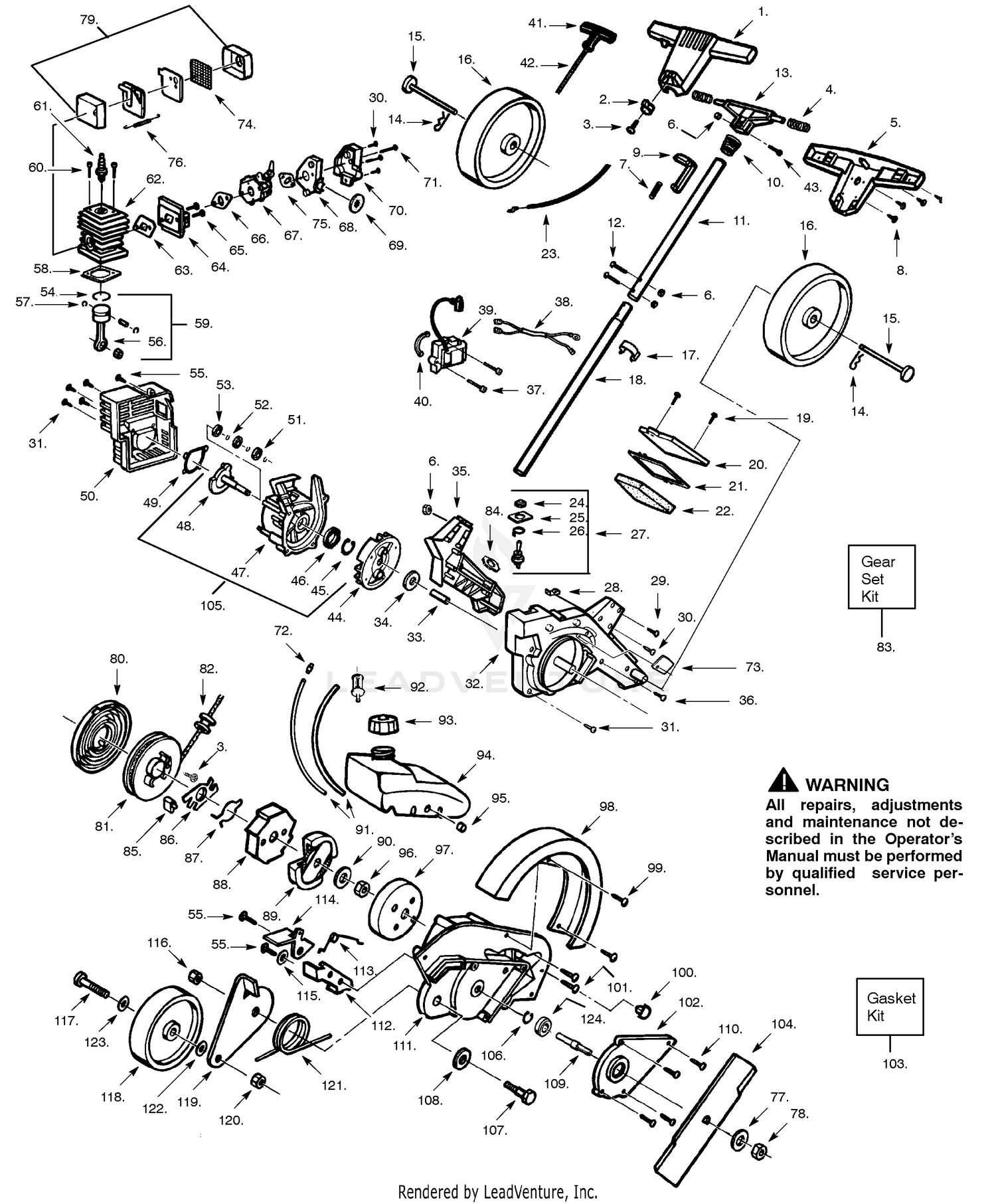

Product Complete
Parts (117)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530036677 | Upper Handle Price: $8.99 |
| 2 | 530036985 | Handle Eyelet Price: $1.99 |
| 3 | 530016080 | Screw Price: $1.99 |
| 4 | 530036981 | Spring Isolator Price: $1.99 |
| 5 | 530036676 | Lower Handle Price: $6.99 |
| 6 | 530015768 | Locknut-Coupling/Shaft Price: $1.99 |
| 7 | 530036982 | Throttle Spring Price: $1.99 |
| 8 | 503210719 | Screw-Handle Price: $1.99 |
| 9 | 530036673 | Throttle Trigger Price: Call Us |
| 10 | 530036984 | Handle Spring Price: $2.99 |
| 11 | 530095104 | Upper Handle Tube Price: $11.99 |
| 12 | 530015999 | Screw-Shaft Price: $1.99 |
| 13 | 530036983 | Coupling-Handle Price: $2.99 |
| 14 | 530016002 | Bridgepin Price: $1.99 |
| 15 | 530015997 | Axle Pin Price: $1.99 |
| 16 | 530095126 | Rear Wheel Price: $3.33 |
| 17 | 530015982 | Tube Clamp Price: $0.99 |
| 18 | 530095103 | Lower Handle Tube Price: $11.99 |
| 19 | 530015983 | Screw-Filter Cover Price: $1.99 |
| 20 | 530036632 | Air Filter Cover Type 1 & 2 Price: $0.76 |
| 21 | 530036837 | Gasket Price: $3.99 |
| 22 | 530036664 | Air Filter Foam Price: $1.99 |
| 23 | 530036674 | Throttle Cable Price: $11.99 |
| 24 | 530016038 | Boot w/Nut Price: $3.94 |
| 25 | 530053920 | Assy-Gound Switch This part replaces 530038474. Price: $7.99 |
| 26 | 530037066 | Grounding Terminal Price: $1.99 |
| 28 | 530015922 | Speed Nut Price: $1.99 |
| 29 | 530015774 | Screw-Fan Housing Price: $1.99 |
| 30 | 530015886 | Screw-Fan Housing Price: $1.99 |
| 31 | 530016386 | Screw-Fan Housing/Shroud Price: $5.99 |
| 33 | 530036927 | Flywheel Spacer Price: $1.99 |
| 34 | 530015828 | Washer Price: $1.99 |
| 35 | 530038301 | Axle Cover Price: $5.99 |
| 36 | 530015940 | Screw-Fan Housing Price: $1.99 |
| 37 | 530015954 | Screw-Ignition Module Price: $1.99 |
| 38 | 530014655 | Switch Wire Ass’y. Price: $4.99 |
| 39 | 530039163 | Ignition Module Price: $34.99 |
| 40 | 530036145 | Spacer-Ignition Module Price: $1.99 |
| 41 | 530027569 | Starter Handle Price: $1.99 |
| 42 | 530069421 | Rope Kit Price: $2.99 |
| 43 | 530015774 | Screw-Coupling Price: $1.99 |
| 44 | 530054115 | Assy-Flywheel This part replaces 530039149. Price: $27.99 |
| 45 | 530015945 | Retaining Ring-C’case Price: $1.99 |
| 46 | 530019179 | C’case Seal Price: $2.99 |
| 48 | 530014864 | Crankshaft Ass’y. Price: $13.99 |
| 49 | 530-019181 | Gasket-Crankcase Price: $1.99 |
| 50 | 530036555 | Shroud Price: $9.99 |
| 51 | 530032124 | Outer Bearing Price: $4.99 |
| 52 | 530015941 | Retaining Ring-C’shaft Price: $1.99 |
| 53 | 738210101 | BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 54 | 530036404 | Piston Ring Price: $4.99 |
| 55 | 530015934 | Screw-Shroud Price: $1.99 |
| 57 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 58 | 530019223 | Gasket-Cylinder Price: $1.99 |
| 60 | 530015953 | Screw-Cylinder Price: $1.99 |
| 61 | 530030075 | Spark Plug (RCJ-8Y) Price: Call Us |
| 62 | 530069619 | Cylinder Kit Price: $63.06 |
| 63 | 530019233 | Cylinder Gasket This part replaces 530019185. Price: $1.99 |
| 64 | 530036646 | Carb. Adaptor Price: $1.99 |
| 65 | 530016014 | Screw-Carb Adaptor Price: $1.99 |
| 66 | 530019194 | Carb. Gasket Price: $1.99 |
| 67 | 530035328 | Carburetor w/Choke Type 1 & 2 (WT-242) Price: $19.24 |
| 68 | 530036626 | Air Box Base Price: $1.99 |
| 69 | 530019190 | Foam Seal Price: $1.99 |
| 70 | 530036622 | Airbox Cover Price: $1.99 |
| 71 | 530015887 | Screw-Airbox Cover Price: $1.99 |
| 72 | 530023877 | Fuel Line Fitting Price: $1.99 |
| 73 | 530038308 | Fuel Line Retainer Price: $1.99 |
| 74 | 530036180 | Muffler Screen Price: $1.99 |
| 75 | 530019144 | Gasket-Carb. Price: $1.99 |
| 76 | 530016197 | Spring-Muffler Old Style This part replaces 530029930. Price: $1.99 |
| 77 | 530016033 | Washer-Blade Price: $1.99 |
| 78 | 530016032 | Nut-Blade Price: $1.99 |
| 80 | 530037229 | Starter Spring Price: $3.72 |
| 82 | 530037224 | Eyelet Price: $1.99 |
| 83 | 530071258 | Gear Set Kit Price: $14.99 |
| 84 | 530019199 | Gasket-Tube Price: $1.99 |
| 85 | 530027162 | Starter Dog Price: $1.99 |
| 86 | 530042073 | Starter Cam Price: $1.99 |
| 87 | 530042072 | Starter Dog Wire Price: $1.99 |
| 88 | 530036922 | Starter Cup Price: $2.99 |
| 89 | 530014832 | Clutch Ass’y. Price: $5.99 |
| 90 | 530015127 | Washer-Belleville Price: $1.99 |
| 91 | 530069599 | Fuel Line Kit Price: $4.69 |
| 92 | 530095646 | Assy-Fuel Pick-up This part replaces 530014815. Price: $2.69 |
| 93 | 530014347 | Fuel Cap Ass’y. Price: $4.49 |
| 94 | 530058793 | Fuel Tank Ass’y. Price: $24.99 |
| 95 | 530036792 | Fuel Tank Isolator Price: $4.99 |
| 96 | 530626605 | Nut Price: $1.99 |
| 97 | 530036665 | Drum Clutch Price: $5.99 |
| 98 | 530095082 | Front Shield Price: $3.33 |
| 99 | 530015843 | Screw Price: $1.99 |
| 100 | 530036935 | Dustplug Price: Call Us |
| 101 | 530015770 | Screw-Bearing Holder Price: Call Us |
| 102 | 530036934 | Bearing Holder Ass’y. Type 1 Price: $40.99 |
| 104 | 530095086 | Blade Price: $4.99 |
| 106 | 530037625 | Retainer Ring Price: $0.99 |
| 107 | 530016067 | Shoulder Bolt Price: $1.99 |
| 108 | 530016040 | Washer Price: $1.99 |
| 109 | 530095070 | Drive Shaft Price: $14.99 |
| 110 | 530015814 | Screw Price: $1.49 |
| 111 | 530014894 | Gear Box Ass’y. Price: $65.32 |
| 112 | 530036675 | Back Plate Price: $3.99 |
| 113 | 530036923 | Spring Price: $2.99 |
| 114 | 530036683 | Height Lever Price: $3.99 |
| 115 | 530027163 | Retainer-Starter Pulley Price: $0.28 |
| 116 | 530016063 | Nut-Swing Arm Price: $1.99 |
| 117 | 530015981 | Bolt-Front Wheel Price: $1.99 |
| 118 | 530095125 | Front Wheel Price: $5.99 |
| 119 | 530037279 | Swing Arm Price: $4.99 |
| 120 | 530015515 | Locknut-Swing Arm Price: $1.99 |
| 121 | 530036884 | Front Axle Spring Price: $1.99 |
| 122 | 530001717 | Washer-Thrust Price: $1.99 |
| 123 | 530015151 | Washer-Flat Price: $1.99 |
| 124 | 530016042 | Washer-Thrust Price: $1.99 |
| 530036631 | Air | Filter Cover Type 3 Price: $1.99 530036631 |
| 530037367 | Bearing | Holder Ass’y. Type 2 & 3 Price: $14.99 530037367 |
