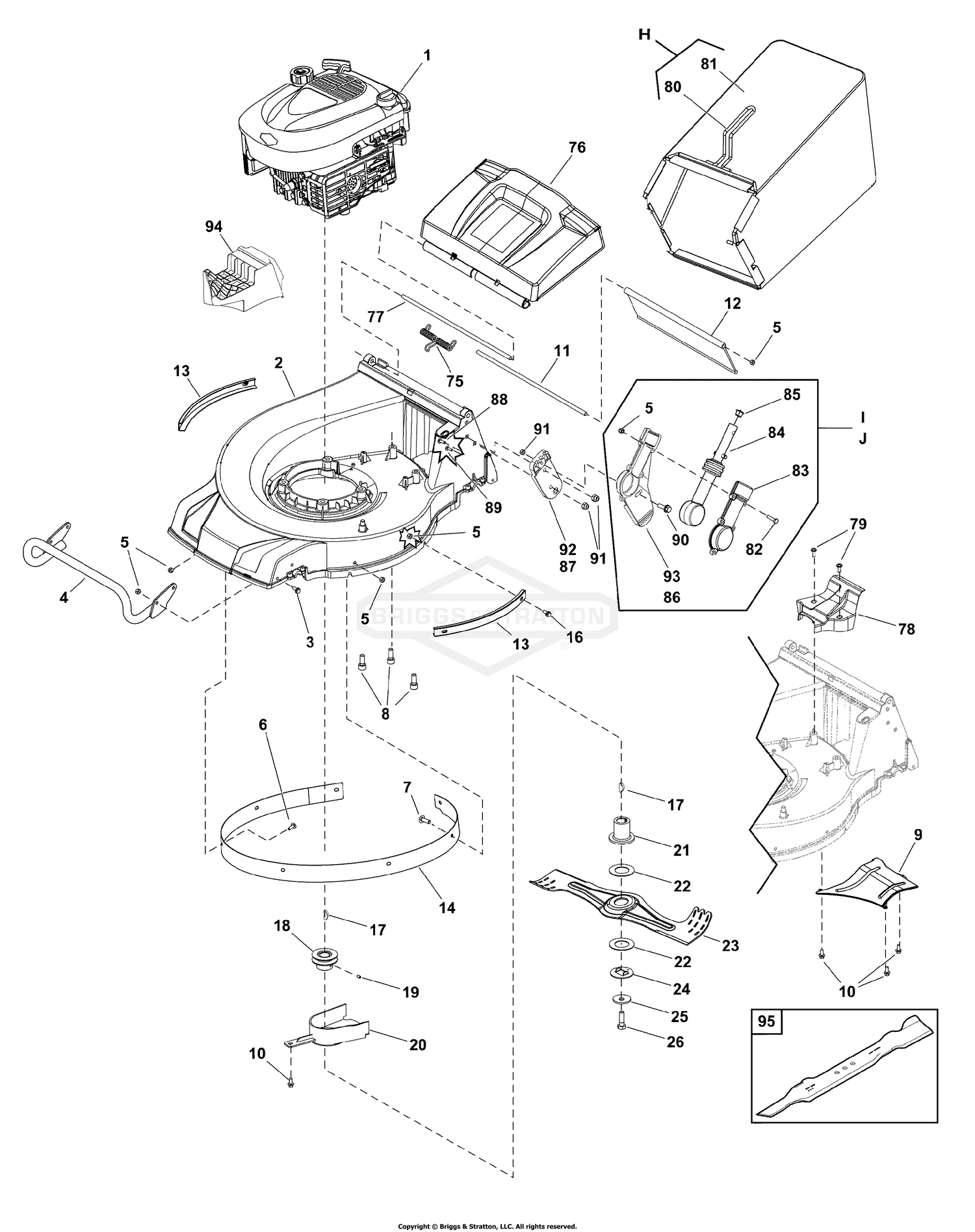

| Ref | Part Number | Description |
|---|
| 2 |
701291BJYP |
DECK - PEWTER This part replaces 701291. Price: $768.49 |
| 3 |
701181YP |
BOLT, Hex Flange This part replaces 701181. Price: $3.39 |
| 4 |
701328YP |
BUMPER, 21" This part replaces 701328. Price: $52.99 |
| 6 |
701184YP |
SCREW, Truss Head, Cross Recessed This part replaces 701184. Price: $2.65 |
| 7 |
701185YP |
SCREW, Truss Head, Cross Recessed This part replaces 701185. Price: $2.96 |
| 8 |
701186YP |
SCREW, Inner Hexagon, Round Head, Tapping This part replaces 701186. Price: $4.81 |
| 9 |
701329YP |
DEFLECTOR, Lower This part replaces 701329. Price: $52.26 |
| 10 |
701187YP |
SCREW, Hex Flange, Tapping This part replaces 701187. Price: $5.15 |
| 11 |
701292YP |
SHAFT, Rear Deflector, 21" This part replaces 701292. Price: $12.18 |
| 12 |
701293YP |
DEFLECTOR, Rear, 21" This part replaces 701293. Price: $31.76 |
| 13 |
701294YP |
SHIELD, Outer This part replaces 701294. Price: $16.79 |
| 14 |
701295YP |
SHIELD, Inner Ring This part replaces 701295. Price: $55.11 |
| 16 |
701297YP |
BOLT, Hex Flange This part replaces 701297. Price: $3.17 |
| 17 |
701192YP |
KEY, Woodruff This part replaces 701192. Price: $3.59 |
| 18 |
701331YP |
PULLEY ENGINE This part replaces 701331. Price: $41.99 |
| 19 |
701298YP |
SCREW, INNER HEX This part replaces 701298. Price: $2.76 |
| 20 |
701299YP |
SHIELD, Lower Belt This part replaces 701299. Price: $13.09 |
| 21 |
701255YP |
ADAPTOR, Blade This part replaces 701255. Price: $20.99 |
| 22 |
701256YP |
DISC, Friction This part replaces 701256. Price: $3.19 |
| 23 |
701332YP |
BLADE, 21" This part replaces 701332. Price: $28.99 |
| 24 |
701257YP |
CLIP This part replaces 701257. Price: $3.88 |
| 25 |
701196YP |
SPRING, Dishing This part replaces 701196. Price: $10.19 |
| 26 |
701197YP |
BOLT, Blade This part replaces 701197. Price: $8.19 |
| 75 |
701310YP |
SPRING, Torsion This part replaces 701310. Price: $10.80 |
| 76 |
701311YP |
COVER, Rear This part replaces 701311. Price: $121.89 |
| 77 |
701312YP |
SHAFT, Rear Cover This part replaces 701312. Price: $12.18 |
| 78 |
701313YP |
SHIELD, Upper Pulley This part replaces 701313. Price: $34.44 |
| 79 |
701226YP |
SCREW, Inner Hexagon Tapping This part replaces 701226. Price: $3.47 |
| 87 |
701352YP |
BASE, Right Bracket Price: $32.49 |
| 88 |
701319YP |
BOLT, Carriage, This part replaces 701319. Price: $3.20 |
| 89 |
701229YP |
BOLT, Carriage This part replaces 701229. Price: $3.20 |
| 91 |
701228YP |
NUT, Nylon Insert, Torque Type This part replaces 701228. Price: $2.96 |
| 92 |
701355YP |
BASE, Left Bracket Price: $32.49 |
| 94 |
702122YP |
PLUG, Mulch, 21" This part replaces 702122. Price: $151.04 |
