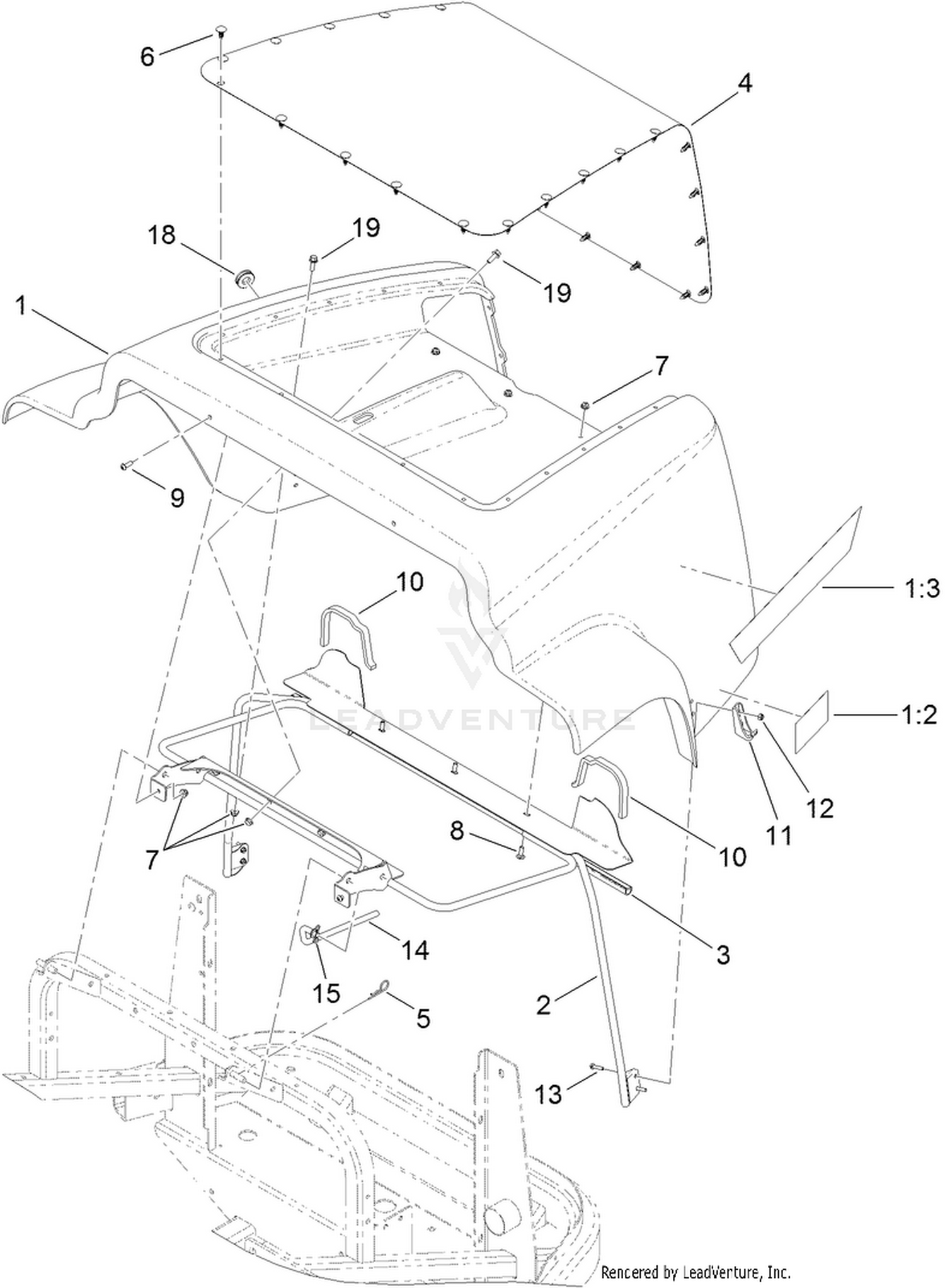

Hood Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-5360 | HOOD ASM Price: $2,040.20 |
| 2 | 120-6743-03 | HOOD MOUNT ASM Price: $346.97 |
| 3 | 115-0423 | SEAL-BULB Price: $20.61 |
| 4 | 120-6742-03 | SCREEN-HOOD Price: $253.58 |
| 5 | 9335054 | PIN-HAIR Price: $1.49 |
| 6 | 117-2382 | PLUG-PLASTIC Price: $0.69 |
| 7 | 104-7201 | NUT-HF Price: $0.69 |
| 8 | 3229-1 | BOLT-CARR Price: $3.39 |
| 9 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 10 | 110-8288 | SEAL-FOAM Price: $2.67 |
| 11 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 12 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 14 | 117-3171 | ROD-PROP Price: $33.41 |
| 15 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 18 | 104-1453 | GROMMET Price: $6.57 |
