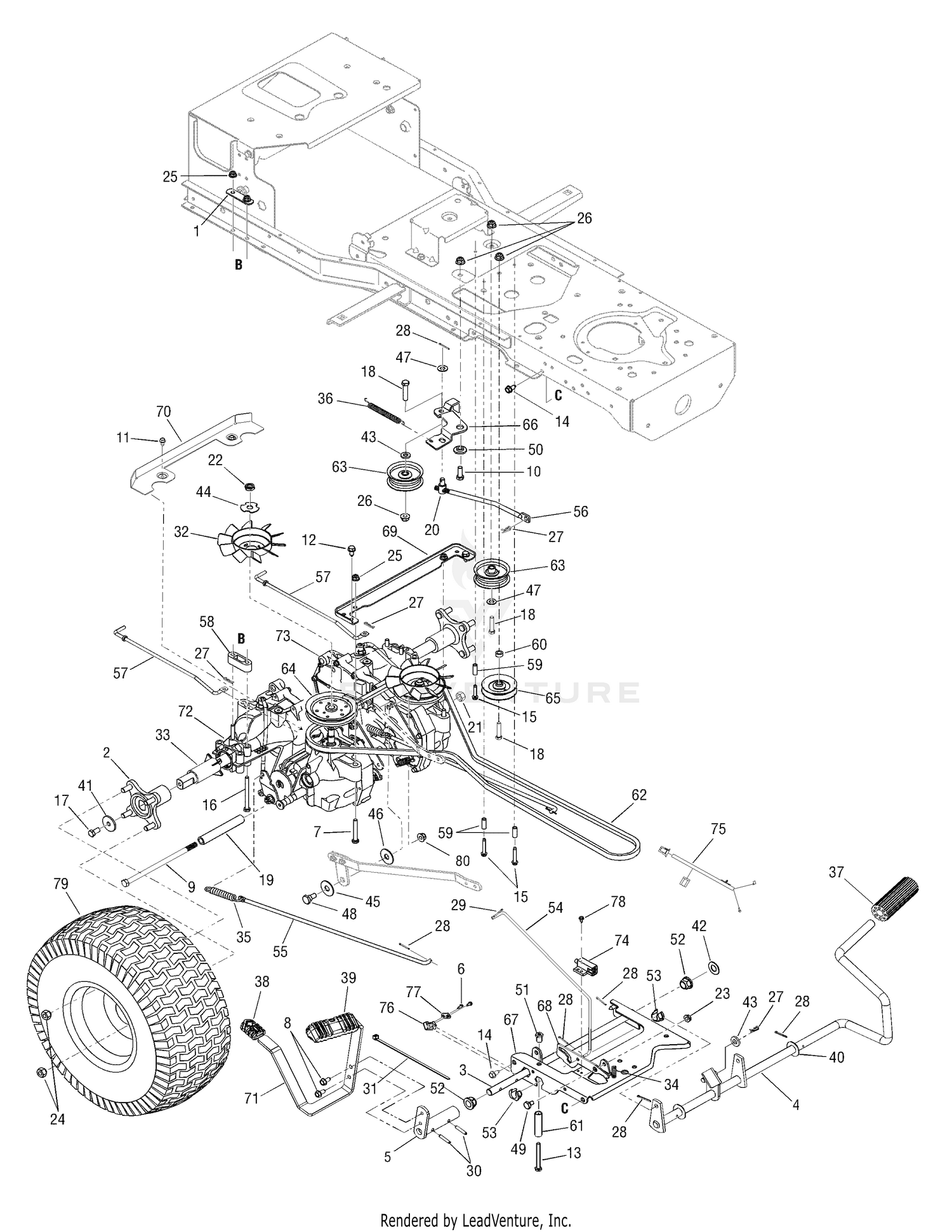

| Ref | Part Number | Description |
|---|
| 1 |
17840-0637 |
Transmission Mounting Bracket This part replaces 17840. Price: $10.12 |
| 2 |
918-04317 |
HUB, DD This part replaces 618-04317. Price: $102.24 |
| 3 |
647-04094 |
PEDAL CONTROL SHAFT ASSEMBLY Not Available Price: |
| 4 |
647-04141A |
BRAKE CONTROL ASSEMBLY Not Available This part replaces 647-04141. Price: |
| 5 |
683-04314B-0637 |
PEDAL BRACKET ASSEMBLY(POWDER BLACK) Not Available This part replaces 683-04314A. Price: |
| 6 |
710-0227 |
Screw, Hex Wash Hd. Tapp, #8-18 x .5 Price: $3.90 |
| 7 |
27105900 |
SCREW,HEX WASHER 1/4-20X1.125 Price: $1.95 |
| 7 |
710-0395 |
Screw, Hex Cap, 5/16-18 x 2.25 Gr5 Price: $4.08 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-04648 |
SCREW 7/16-14 x 8.50 GR5 Not Available Price: |
| 10 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 Gr5 Price: $3.78 |
| 11 |
21500049 |
PLUG EXT HEX VENT 9/16 18 Price: $5.45 |
| 11 |
710-0599 |
Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5 Price: $3.86 |
| 12 |
710-0607 |
Screw, Hex Wash Hd. Tapp, 5/16-18 x .5 Price: $6.06 |
| 13 |
21543771 |
SEALANT TUBE 10.1OZ. Price: $132.95 |
| 13 |
710-0641 |
Screw, Hex Cap, 1/4-20 x 2.25 Gr5 Price: $3.66 |
| 14 |
710-0726 |
Screw, Hex Wash Hd. Tapp, 5/16-12 x .75 Price: $3.82 |
| 15 |
710-1026 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .75 Price: $5.94 |
| 16 |
710-1266 |
Screw, Hex Cap, 5/16-18 x 3.5 Gr5 Price: $8.66 |
| 17 |
710-3119 |
Screw, Hex Cap Lock, 3/8-16 x .75 Gr5 Price: $5.91 |
| 18 |
710-3144 |
Screw, Hex Cap, 3/8-16 x 2.0 Gr5 Price: $4.02 |
| 19 |
711-04554 |
SPACER .479 x .75 x 4.97 Not Available Price: |
| 20 |
911-0832 |
Ferrule, 3/8-24 x .375 This part replaces 711-0832. Price: $13.68 |
| 21 |
712-0290 |
Nut, Hex Lock, 7/16-14 GrA Price: $4.05 |
| 22 |
712-0346 |
Nut, Hex Jam Insert Lock, 1/2-20 Gr5 Price: $3.95 |
| 23 |
21545100 |
OIL FILTER, TRANSMISSION This part replaces 21544900. Price: $36.95 |
| 23 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 24 |
712-3050 |
Nut, Lug, 7/16-14 Price: $9.17 |
| 25 |
712-04063 |
Nut, Hex Flange Insert Lock, 5/16-18 GrF Price: $3.56 |
| 26 |
712-04065 |
Nut, Hex Flange Insert Lock, 3/8-16 GrF Price: $3.68 |
| 27 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 28 |
714-0111 |
Pin, Cotter, 3/32 x 1/0 Price: $4.20 |
| 29 |
714-04040 |
Pin, Bowtie Cotter Price: $1.28 |
| 30 |
21500013 |
Seal, lip .375 x 375 x 325 Price: $4.45 |
| 30 |
715-0143 |
Pin, Spirol, .25 x 1.25 Price: $4.04 |
| 31 |
08622500 |
RING. RETAINING Price: $7.45 |
| 31 |
725-0157 |
Tie, Cable Price: $3.46 |
| 32 |
HG-51362 |
HYDRO FAN-I SER This part replaces 731-05846. Price: $19.54 |
| 33 |
21543846 |
RING, RET .750 Price: $1.55 |
| 33 |
731-06274 |
AXLE SLEEVE 1.02 ID x 2.60 LG Not Available Price: |
| 34 |
21548901 |
HG BYPASS ARM (52370) Price: $9.45 |
| 34 |
732-0335 |
SPRING Not Available Price: |
| 35 |
21543848 |
RING, RTNG . Price: $4.45 |
| 35 |
732-0716D |
Spring, Extension, .59 Od x 4.00 This part replaces 732-0716C. Price: $11.49 |
| 36 |
732-0814 |
Spring, Extension, .56 x 5.52 Price: $7.29 |
| 37 |
735-0239A |
FOOT PAD 4.0" LG This part replaces 735-0239. Price: $10.76 |
| 38 |
735-04117 |
Pad, Reverse Pedal Price: $5.68 |
| 39 |
735-04118A |
Pad, Pedal, Forward This part replaces 735-04118. Price: $12.95 |
| 40 |
21543783 |
TRUNNION, SWASHPLATE Price: $56.95 |
| 40 |
736-0187 |
Washer, Flat, .64 x 1.24 x .06 HT Price: $4.02 |
| 41 |
21543809 |
SEAL, LIP 18X32X7 Price: $8.45 |
| 41 |
736-0227 |
Washer, Flat, .39 x 1.5 x .134 Price: $5.78 |
| 42 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 43 |
736-3010 |
Washer, Flat, .407 x .812 x .135 HT Price: $4.02 |
| 44 |
736-04263 |
Washer, Hydro Lock Price: $5.94 |
| 45 |
08611200 |
WASHER Price: $3.45 |
| 45 |
736-3027 |
FLAT WASHER Not Available Price: |
| 46 |
736-3039 |
Washer, Flat, .406 x 1.5 x .105 Price: $4.42 |
| 47 |
736-3050 |
Washer, Flat, .406 x .812 x .051 Price: $3.90 |
| 48 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 49 |
938-0155 |
Shoulder, Screw .437 This part replaces 738-0155. Price: $6.01 |
| 50 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 51 |
738-04240 |
Nut, Shoulder, .375 Dia x .5 Price: $5.88 |
| 52 |
941-0225 |
Bearing, Hex Flange This part replaces 741-0225. Price: $6.55 |
| 53 |
741-3065B |
Bearing, Hex Flange, .625 ID Split Price: $7.45 |
| 54 |
747-04562A |
Rod, Park Brake Price: $14.90 |
| 55 |
21543773 |
WASHER 1.23X1.56X.04 Price: $5.45 |
| 55 |
747-04584A |
Rod, Brake Price: $23.03 |
| 56 |
21543816 |
SEAL, LIP 17X40X7 Price: $11.95 |
| 56 |
747-04598 |
DRIVE ENGAGEMENT ROD Not Available Price: |
| 57 |
21543741 |
RING, RET 1.56 INT Price: $6.45 |
| 57 |
747-04729 |
BYPASS RODS Not Available Price: |
| 58 |
748-04155 |
SPACER Not Available Price: |
| 59 |
750-04456 |
Spacer, .26 x .372 x 1.42 Price: $6.20 |
| 60 |
21548902 |
HG THRUST BEARING (51462) Price: $25.45 |
| 60 |
750-04776 |
Spacer, .38 x .625 x .265 Price: $4.75 |
| 61 |
750-05026 |
SPACER-.375 x .500 x 2.0 Not Available Price: |
| 62 |
954-04134 |
V-Belt This part replaces 754-04134. Price: $38.46 |
| 63 |
756-04224 |
Pulley, Flat Idler, 2.75 Price: $24.80 |
| 64 |
21548904 |
HG 16CC CYLINDER BLOCK (71579) Price: $60.95 |
| 64 |
756-04274 |
Pulley, V Type, 4.5 Price: $55.34 |
| 65 |
21548903 |
HG THRUST BLOCK (53502) Price: $19.75 |
| 65 |
756-04325 |
Pulley, V Type Idler, 3.06 Price: $22.60 |
| 66 |
783-04570B-0637 |
Idler Arm This part replaces 783-04570A. Price: $17.04 |
| 67 |
783-04881A-0637 |
SUPPORT BRACKET Not Available This part replaces 783-04881A. Price: |
| 68 |
783-04981 |
PARK BRAKE BRACKET Not Available Price: |
| 69 |
21548905 |
HG SEVEN PISTON BLOCK (71971) Price: $67.95 |
| 69 |
783-05330A-0637 |
Support Bracket This part replaces 783-05330A. Price: $36.37 |
| 70 |
21543708 |
WASHER .63X1.0X.05 Price: $3.45 |
| 70 |
783-05473-0637 |
BELT KEEPER BRACKET Not Available This part replaces 783-05473. Price: |
| 71 |
21543704 |
RING, RET 62 EXT Price: $1.45 |
| 71 |
783-05880A-0637 |
HYDRO DRIVE PEDAL Not Available This part replaces 783-05880. Price: |
| 72 |
918-04339A |
Transmission, Hydro RH Price: $1,607.45 |
| 73 |
918-04342A |
Transmission, Hydro LH Price: $1,607.45 |
| 74 |
21543788 |
WASHER .71 X 1.16 X .04 Price: $2.95 |
| 74 |
725-04363 |
Switch, Interlock (Brake) Price: $13.25 |
| 75 |
725-04374 |
REVERSE JUMPER HARNESS Not Available Price: |
| 76 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 77 |
926-0320 |
Plate, Insulator Nut This part replaces 726-0320. Price: $6.01 |
| 78 |
738-04237A |
Screw, Shoulder, #10-32 : .5 Price: $5.30 |
| 79 |
734-1730 |
Tire, 20 x 8 x 8 Price: $176.31 |
| 79 |
934-0246A |
RIM ASSEMBLY (8 x 6.19) This part replaces 634-0246A. Price: $117.83 |
| 79 |
934-0255 |
Valve, Tubeless Air Price: $3.83 |
| 80 |
21543724 |
WASHER .5X1.0X.032 Price: $2.95 |
| 83 |
21543793 |
JACK SHAFT (PIN) Price: $17.95 |
| 90 |
08616500 |
RING, RETAINING Price: $8.45 |
| 91 |
21500035 |
GEAR, 54T Price: $61.45 |
| 93 |
21500082 |
KIT, BEARING Price: $17.95 |
| 94 |
21500040 |
GEAR, 54T Price: $112.45 |
| 95 |
08614000 |
BEARING, BALL 25.4 X 52 X 15 Price: $19.95 |
| 96 |
08614300 |
SEAL, LIP Price: $13.95 |
| 97 |
21500051 |
KIT, HUB 4 BOLT Price: $66.45 |
| 102 |
21548906 |
HG ACTUATING KIT HANDLE This part replaces 21544068. Price: $20.45 |
| 103 |
21544007 |
CLIP,BRAKE ARM HYDROGEAR 52027 Price: $5.45 |
| 111 |
21544058 |
KIT, FITTING 1/2 BEADED 9/16 Price: $29.45 |
| 140 |
21543870 |
SPACER Price: $9.95 |
| 141 |
21543867 |
ARM, NEUTRAL LEFT Price: $17.45 |
| 142 |
21543843 |
SHCS 5/16-24X1 PATCH Price: $3.95 |
| 147 |
TCU19204 |
SPRING, EXTENSION Price: Call Us |
| 156 |
21500034 |
CAP, AXLE Price: $4.45 |
| 158 |
21543799 |
MAGNET, RING Price: $2.45 |
| 159 |
21500036 |
SPRING, TORSION, CW Price: $8.45 |
| 200 |
21544034 |
HG SEAL KIT (71976) Price: $46.45 |
| 201 |
21500073 |
KIT, CENTER SECTION, LH CHARGE Price: $267.95 |
| 203 |
21544071 |
KIT, CHARGE PUMP Price: $86.95 |
| 207 |
21544079 |
KIT, FAN/PULLEY Price: $62.45 |
| 502022902 |
502022801 |
HARNESS HOOK, COMPLETE This part replaces 502022902. Price: $11.99 |
| 502023002 |
502022801 |
HARNESS HOOK, COMPLETE This part replaces 502023002. Price: $11.99 |
| 502023801 |
586341001 |
SPRING LOCKING This part replaces 502023801. Price: $3.99 |
| 503996101 |
503996101 |
BAND Price: $3.99 |
| 503996103 |
503996103 |
BAND Price: $3.99 |
| 537113501 |
537287001 |
BUCKLE This part replaces 537113501. Price: $6.99 |
| 537175401 |
537175401 |
RIVET Price: $3.99 |
| 537275901 |
537275901 |
PROTECTOR Price: $27.99 |
| 537288301 |
537288301 |
FRONT PIECE Price: $6.99 |
| 537288401 |
537288401 |
FRONT PIECE Price: $17.99 |
| 735310920 |
735310920 |
E-RING 5 Price: $3.99 |
