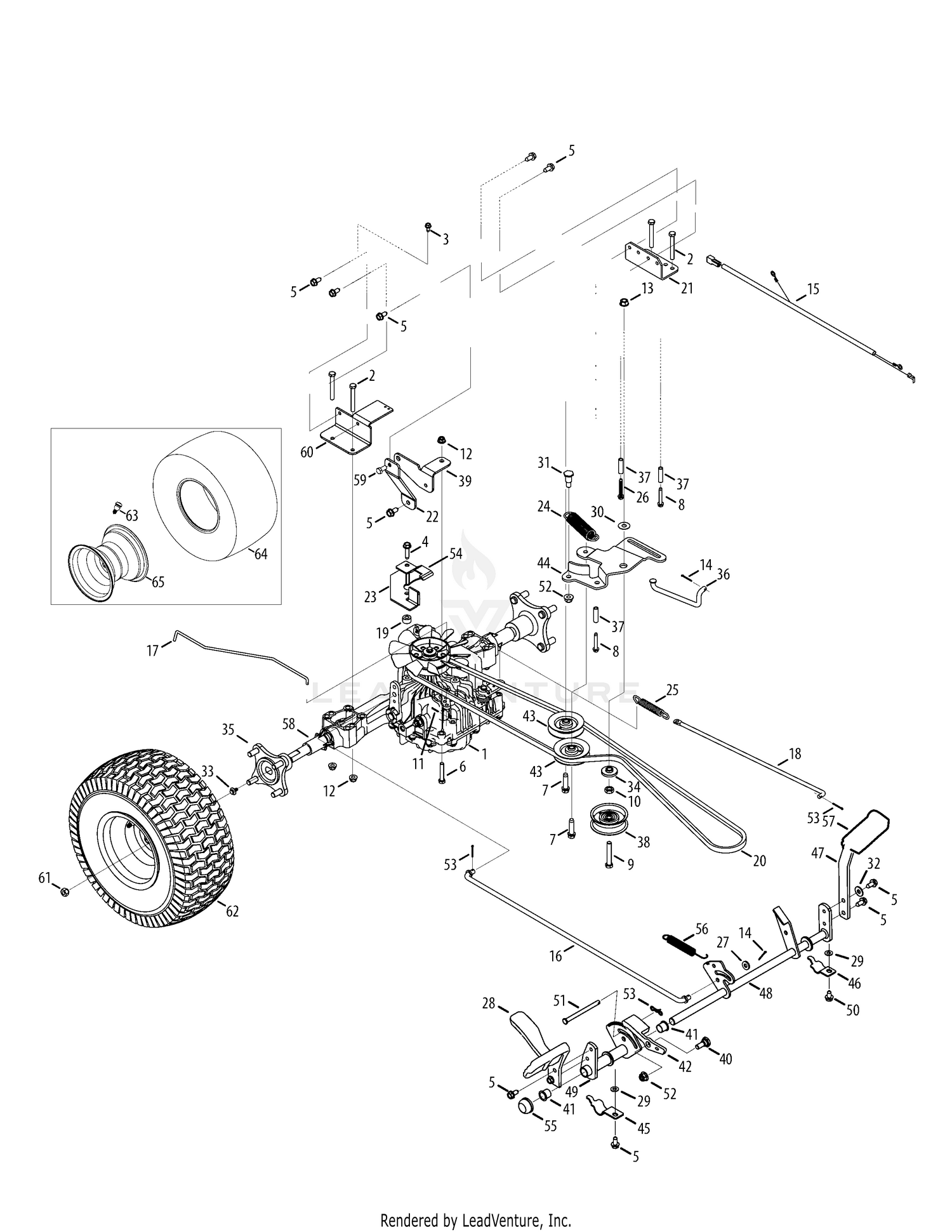

| Ref | Part Number | Description |
|---|
| 1 |
753-10425 |
SERVICE KIT-HYDRO TRANS (618-05100) This part replaces 918-05100. Price: $1,446.70 |
| 2 |
710-0378 |
Hex Screw, 5/16-18, 2.50, Gr5, Std Price: $4.09 |
| 3 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.500 Price: $3.86 |
| 4 |
710-0817 |
Screw, Self-tapping, 5/16-18, 1.250 Price: $5.77 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-3180 |
Hex Screw, 5/16-18, 1.75, Gr5 Price: $4.93 |
| 7 |
710-1007 |
Screw, Self-tapping, 3/8-16, 1.500 Price: $5.71 |
| 8 |
710-1325 |
Screw, Self-tapping, 1/4-20, 1.625 Price: $4.11 |
| 9 |
710-3011 |
Hex Screw, 3/8-16, 2.25, Gr5 Price: $6.49 |
| 10 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 Price: $3.90 |
| 11 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 12 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 13 |
912-0431 |
Nut, Flange Lock, 3/8-16 Price: $4.29 |
| 14 |
714-3010 |
Pin, Cotter, 3/32, .625 Price: $4.08 |
| 15 |
725-05335 |
REVERSE JUMPER HARNESS Not Available Price: |
| 16 |
747-05447 |
Rod, Control, Tuff-Torq Price: $83.07 |
| 17 |
747-05448 |
Rod, Hydro Bypass Price: $62.74 |
| 18 |
747-05452 |
BRAKE ROD Not Available Price: |
| 19 |
750-05512 |
Spacer, .330 x .715 x .430 Price: $16.76 |
| 20 |
954-04297 |
Belt, V-Type Price: $58.19 |
| 21 |
783-06849-0637 |
AXLE MOUNTING BRACKET (LH) Not Available Price: |
| 22 |
783-07349-0637 |
TRANSMISSION TORQ BRACKET Not Available Price: |
| 23 |
783-07260-0637 |
BELT KEEPER BRACKET Not Available Price: |
| 24 |
732-04792 |
Spring, Extension, 1.00 Dia x 4.75 Price: $7.94 |
| 25 |
732-0716D |
Spring, Extension, .59 Od x 4.00 Price: $11.49 |
| 26 |
710-1026 |
Screw, Self-tapping, 1/4-20 x 1.75 Price: $5.94 |
| 27 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 28 |
719-0584B-0637 |
Control Pedal Price: $52.81 |
| 29 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 30 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 31 |
738-0430 |
Scr, Shldr, .50 x .685 3/8-16 Price: $10.55 |
| 32 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 33 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 34 |
738-04420 |
SHOULDER SPACER 1.375X.380X.183 Price: $6.01 |
| 35 |
918-04228A |
Hub Assembly, Wheel This part replaces 918-04228. Price: $44.07 |
| 36 |
747-04957A |
FOOTPEDAL BYPASS ROD Not Available Price: |
| 37 |
750-04456 |
Spacer, .260 x .372 x 1.420 Price: $6.20 |
| 38 |
756-04224 |
Pulley, Idler, Flat 2.75 OD Price: $24.80 |
| 39 |
783-07350-0637 |
Bracket, Support Price: $26.03 |
| 40 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 41 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 42 |
748-04203 |
Latch, Cruise Price: $12.39 |
| 43 |
756-04325 |
Pulley, Idler, V-Type x 3.06 Price: $22.60 |
| 44 |
783-06027B |
DOUBLE IDLER BRACKET Not Available Price: |
| 45 |
783-05914 |
Bracket, Support, Pedal Strap Price: $6.23 |
| 46 |
783-05940 |
Bracket, Support, Pedal Strap 5/8 Price: $6.17 |
| 47 |
783-06103A-0637 |
FOOT BRAKE PEDAL (POWDER BLACK) Not Available Price: |
| 48 |
647-04152D |
BRAKE PEDAL SHAFT ASSEMBLY Not Available Price: |
| 49 |
683-04537A |
DRIVE SHAFT ASSEMBLY Not Available This part replaces 683-04537. Price: |
| 50 |
710-0604A |
Screw, Self-tapping, 5/16-18, 0.625, Price: $3.96 |
| 51 |
711-05068A |
Pin, Clevis, 5/16 x 3.985 Price: $6.64 |
| 52 |
712-04065 |
Nut, Flange Lock, 3/8-16, Nylon Price: $3.68 |
| 53 |
714-04040 |
Pin, Cotter, Bow-Tie 72 Price: $1.28 |
| 54 |
783-07347-0637 |
BELT PLATE BRACKET Not Available Price: |
| 55 |
726-0214 |
Cap, Push 5/8 Price: $9.11 |
| 56 |
732-04587 |
Spring, Extension, .63 Dia x 4.95 Price: $6.51 |
| 57 |
735-04136 |
Pad, Pedal, Brake Price: $13.49 |
| 58 |
731-08237 |
Sleeve, .765 Id x 2.11 Price: $3.49 |
| 59 |
710-0216 |
Hex Cap Screw, 3/8-16 x .75 Price: $3.93 |
| 60 |
783-07295-0637 |
AXLE BRACKET (RH) Not Available Price: |
| 61 |
712-3050 |
Lug Nut Price: $9.17 |
| 62 |
634-04210-0911 |
WHEEL ASSEMBLY (22 x 9.5 x 12) (OYSTER-CARLISLE) Not Available Price: |
| 63 |
934-0255 |
Tubeless Air Valve Price: $3.83 |
| 64 |
734-04174 |
Tire Price: $105.48 |
| 65 |
634Z04238-0662 |
RIM ASSEMBLY (12 x 7) (OYSTER GREY) This part replaces 634-04238-0662. Price: $173.78 |
