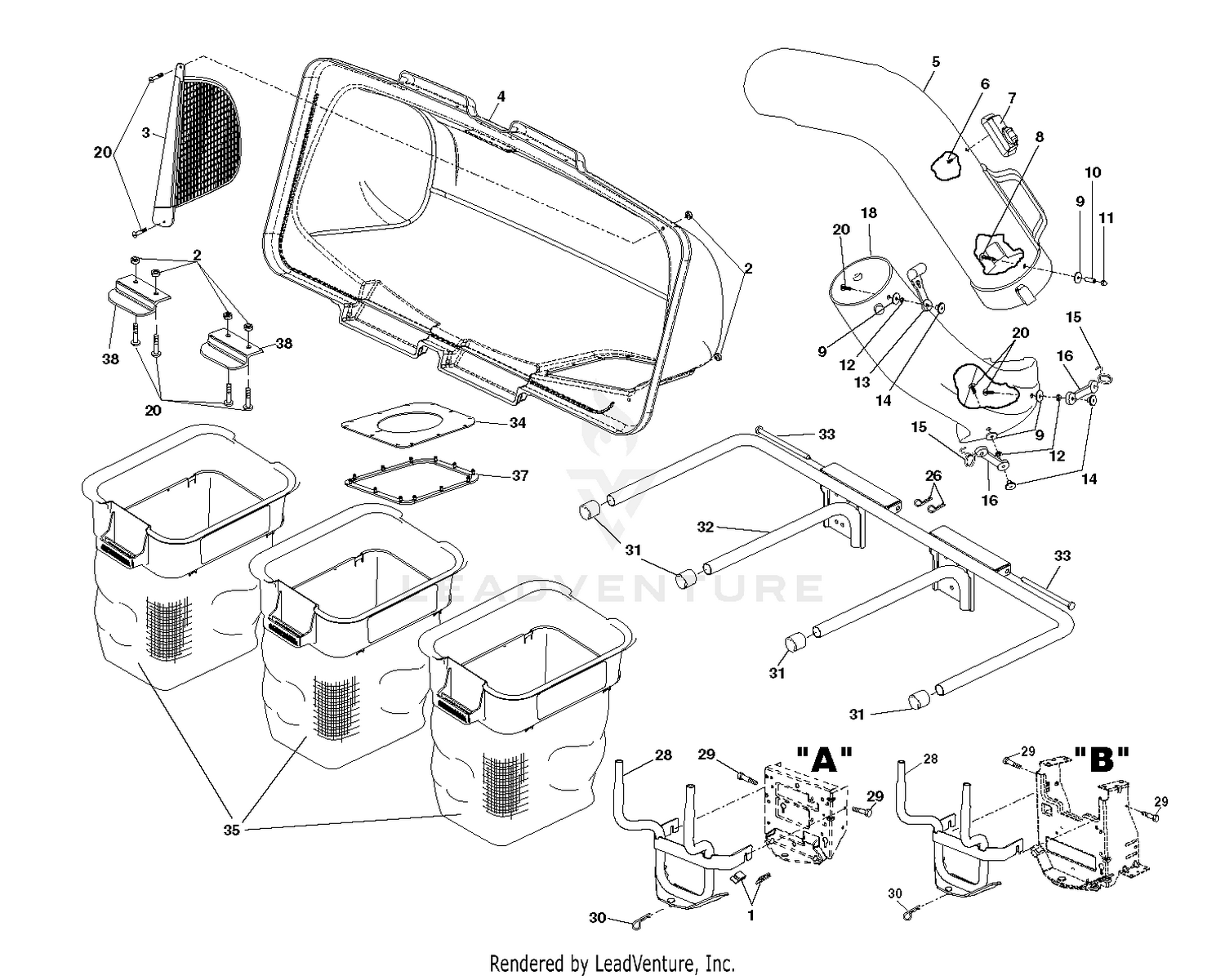

| Ref | Part Number | Description |
|---|
| 1 |
532401047 |
ADAPTER.LT.3-BIN.QA.TEX Price: $3.99 |
| 1 |
93-3199-03 |
RH SPINDLE ASM This part replaces 93-3199. Price: $366.74 |
| 2 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
532069180 |
LOCKNUT Price: $2.99 |
| 3 |
532192709 |
SCREEN.COVER.BAGGER Price: $17.99 |
| 3 |
92-7807-01 |
REAR AXLE PIN ASM This part replaces 92-7807. Price: $151.97 |
| 4 |
532195373 |
COVER.ASM.3BIN.GENERIC. Price: $229.99 |
| 4 |
67-1750 |
BUSHING Price: $0.92 |
| 5 |
32128-23 |
NUT-HF Price: $1.51 |
| 5 |
585729501 |
CHUTE UPPER Price: $64.99 |
| 6 |
818021008 |
SCREW Price: $4.99 |
| 6 |
92-7803-01 |
AXLE SUPPORT ASM This part replaces 92-7803. Price: $958.49 |
| 7 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 7 |
532130933 |
INDICATOR ASM BAG Price: $6.99 |
| 8 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $4.99 |
| 9 |
32146-20 |
NUT-HEX Price: $3.23 |
| 9 |
819061216 |
WASHER Price: $3.99 |
| 10 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 10 |
532007206 |
SPACER LT Price: $5.99 |
| 11 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 12 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 12 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 13 |
237-22 |
O-RING Price: $2.43 |
| 13 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 14 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 14 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 15 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 15 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130760. Price: $5.99 |
| 16 |
115-4524 |
CYLINDER-HYDRAULIC This part replaces 92-7828. Price: $914.47 |
| 16 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130759. Price: $5.99 |
| 17 |
5-1226 |
WASHER Price: $3.90 |
| 18 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 21 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 22 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 23 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 24 |
231-105 |
TIRE-RIBBED Price: $62.56 |
| 25 |
3220-7 |
NUT-JAM Price: $4.09 |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 26 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 27 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 28 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 28 |
535280001 |
BRACKET This part replaces 532198364. Price: $74.99 |
| 29 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 29 |
532176997 |
SHOULDER BOLT, SELF-TAP Price: $5.99 |
| 30 |
21-2820 |
HUB Price: $269.34 |
| 30 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 31 |
253-129 |
SEAL Price: $21.73 |
| 31 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 32 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 32 |
532176990 |
BAGGER.ASM.FRAME.3BIN.BLACK Price: $84.99 |
| 33 |
532192786 |
BAGGER.HINGE.PIN Price: $14.99 |
| 33 |
99-1292-03 |
LH SPINDLE ASM This part replaces 93-3198. Price: $366.74 |
| 34 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 34 |
532192550 |
SEAL.BAGGER.TOP.3-BIN.BLK Price: $17.99 |
| 35 |
100-6566-03 |
REAR AXLE ASM This part replaces 92-7816. Price: $926.46 |
| 35 |
532400226 |
CONTAINER BAG, SOFT Price: $69.99 |
| 36 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 37 |
3220-6 |
NUT-JAM Price: $1.25 |
| 37 |
532192603 |
GASKET.COVER.BAGGER Price: $8.99 |
| 38 |
92-7821 |
DISCONTINUED Price: Call Us |
| 39 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 40 |
3220-5 |
NUT-JAM Price: $0.65 |
| 41 |
256-242 |
BUSHING Price: $3.32 |
| 42 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 43 |
3220-3 |
NUT-HJ Price: $0.28 |
| 45 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 51 |
99-2413-01 |
COVER-GUARD, FLYWHEEL This part replaces 93-7042. Price: $22.07 |
| 52 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 53 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 54 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 55 |
92-7845 |
SPACER-HARDENED Price: $7.44 |
| 56 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
