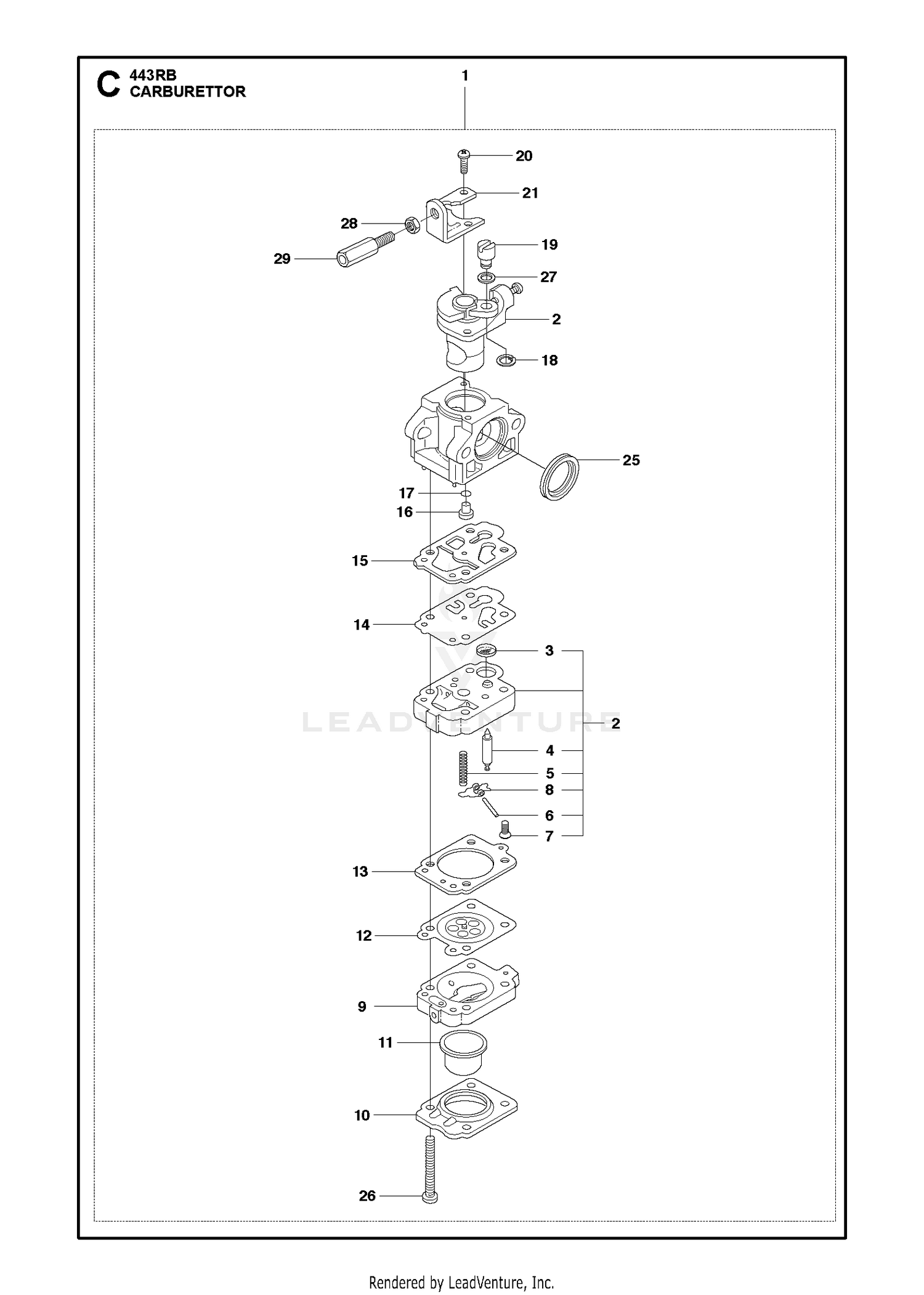

CARBURETOR
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512225701 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 4 | 521085401 | VALVE INLET Price: $11.99 |
| 5 | 505306001 | SPRING Price: $2.99 |
| 6 | 520977401 | PIN Price: $4.99 |
| 7 | 505306101 | SCREW Price: $2.99 |
| 8 | 520977201 | LEVER Price: $4.99 |
| 9 | 506740901 | BODY Price: $19.99 |
| 11 | 505306701 | PUMP Price: $7.99 |
| 12 | 505056401 | DIAPHRAGM Price: $14.99 |
| 13 | 506740801 | GASKET Price: $7.99 |
| 14 | 506689801 | DIAPHRAGM Price: $3.99 |
| 15 | 516160601 | RP GASKET, PUMP This part replaces 505307201. Price: $5.99 |
| 16 | 505307401 | JET #45 Price: $8.76 |
| 17 | 505307501 | O-RING Price: $3.99 |
| 18 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 19 | 506741201 | SWIVEL Price: $4.99 |
| 20 | 505307901 | SCREW Price: $2.99 |
| 21 | 506746001 | BRACKET Price: $8.99 |
| 25 | 505308401 | RING PACKING Price: $3.99 |
| 26 | 506741101 | SCREW Price: $2.99 |
| 27 | 506746101 | WASHER Price: $2.99 |
| 28 | 510487401 | NUT This part replaces 506612601. Price: $2.99 |
| 29 | 515466101 | SCREW Price: $9.99 |
