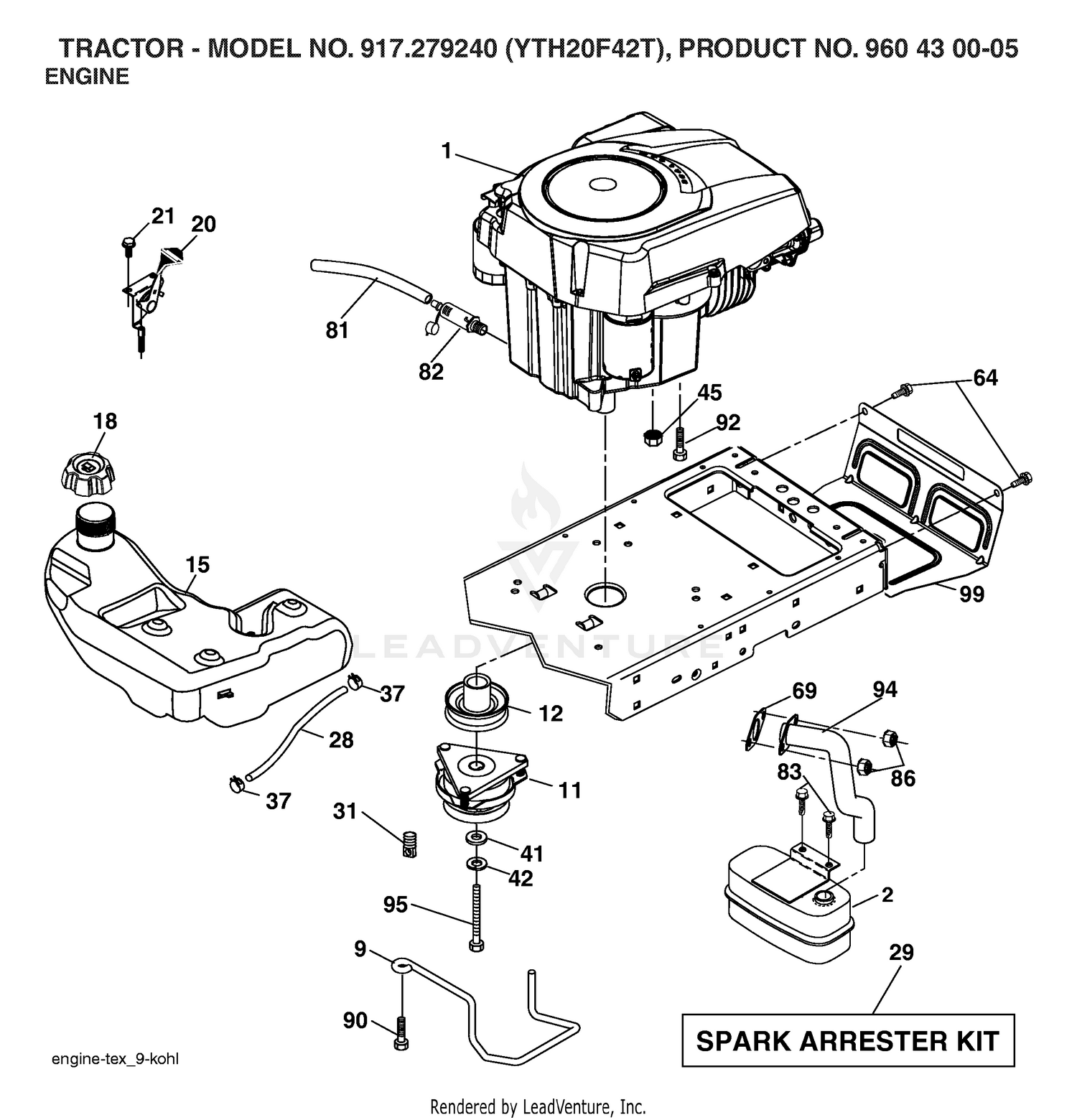

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 3 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 6 |
13-6460 |
WHEEL-CASTER Price: $238.80 |
| 7 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
13-6450-01 |
CASTER This part replaces 13-6450. Price: $242.02 |
| 9 |
325-13 |
SCREW-HH Price: $3.57 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
13-5680 |
JACK This part replaces 13-6750. Price: $396.42 |
| 11 |
13-3510 |
BEARING-THRUST Price: $25.53 |
| 12 |
13-3610 |
SLEEVE-FELT Price: $9.36 |
| 12 |
532194338 |
PULLEY.ASM.ENG.OGURA.3 Price: $54.99 |
| 13 |
13-5680 |
JACK Price: $396.42 |
| 14 |
13-6730 |
RIVET Price: $0.25 |
| 15 |
13-6740 |
HANDLE Price: $27.49 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145005 |
DECAL BTRY SYMBOLS Price: $3.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 64 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 99 |
532194329 |
SHIELD.BROWNING/DEBRIS Price: $17.99 |
