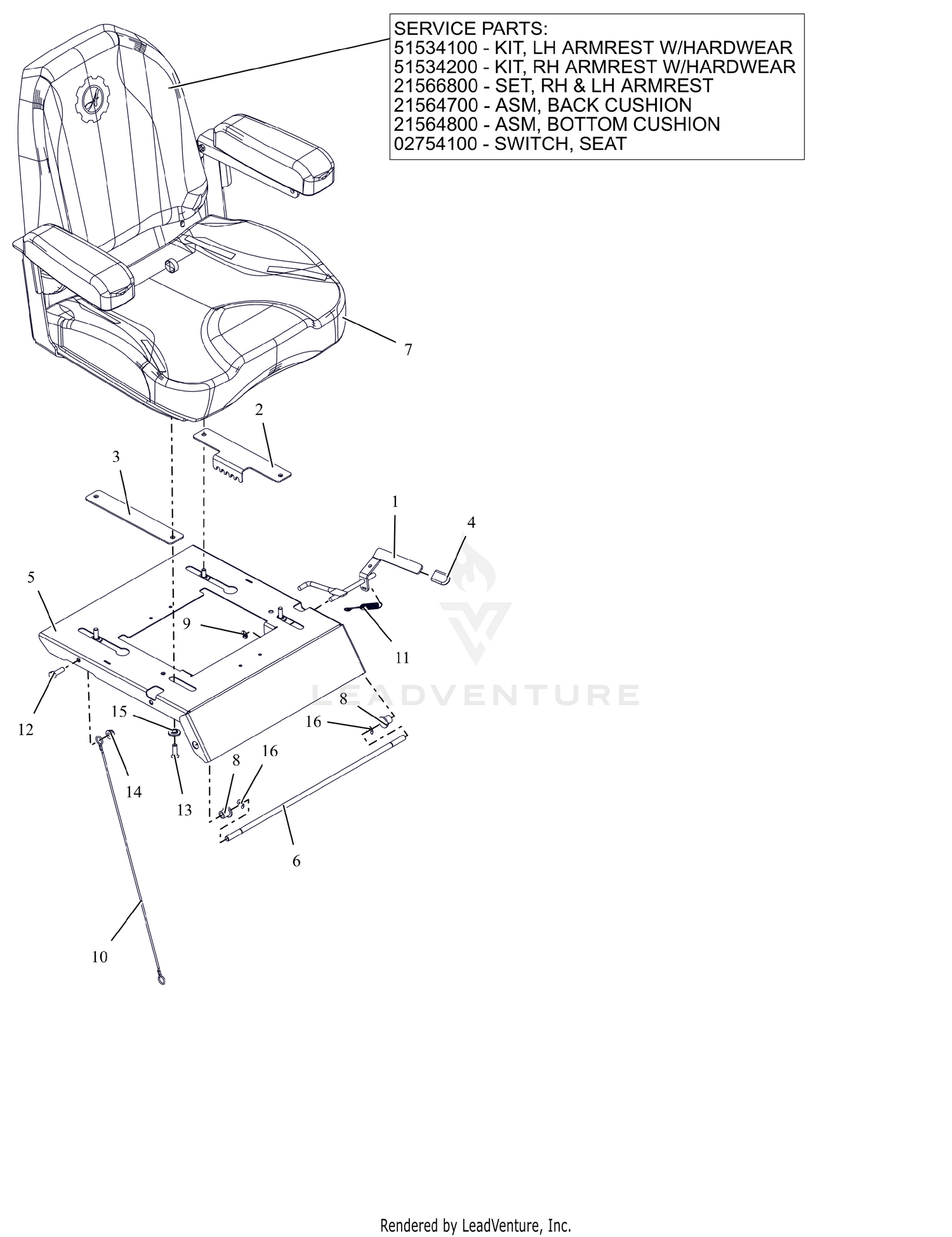

| Ref | Part Number | Description |
|---|
| 1 |
04756451 |
WLDMT, ADJUSTABLE SEAT LATCH Price: $24.45 |
| 2 |
04376951 |
PLATE, ADJUSTABLE SEAT TRACK Price: $12.45 |
| 3 |
04377051 |
PLATE, ADJUSTABLE SEAT SLIDE Price: $20.45 |
| 4 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 5 |
04757059 |
PLATE, SEAT Price: $60.95 |
| 6 |
09448000 |
ROD- SEAT PIVOT This part replaces 04816200. Price: $10.95 |
| 7 |
05176100 |
SEAT, IKON XL Price: $469.45 |
| 8 |
05501231 |
BSHG-FLG .38X.580X.667X.750 Price: $2.45 |
| 9 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 10 |
06900623 |
LANYARD, SEAT CABLE .093X19.5 Price: $10.95 |
| 11 |
08321100 |
SG-TENS .043X.44X3.31 WLD 5.8 Price: $5.45 |
| 12 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 13 |
05901840 |
BLT,SHCS-BTN .31-18X1.00 ZCC Price: $2.45 |
| 14 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 15 |
05501328 |
BSHG, FLG .312X.499X.23X.88 Price: $1.95 |
