| Ref | Part Number | Description |
|---|
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
98-1459 |
DECAL Price: $3.93 |
| 3 |
138457 |
BRKT.ASM.SW.44/50 Price: Call Us |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 8 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 13 |
137553 |
SHAFT.ASM.W/BRNG Price: Call Us |
| 14 |
137152 |
HOUSING.MAND.44.V Price: Call Us |
| 14 |
98-3912 |
TUBE ASM Price: $113.52 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
98-3910 |
TUBE ASM Price: $115.74 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
145055 |
BAFFFLE.VORTEX.46 Price: Call Us |
| 20 |
98-3908 |
TUBE ASM Price: $92.85 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
94-9951 |
COLUMN-STEERING Price: $366.29 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
98-3909 |
TUBE ASM Price: $85.32 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
149287 |
SUB= 123713X Price: Call Us |
| 25 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
130-7945 |
VALVE-STEERING CONTROL This part replaces 99-8959. Price: $1,130.87 |
| 27 |
157788 |
SHIELD DEFLECTOR Price: Call Us |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 30 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 32 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 33 |
104-9324 |
SPEEDOMETER Price: $312.55 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
144945 |
ANCHOR.SPRING.46 Price: Call Us |
| 34 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 35 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 35 |
17490628 |
SCREW LT Price: Call Us |
| 36 |
19131316 |
WASHER Price: Call Us |
| 36 |
98-3911 |
TUBE ASM Price: $108.87 |
| 37 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 38 |
322-7 |
SCREW-HH Price: $0.89 |
| 39 |
144917 |
PULLEY.DRV.DCK.46 Price: Call Us |
| 39 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
17490620 |
SCREW Price: Call Us |
| 41 |
69-8970 |
SPACER Price: $9.57 |
| 42 |
122052X |
SPACER RETAINER Price: Call Us |
| 42 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 43 |
144949 |
ARM.IDLER.DECK.46 Price: Call Us |
| 43 |
340-70 |
NUT-LOCK Price: $2.10 |
| 44 |
133943 |
HARDENED WASHER Price: Call Us |
| 44 |
69-8940 |
WASHER Price: $1.76 |
| 45 |
145059 |
COVER.MANDREL.46 Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
144959 |
BELT-V.SEC.46.KEL Price: Call Us |
| 48 |
158818 |
V BELT MOWER Price: Call Us |
| 49 |
73680600 |
SUB= 73690600 Price: Call Us |
| 50 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 51 |
153390 |
WASHER.FELT. Price: Call Us |
| 53 |
19131312 |
WASHER Price: Call Us |
| 54 |
74780616 |
BOLT Price: Call Us |
| 60 |
156722 |
ARM ASM BRAKE Price: Call Us |
| 61 |
161315 |
BOLT.SHOULDER.5/16-18 Price: Call Us |
| 62 |
131870 |
RETURN SPRING Price: Call Us |
| 67 |
74760512 |
BOLT Price: Call Us |
| 68 |
156487 |
SUB= 157060 Price: Call Us |
| 69 |
73350600 |
NUT Price: Call Us |
| 70 |
142028 |
TRUNION ADJ Price: Call Us |
| 71 |
133551 |
PIVOT ROD Price: Call Us |
| 72 |
19131316 |
WASHER Price: Call Us |
| 73 |
76020412 |
COTTER PIN Price: Call Us |
| 74 |
156474 |
LINK CLUTCH Price: Call Us |
| 75 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 76 |
160570 |
LEVER.ASM.CLUTCH Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
127498 |
BUSHING Price: Call Us |
| 79 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 80 |
121748X |
WASHER Price: Call Us |
| 81 |
12000029 |
RING Price: Call Us |
| 82 |
4497H |
RETAINER M Price: Call Us |
| 83 |
129803 |
BOLT Price: Call Us |
| 84 |
162132 |
KNOB.RD.7/16-14 Price: Call Us |
| 85 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 87 |
158373 |
BRACKET.EXTENSION Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 126 |
156472 |
ARM IDLER Price: Call Us |
| 127 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 128 |
6266H |
WASHER .T Price: Call Us |
| 129 |
19133808 |
WASHER T Price: Call Us |
| 157162 |

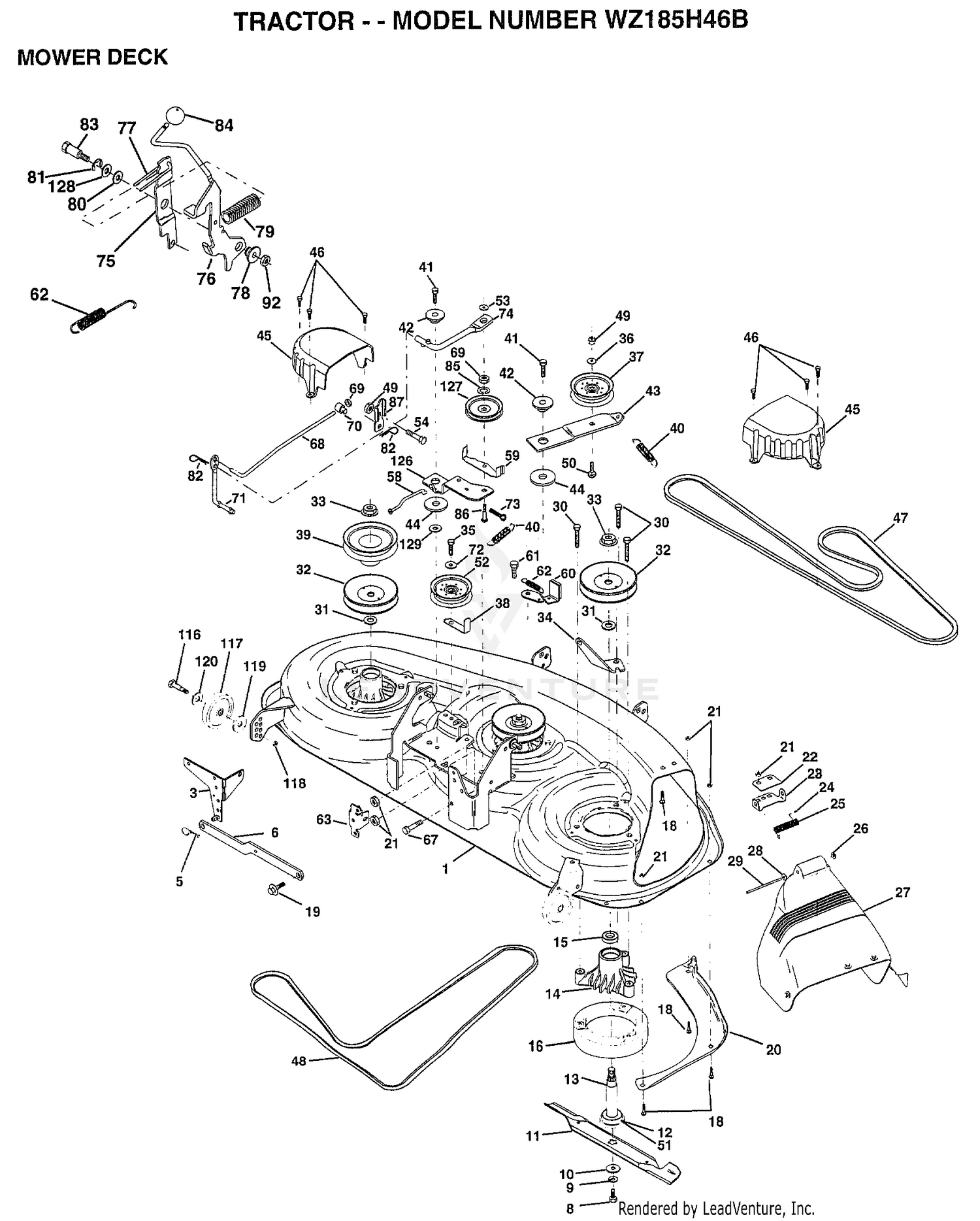

DECK |
SERV 46 MECH Price: Call Us 157162 |
