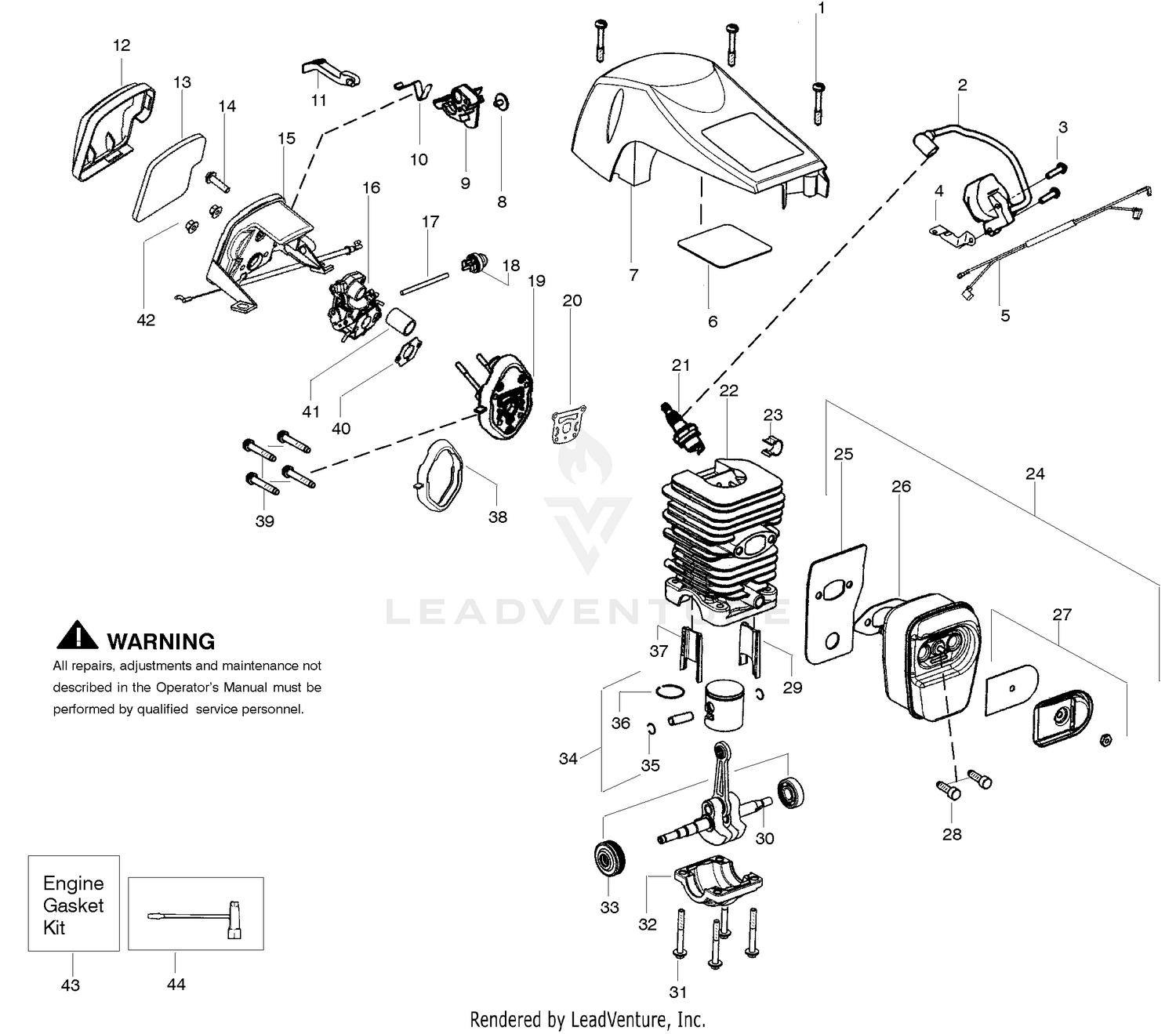

| Ref | Part Number | Description |
|---|
| 0 |
632774 |
CARBURETOR This part replaces 632518. Price: $88.31 |
| 1 |
530016153 |
Screw Price: $1.99 |
| 1 |
632787 |
SHAFT & LEV This part replaces 632512. Price: $5.03 |
| 2 |
545115801 |
Module-Ignition Price: $27.99 |
| 2 |
632685 |
RET SPRING This part replaces 632244. Price: $1.20 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 6 |
632517 |
SHUTTER Price: $1.25 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 10 |
632472 |
SHAFT & LEV Price: $5.16 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 11 |
632473 |
SPRING Price: $1.20 |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 12 |
631184 |
WASHER Price: $1.25 |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 13 |
631183 |
WASHER Price: $1.25 |
| 14 |
530016425 |
Screw Price: $1.99 |
| 14 |
632429A |
SHUTTER Price: $1.25 |
| 15 |
545046901 |
Housing-Air Filter w/cable Price: $14.99 |
| 16 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
| 17 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 17 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 20 |
530071894 |
Gasket-cyl. (kit) Price: $6.99 |
| 20 |
632281 |
IDLE SCREW Price: $2.60 |
| 21 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 21 |
630766 |
SPRING Price: $1.25 |
| 22 |
630739 |
WASHER Price: $1.25 |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 23 |
630740 |
O RING Price: $1.49 |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 26 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 27 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
545015301 |
Insert-Left (black) Cyl. Price: $2.99 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530150392. Price: $49.99 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 37 |
545015401 |
Insert-Right (gray)Cyl. Price: $2.99 |
| 38 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 40 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 40 |
632470 |
NUT Price: $3.86 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 44 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
