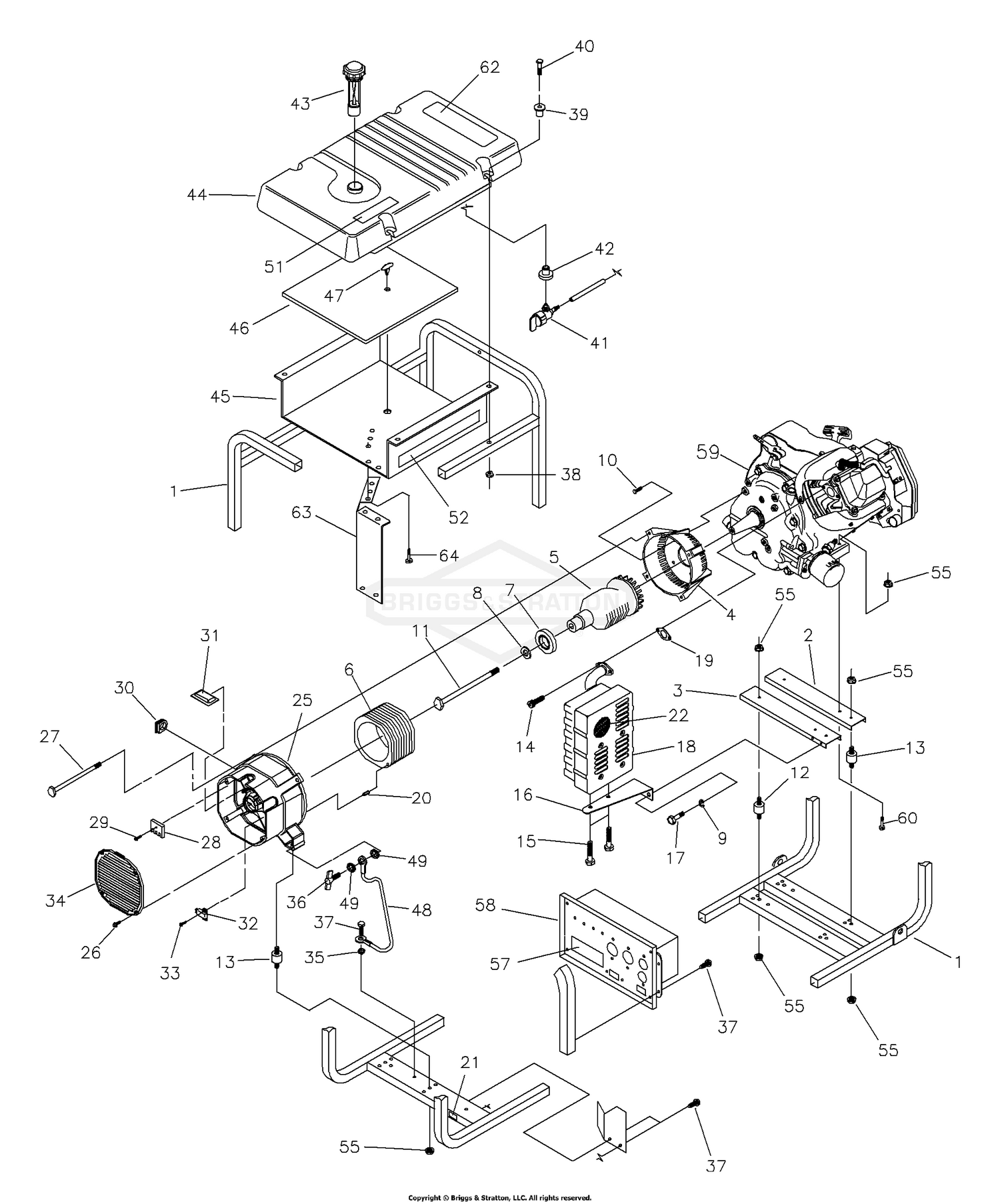

| Ref | Part Number | Description |
|---|
| 1 |
A92432GS |
CRADLE This part replaces A92432. Price: $299.99 |
| 2 |
A92531GS |
SUPPORT, Engine This part replaces A92531. Price: $17.60 |
| 3 |
M92731GS |
SUPPORT, Engine & Muffler This part replaces A92731. Price: $18.20 |
| 4 |
92247GS |
HOUSING, ENGINE ADAPTER This part replaces 92247. Price: $86.95 |
| 5 |
92679GGS |
ASSY, Rotor This part replaces 92679G. Price: Call Us |
| 6 |
92681AGS |
ASSEMBLY, Stator This part replaces 92681G. Price: $494.99 |
| 7 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 8 |
67451 |
WASHER, M8 Flat Price: Call Us |
| 9 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 10 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 11 |
5025254FS |
NUT This part replaces 25254. Price: $1.97 |
| 12 |
92609GS |
MOUNTS,Vibration This part replaces 92609. Price: $24.49 |
| 13 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 14 |
40976 |
SCREW, M8 - 1.25 x 20 Price: Call Us |
| 15 |
66476GS |
SCREW, M6-1 x 12 w/Lock Washer This part replaces 66476. Price: $2.94 |
| 16 |
92532GS |
BRACKET, Muffler This part replaces 92532. Price: $18.18 |
| 17 |
84009650 |
MODULE This part replaces 22142. Price: $40.03 |
| 18 |
A7433GS |
MUFFLER This part replaces A7433. Price: $94.60 |
| 19 |
90239GS |
GASKET, Exhaust This part replaces 90239. Price: $3.73 |
| 20 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 21 |
B4986GS |
DECAL, Ground This part replaces B4986. Price: $2.75 |
| 22 |
83083GS |
SCREEN, Spark Arrest This part replaces 83083. Price: $8.49 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825C. Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 27 |
86308BGS |
BOLT This part replaces 86308B. Price: $1.85 |
| 28 |
65795GS |
RECTIFIER, BATTERY CHARGE This part replaces 65795. Price: $10.80 |
| 29 |
66849AGS |
SCREW This part replaces 66849A. Price: $4.02 |
| 30 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 31 |
84132GS |
ASSEMBLY, POWER REGULATOR This part replaces 84132. Price: $31.80 |
| 32 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 34 |
B4871GS |
COVER, Bearing Carrier This part replaces B4871. Price: $4.15 |
| 35 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 36 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 37 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 38 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 39 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 40 |
78831BGS |
HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60 |
| 41 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 42 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 43 |
B4363GS |
CAP, Fuel Gauge This part replaces B4363. Price: $38.55 |
| 44 |
B1695 |
TANK,Tank 7- Gal Price: Call Us |
| 45 |
208564GS |
HEATSHIELD This part replaces B92039. Price: $107.49 |
| 46 |
92665GS |
INSULATION, # 2-1/4" THICK This part replaces 92665. Price: $10.30 |
| 47 |
85000GS |
CLIP, INSULATION This part replaces 85000. Price: $2.59 |
| 48 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 51 |
194799GS |
DECAL, Danger This part replaces 92982. Price: $10.48 |
| 52 |
92612GS |
DECAL, HTSHLD, 6500XL This part replaces 92612. Price: $5.65 |
| 55 |
189160GS |
NUT, 5/16-18, Flanged Serrated This part replaces 189160. Price: $2.40 |
| 57 |
92640GS |
DECAL, PNL, CNTRL, 6500XL This part replaces 92640. Price: $14.09 |
| 58 |
92630GS |
ASSY, Control Panel This part replaces 92630. Price: $394.99 |
| 59 |
~NSP |
ENGINE Price: Call Us |
| 60 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531. Price: $3.40 |
| 62 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 63 |
192983GS |
SHIELD, Heat This part replaces B96068. Price: $30.99 |
| 64 |
56893GS |
CRIMPTITE, 10-24 x 1/2 This part replaces 56893. Price: $1.95 |
