Home / OPE / Gravely Zero Turn / Rapid XZ / 990100 (000101 - ) Rapid XZ, 27hp Kohler / Weight Transfer

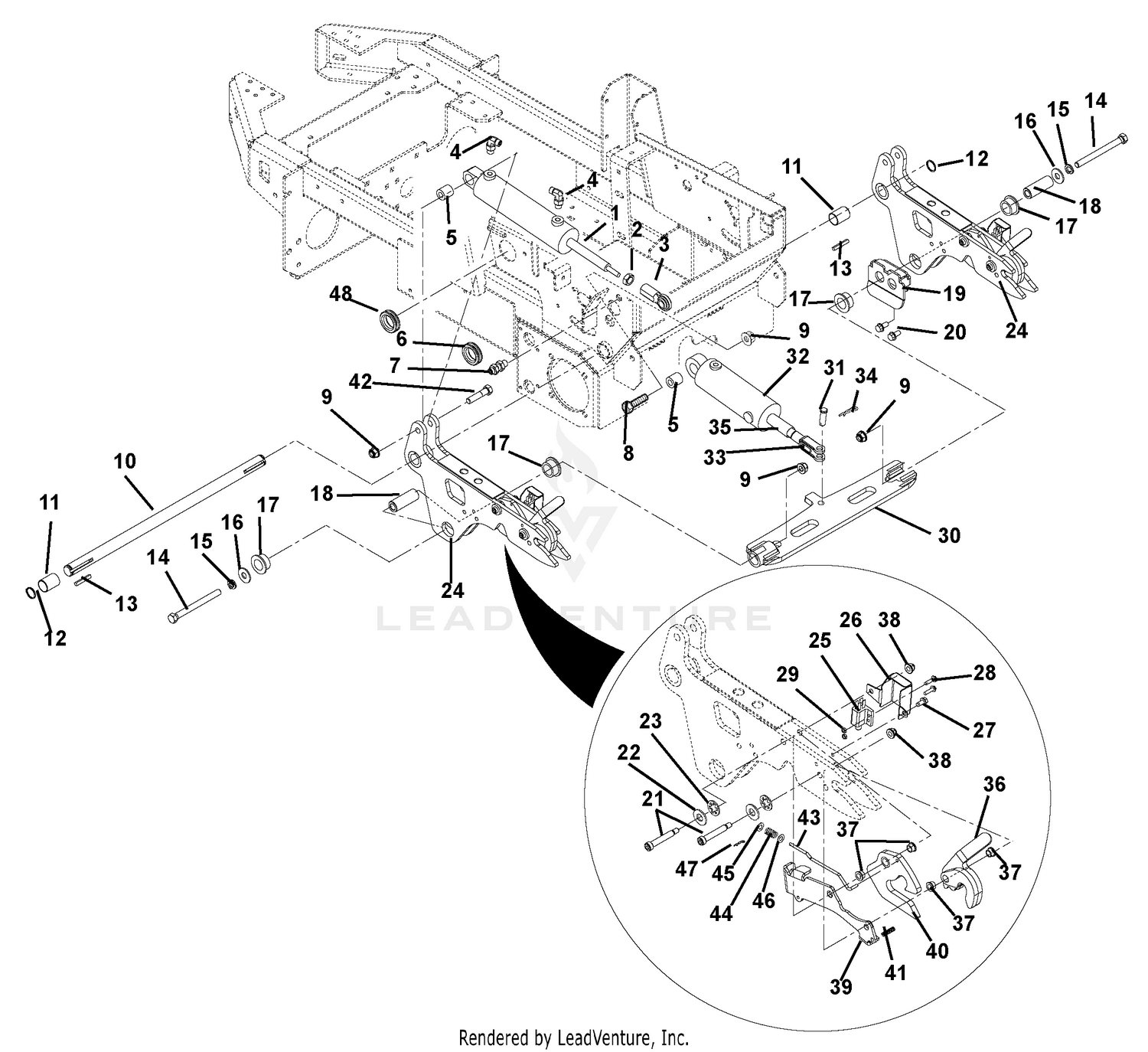

Weight Transfer

Weight Transfer

Parts (46)

RefPart NumberDescription
1 00585100 CYLINDER, HYD. DECK LIFT Price: $190.95
2 06539600 NUT-JAM .625-18 YWZC Price: $3.95
3 09221600 ROD END, 5/8 RH - FEMALE Price: $20.45
4 07000045 ADPTR,HYD FTG 90 M4F-M6O C5OLO Price: $16.45
5 09215200 BUSHING, .516X1.000X1.050 LG Price: $31.95
6 07536800 GROMMET 1.25ID X 1.5OD Price: $12.45
7 07000044 FTG,HYD BULKHEAD M4F-M4F Price: Call Us
8 05901835 BLT, HEX .50-13X2.25 G5 ZCC This part replaces 05961000. Price: $3.45
9 06500810 NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45
10 00606500 SHAFT, MAIN ARM PIVOT OUT FRNT Price: $69.00
11 05500034 BSHG,1.00ID X 1.125OD X 1.50LG Price: $6.45
12 05707300 RG-RTNG-EXT 1.00X.078 Price: $2.95
13 06601800 KEY-STR .25X1.75X.25 Price: $3.45
14 05901632 BLT,HEX .50-13X5.50 G5 ZCC This part replaces 05964100. Price: $6.45
15 06300115 WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95
16 06445000 WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45
17 05520100 BSHG-FLG1.020X1.385X.75X1.75NY Price: $10.45
18 00606600 SPACER 1.00 X .562 X 2.720 Price: $21.95
19 00678851 STOP, DECK BLOCK BLACK Price: $61.45
20 07400129 SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45
21 07000105 BLT SKH SHLD .31X18X2.0 Price: $5.45
22 06401108 WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45
23 06300002 WSHR-LOCK INT .375 Price: $1.95
24 00601151 WMT, LIFT ARM (OUT FRONT) Price: $255.95
25 03657100 SWITCH- SINGLE POLE N.O. Price: $8.45
26 00679451 GUARD, PTO SAFETY SWITCH MOUNT Price: $6.95
27 07400125 SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95
28 05901837 BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95
29 06500915 NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45
30 00867100 WDMT, WEIGHT TRANSFER BAR Price: $76.95
31 06814700 PIN-CLEV .50X1.33 YWZC Price: $5.45
32 00616700 CYLINDER, HYD 2.5 X 4.0 Price: $252.30
33 08797200 YOKE, .50-20 X 3.00 Price: $15.95
34 06714900 PIN, HAIR, EXT - #16 YWZC Price: $0.45
36 00608253 LATCH LEVER Price: $71.45
37 05503600 BSHG-FLG .372X.500X.312X.625NY Price: $1.95
38 06500809 NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45
39 00662751 LATCH SUPPORT PLATE Price: $24.15
40 00676200 LATCH, TILT Price: $74.45
41 08300032 SPRING, LEVER RETENTION Price: $2.95
42 05901712 BLT, HEX .50-13X2.50 G5 ZCC This part replaces 05966600. Price: $3.45
43 00676400 ROD, LATCH TENSION Price: $15.95
44 08300028 SPRING, COMPRESSION Price: $4.45
45 06401001 WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45
46 06401023 WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45
47 06700221 PIN-HAIR INT .06X.18X.77 This part replaces 06701900. Price: $0.45
