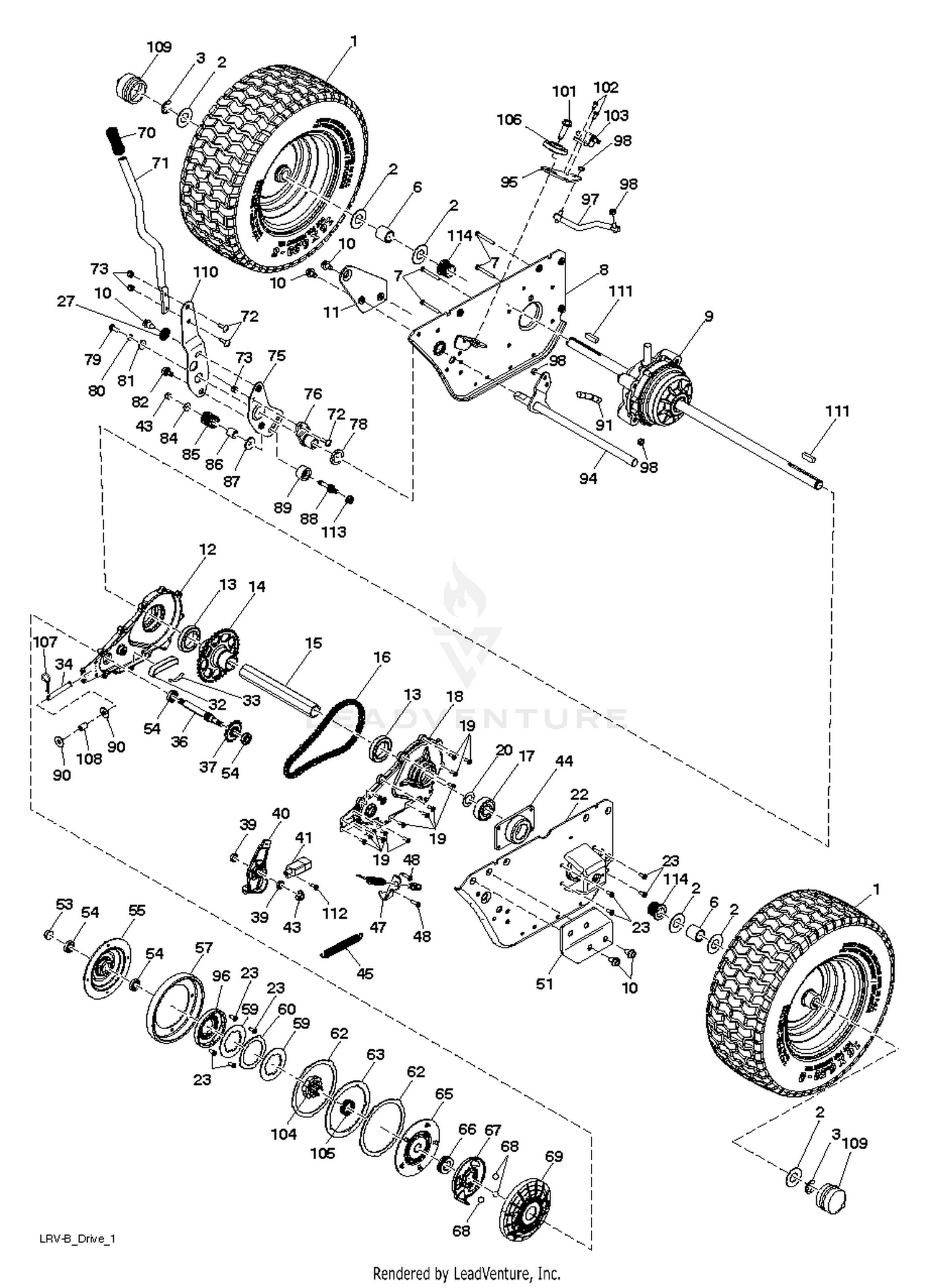

| Ref | Part Number | Description |
|---|
| 1 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 1 |
532442138 |
WHEEL.TUBE.16X5.50-8.MS613 Price: $129.99 |
| 2 |
532121748 |
WASHER Price: $1.99 |
| 2 |
98-8779-01 |
HITCH-TRAILER Price: $59.59 |
| 3 |
812000001 |
E-RING LT Price: $2.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
99-4543-01 |
TONGUE-TRAILER Price: $215.46 |
| 6 |
532156972 |
SPACER, AXLE PVST Price: $3.99 |
| 7 |
874780428 |
HCS.1/4-20 X 1-3/4 GR 5 ZD Price: $2.99 |
| 8 |
532436695 |
WELDMENT.SUPPORT.AXLE.RH Price: $32.99 |
| 9 |
532443989 |
FINAL REDUCTION.LRVB.SERVICE This part replaces 532441936. Price: $249.99 |
| 10 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 11 |
532436741 |
BRACKET.SUPPORT.RH Price: $4.99 |
| 12 |
532447424 |
SUBASM.CHAIN CASE W/BEARING This part replaces 532436148. Price: $39.99 |
| 13 |
532437280 |
BEARING.BALL.6207-2RS Price: $8.99 |
| 14 |
532437176 |
SPROCKET DRIVEN.37. TOOTH Price: $8.99 |
| 15 |
532436147 |
Price: Call Us |
| 16 |
532436153 |
CHAIN.#35.56.PITCHES Price: $11.99 |
| 17 |
532437282 |
BEARING.BALL.6204-3-2RS Price: $8.99 |
| 18 |
532436149 |
CASE.CHAIN.LH Price: $11.99 |
| 19 |
818051010 |
SCREW.10-24X5/8.PAN.HEAD TORX Price: $2.99 |
| 20 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 22 |
532436696 |
WELDMENT.SUPPORT.AXLE Price: $29.99 |
| 23 |
818101008 |
SCREW.TORX.#10-14X1/2 Price: $2.99 |
| 27 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 32 |
532436151 |
BLOCK.TENSION.CHAIN Price: $3.99 |
| 33 |
532436150 |
SPRING ADJUSTER.TENSION Price: $2.99 |
| 34 |
877101040 |
PIN.CLEVIS.5/16X2 1/2 Price: $2.99 |
| 36 |
532435722 |
SHAFT.INPUT.CLUTCH Price: $19.99 |
| 37 |
532436152 |
SPROCKET.SPLINED.14.TOOTH Price: $4.99 |
| 39 |
532430470 |
BEARING.BALL.689ZZ Price: $4.99 |
| 40 |
532436939 |
ARM.BRAKE Price: $5.99 |
| 41 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
532436652 |
COVER.END.HEX Price: $4.99 |
| 45 |
532436154 |
SPRING.DRIVE Price: $3.99 |
| 47 |
532436949 |
BRACKET MOUNT.CABLE.LRV.B Price: $2.99 |
| 48 |
817541016 |
SCREW.HEX.HEAD.WASH.10-24X1.00 Price: $2.99 |
| 51 |
532436739 |
BRACKET SUPPORT.LH Price: $3.99 |
| 53 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 54 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532435726. Price: $249.99 |
| 55 |
532444035 |
COVER.WHEEL.CLUTCH This part replaces 532437777. Price: $8.99 |
| 57 |
532436559 |
WHEEL.FRICTION Price: $37.99 |
| 59 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532441097. Price: $249.99 |
| 60 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532437787. Price: $249.99 |
| 62 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532437786. Price: $249.99 |
| 63 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532437785. Price: $249.99 |
| 65 |
532435723 |
PLATE.PRESSURE.MASTER Price: $5.99 |
| 66 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532435724. Price: $249.99 |
| 67 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532435725. Price: $249.99 |
| 68 |
532435728 |
BEARING BALL.LOOSE Price: $2.99 |
| 69 |
532435727 |
COVER.CLUTCH.LRVB Price: $8.99 |
| 70 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $2.99 |
| 71 |
532436865 |
TUBE.SHIFT.LRVB Price: $11.99 |
| 72 |
582735501 |
BOLT This part replaces 872110406. Price: $2.99 |
| 73 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 75 |
532436758 |
Price: Call Us |
| 76 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 78 |
532429055 |
SPACER.NYLON. Price: $2.99 |
| 79 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 80 |
810040400 |
LOCKWASHER Price: $3.99 |
| 81 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 82 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 84 |
819111610 |
WASHER Price: $3.99 |
| 85 |
532436914 |
SPRING.FRICTION.PACK. Price: $2.99 |
| 86 |
532437304 |
BUSHING.PACK.FRICTION.FD2 Price: $2.99 |
| 87 |
532436948 |
WASHER.PLASTIC Price: $2.99 |
| 88 |
532436701 |
STUD.PACK.FRICTION Price: $2.99 |
| 89 |
532437299 |
STUD.PACK.FRICTION.FD2 Price: $2.99 |
| 90 |
734116541 |
WASHER - 25X8.5X2.3 This part replaces 819111416. Price: $3.99 |
| 91 |
532436924 |
SUBASM.LINK.SHIFT Price: $9.99 |
| 94 |
532436918 |
WELDMENT.SHIFT.FD2 Price: $17.99 |
| 95 |
532436866 |
PLATE.SHIFT Price: $3.99 |
| 96 |
532437767 |
DRUM.CLUTCH.MULTI.DISC Price: $14.99 |
| 97 |
532436925 |
SUBASM.LINK.SHIFT.PRIMARY Price: $12.99 |
| 98 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 101 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $3.99 |
| 102 |
532086777 |
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) Price: $1.99 |
| 103 |
532109869 |
Price: Call Us |
| 104 |
532437781 |
HUB.CENTER Price: $6.99 |
| 105 |
580393001 |
REPAIR.KIT.LRVB.PRIMARY.DRIVE This part replaces 532436142. Price: $249.99 |
| 106 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 107 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 108 |
532436784 |
BUSHING.5/16 ID.X7/160DX1/2 Price: $3.99 |
| 109 |
532436499 |
CAP.HUB.AXLE.LRVA/B Price: $3.99 |
| 110 |
532428461 |
BRACKET, SHIFTER FLEX Price: $11.99 |
| 111 |
532123583 |
SQUARE KEY Price: $2.99 |
| 112 |
818101012 |
SCREW.TORX.#10-14X.750 Price: $2.99 |
| 113 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
