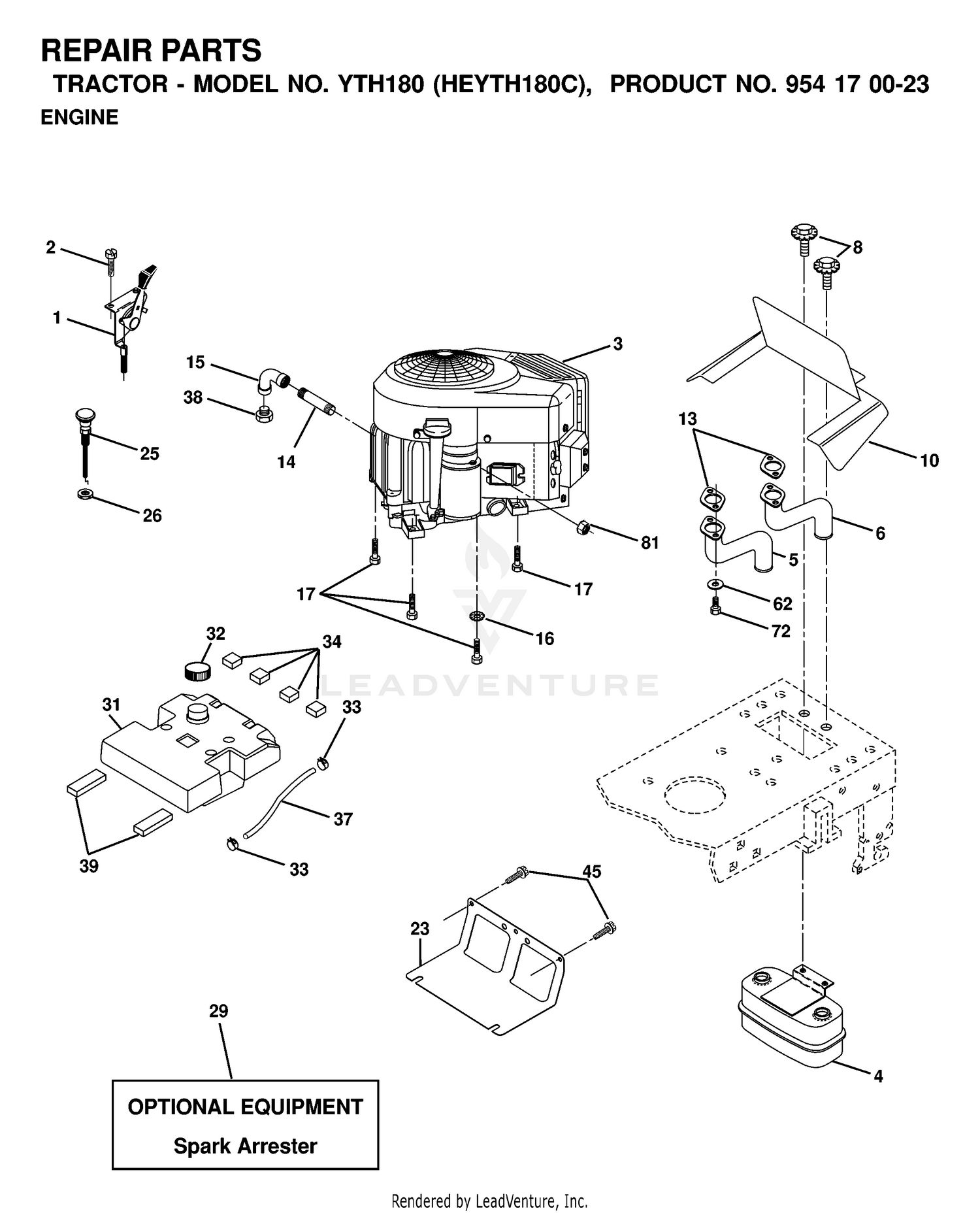

| Ref | Part Number | Description |
|---|
| 1 |
321-2 |
SCREW-HH Price: $2.79 |
| 1 |
532170771 |
CONTROL, THROTTLE This part replaces 532148875. Price: $24.99 |
| 2 |
105-7865 |
TANK-FUEL Price: $764.82 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
95-8881 |
STRAP-LINE, FUEL Price: $12.38 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
125-9171 |
CAP-FUEL This part replaces 114-5064. Price: $46.70 |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 6 |
95-8968-03 |
SUPPORT-TANK, FUEL Price: $18.87 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532150176. Price: $4.99 |
| 9 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 10 |
110-9689 |
PIPE-STAND Price: $24.54 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99 |
| 12 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 13 |
120-2182-0P |
PLATE-MOUNT, FUEL PUMP This part replaces 120-2182-03. Price: $8.36 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 14 |
813280336 |
Nipple, Pipe 3/8 NPT x 4-1/2 Price: $2.42 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
354-20 |
FITTING-TEE Price: $12.61 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 19 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 20 |
46-6560 |
BUSHING Price: $2.94 |
| 21 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 22 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
110-9044 |
SEPARATOR-FILTER Price: $98.19 |
| 25 |
353-783 |
FITTING-STR Price: $29.05 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 26 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
32128-44 |
NUT Price: $2.69 |
| 28 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
110-6187 |
HOSE-FUEL Price: $14.65 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
110-8751 |
HOSE-FUEL Price: $9.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
110-5701 |
HOSE-FUEL Price: $14.62 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
121-7914 |
HOSE-FUEL Price: $11.97 |
| 37 |
117-4026 |
HOSE-FUEL Price: $4.83 |
| 38 |
121-7852 |
HOSE-FUEL Price: $9.19 |
| 39 |
2412-73 |
CLAMP-R Price: $2.56 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 41 |
110-8817 |
BRACKET-PUMP, FUEL Price: $21.97 |
| 44 |
105-4094 |
HOSE-FORMED Price: $92.07 |
| 45 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 46 |
110-8754 |
TRIM Price: $6.70 |
| 47 |
2412-80 |
CLAMP-HOSE Price: $4.39 |
| 52 |
1-543296 |
GROMMET Price: $7.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
