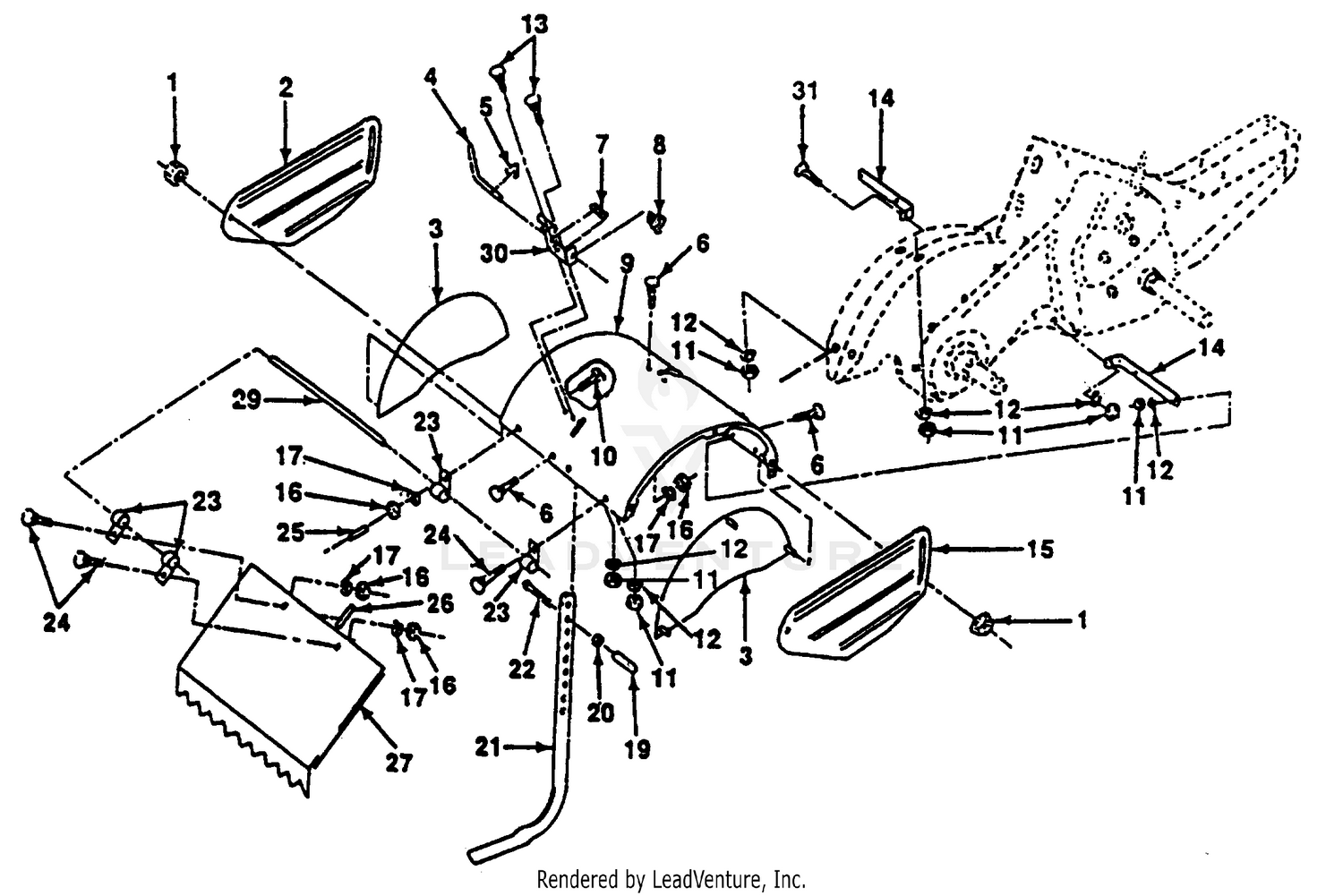

| Ref | Part Number | Description |
|---|
| 1 |
115-8295-0P |
TUBE ASM-ROLLER 2.5" DIA (FULL) This part replaces 115-8295-03. Price: $222.64 |
| 1 |
898000129 |
Nut, Flange 5/16-18 (AYP part number) Price: $5.99 |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG This part replaces 532104086. Price: $14.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532124715 |
Shield Side (AYP part number) Price: $3.33 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532008393 |
Pin, Stake, Depth (AYP part number) Price: $17.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
812000036 |
Ring, Klip (AYP part number) Price: $3.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532008394 |
Spring (AYP part number) Price: $3.99 |
| 8 |
532109230 |
Spring, Stake, Depth (AYP part number) Price: $3.99 |
| 9 |
532124713 |
Shield, Tine (AYP part number) Price: $17.99 |
| 10 |
872040410 |
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 (AYP part number) Price: $3.99 |
| 11 |
873220500 |
Nut, Hex 5/16-18 (AYP part number) Price: $3.99 |
| 12 |
810040500 |
Washer, Lock 5/16 (AYP part number) Price: $2.99 |
| 13 |
872110508 |
Bolt, Carriage 5/16-18 x 1 (AYP part number) Price: $2.99 |
| 14 |
584459301 |
BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $14.99 |
| 15 |
532195795 |
SHIELD.SIDE.OUTER.RH.BLACK This part replaces 532104101. Price: $9.99 |
| 16 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 17 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 19 |
532102701 |
Grip (AYP part number) Price: $3.99 |
| 20 |
873220600 |
Nut, Hex 3/8-16 (AYP part number) Price: $3.99 |
| 21 |
532102156 |
Stake, Depth (AYP part number) Price: $22.99 |
| 22 |
874930632 |
Bolt, Hex 3/8-16 x 2 (AYP part number) Price: $3.99 |
| 23 |
532004440 |
Hinge (AYP part number) Price: $3.99 |
| 24 |
872140404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) Price: $3.99 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 26 |
532109227 |
Pad, Idler (AYP part number) Price: $2.99 |
| 27 |
532124714 |
Shield, Leveling (AYP part number) Price: $3.33 |
| 29 |
532120588 |
Pin, Hinge (AYP part number) Price: $3.99 |
| 30 |
532008392 |
Bracket, Latch (AYP part number) Price: $3.99 |
| 31 |
872110510 |
Bolt, Carriage 5/16-18 x 1-1/4 (AYP part number) Price: $3.99 |
