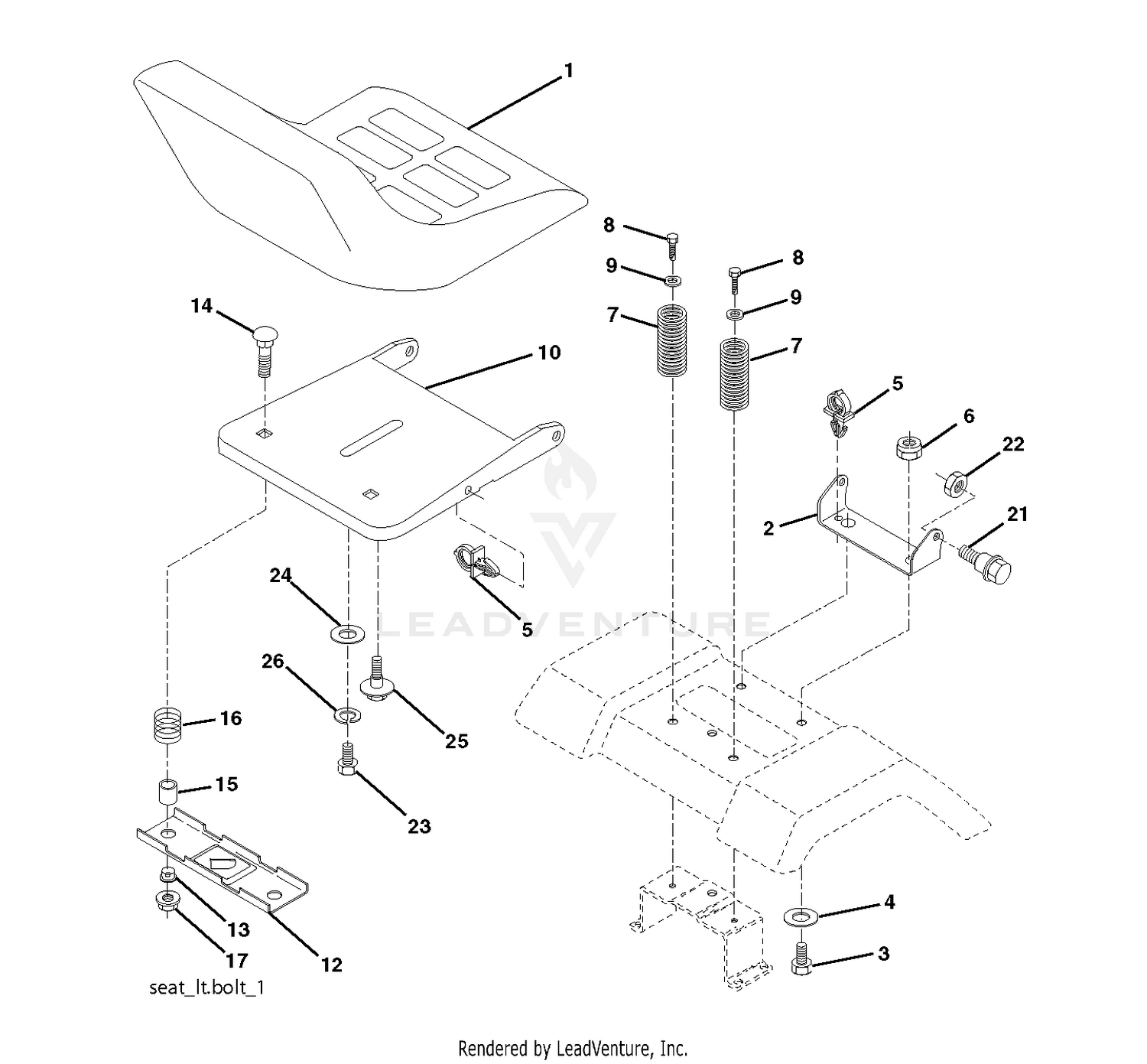

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG Price: $142.99 |
| 1 |
99-6905-03 |
NO. 5 LIFT ARM ASM Price: $807.57 |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
871110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: $2.99 |
| 4 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
104-1438-03 |
STEP-PERFORATED Price: $33.53 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 8 |
99-6941-03 |
PIVOT ROD ASM Price: $92.29 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 10 |
98-3929 |
SPRING-TORSION Price: $23.85 |
| 11 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT Price: $4.99 |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 14 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 15 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
282-4 |
SHACKLE Price: $32.98 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
256-287 |
BUSHING Price: $1.76 |
| 20 |
104-1413 |
CHAIN-LINK, STRAIGHT Price: $10.05 |
| 21 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 22 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 23 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $3.99 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $3.99 |
| 25 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 26 |
99-5610 |
PIN Price: $40.16 |
| 27 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 28 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 29 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 30 |
106-5952-03 |
DISCONTINUED Price: Call Us |
| 31 |
106-7067-03 |
NO. 4 LIFT ARM ASM Price: $692.33 |
| 32 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 33 |
106-9004 |
BUMPER Price: $6.35 |
| 34 |
99-6901-03 |
DISCONTINUED Price: Call Us |
| 35 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 36 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 39 |
32128-21 |
NUT-HF Price: $0.39 |
| 40 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 41 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 42 |
98-3936 |
LANYARD Price: $23.28 |
