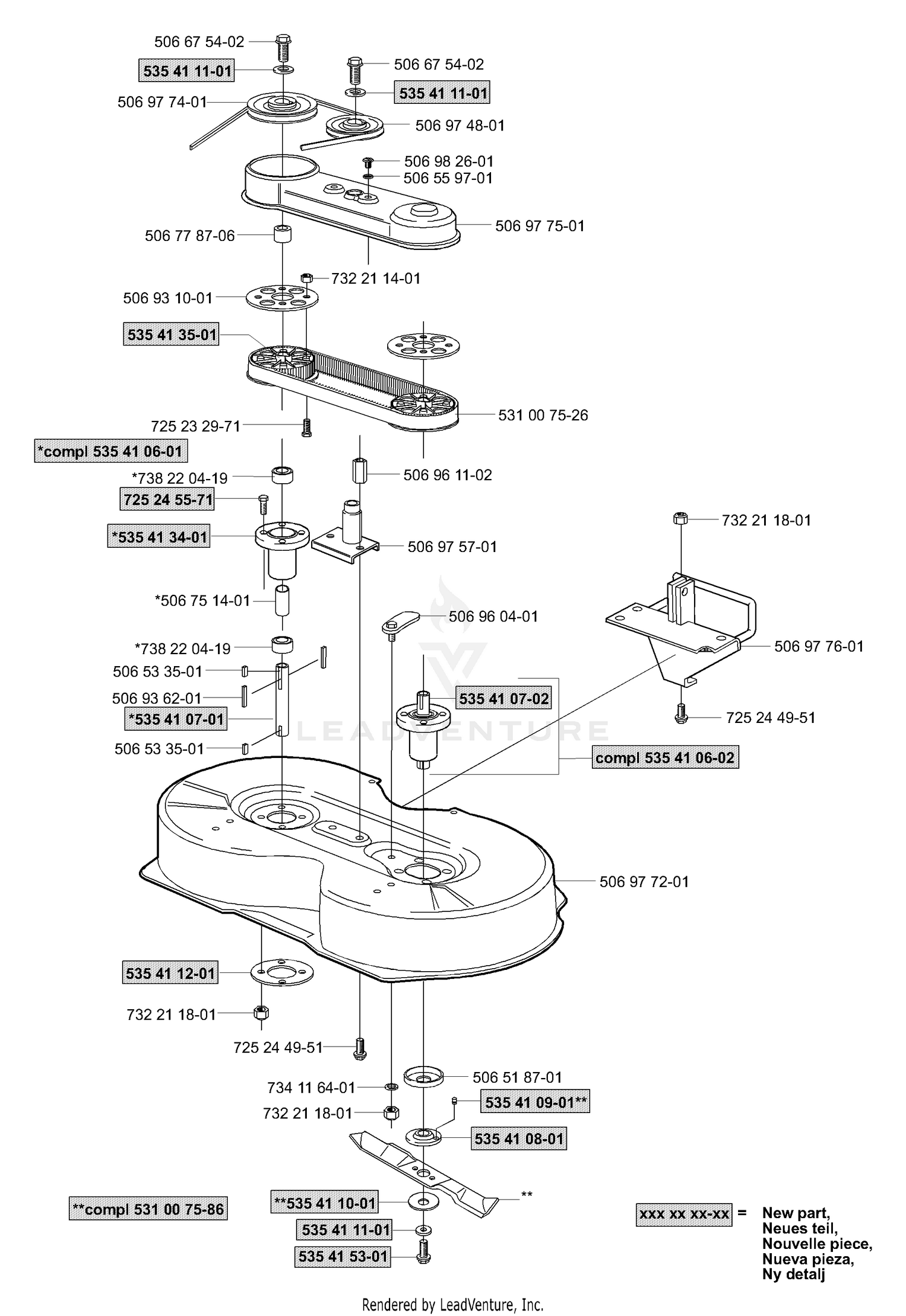

Deck Assy (36" Mulch)
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 506518701 | 506518701 | BEARING COVER Price: $6.99 |
| 506533501 | 506533501 | KEY Price: $3.99 |
| 506559701 | 506559701 | WASHER Price: $4.99 |
| 506675402 | 506675402 | BOLT Price: $5.99 |
| 506751401 | 506751401 | SPACER Price: $9.99 |
| 506778706 | 506778706 | Spacer Price: $22.07 |
| 506931001 | 506931001 | FLANGE Price: $49.99 |
| 506936201 | 506936201 | KEY Price: $5.99 |
| 506960401 | 506960401 | ECCENTRIC Price: $27.99 |
| 506961102 | 506961102 | SLEEVE Price: $5.83 |
| 506974801 | 506974801 | PULLEY Price: $44.99 |
| 506975701 | 506975701 | BRACKET Price: $109.99 |
| 506977201 | 506977201 | HOUSING Price: $237.82 |
| 506977401 | 506977401 | Pulley Price: $48.43 |
| 506977501 | 535433801 | COVER This part replaces 506977501. Price: $44.99 |
| 506977601 | 506977601 | BRACKET Price: $79.99 |
| 506982601 | 506982601 | SCREW Price: $5.99 |
| 531007526 | 589531501 | BELT This part replaces 531007526. Price: $64.99 |
| 531007586 | 531007586 | BLADE Price: $37.99 |
| 535410601 | 535410601 | MANDREL ASSY. Price: $99.99 |
| 535410602 | 535410602 | BLADE HOUSING ASSY Price: $109.99 |
| 535410701 | 535410701 | SHAFT Price: $44.99 |
| 535410702 | 535410702 | SHAFT Price: $49.99 |
| 535410801 | 535410801 | ADAPTER Price: $44.99 |
| 535410901 | 535410901 | PIN Price: $5.99 |
| 535411001 | 535411001 | WASHER Price: $10.99 |
| 535411101 | 535411101 | WASHER Price: $5.99 |
| 535411201 | 535411201 | WASHER Price: $37.99 |
| 535413401 | 535413401 | BEARING HOUSING Price: $89.99 |
| 535413501 | 535413501 | PULLEY Price: $32.99 |
| 535415301 | 535415301 | BLADE BOLT Price: $5.99 |
| 725232971 | 725232971 | SCREW Price: $2.99 |
| 725244951 | 725244951 | BOLT - M8X16 Price: $2.99 |
| 725245571 | 725245571 | SCREW Price: $3.99 |
| 732211401 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 734116401 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 738220419 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
