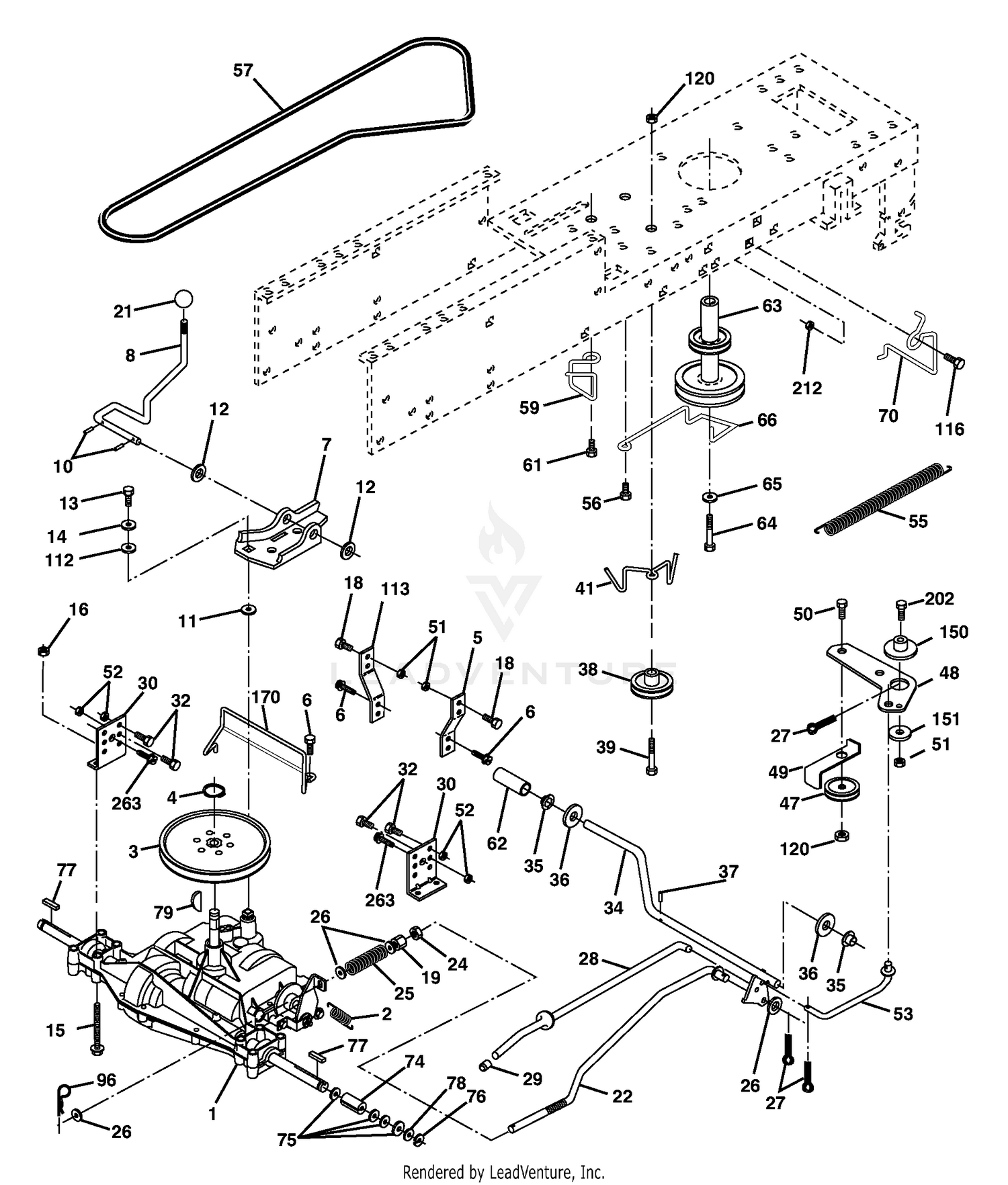

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring Return Brake Price: Call Us |
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 5 |
121520X |
Strap Torque 30 Degrees RH Price: Call Us |
| 6 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
162240 |
Plate Rod Shift T/a Price: Call Us |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
131679 |
Rod Shifter Blk Price: Call Us |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
19151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 w/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 15 |
58-3590 |
DOWEL Price: $5.50 |
| 15 |
74490544 |
Bolt Hex Flg.Hd. 5/16-18 x Gr.5 Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 unc Price: Call Us |
| 16 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 17 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 19 |
3213-20 |
SCREW-HH Price: $1.76 |
| 19 |
73800600 |
Nut lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
106933X |
Knob Rd 1/2-13 Plstc Thds Blk Price: Call Us |
| 22 |
130804 |
Rod Brake LT Price: Call Us |
| 22 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
323-11 |
SCREW-HH Price: $1.08 |
| 29 |
71673 |
Cap Brake Parking Black Price: Call Us |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
174973 |
Bracket Transmission Price: Call Us |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 32 |
74760512 |
Bolt Fin Hex 5/16-18 x 3/4 Price: Call Us |
| 33 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 34 |
175578 |
Shaft Asm Pedal Foot Nibbed Price: Call Us |
| 34 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga. Price: Call Us |
| 36 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 37 |
98-1206-03 |
BRACKET-FRONT, RH Price: $74.95 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 38 |
98-1200-03 |
SPACER Price: $22.92 |
| 39 |
72110622 |
Bolt RDHD 3/8-16 unc x 2-3/4 Gr.5 Price: Call Us |
| 39 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 40 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 41 |
175556 |
Keeper Belt Idler Price: Call Us |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
33116-070 |
SCREW-HH Price: $4.14 |
| 44 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
48-9530 |
NUT Price: $1.78 |
| 46 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 47 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 48 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 49 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 50 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 51 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 52 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
70-8470 |
SCREW-HH Price: $1.76 |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 55 |
43-3180 |
SCREW-HH Price: $18.78 |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 56 |
43-3210 |
SCREW-HH Price: $4.27 |
| 57 |
130801 |
V-Belt Ground Drive 95 Price: Call Us |
| 59 |
169691 |
Keeper Belt Chassis Span Ctr Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley LT/YT Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 Gr. 5-1.5 Thr Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 x 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque 90 Degrees LH Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Lt Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 170 |
187414 |
Keeper, Belt Transaxle Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5 Price: Call Us |
| 212 |
145212 |
Nut Hex Flg Lock Price: Call Us |
