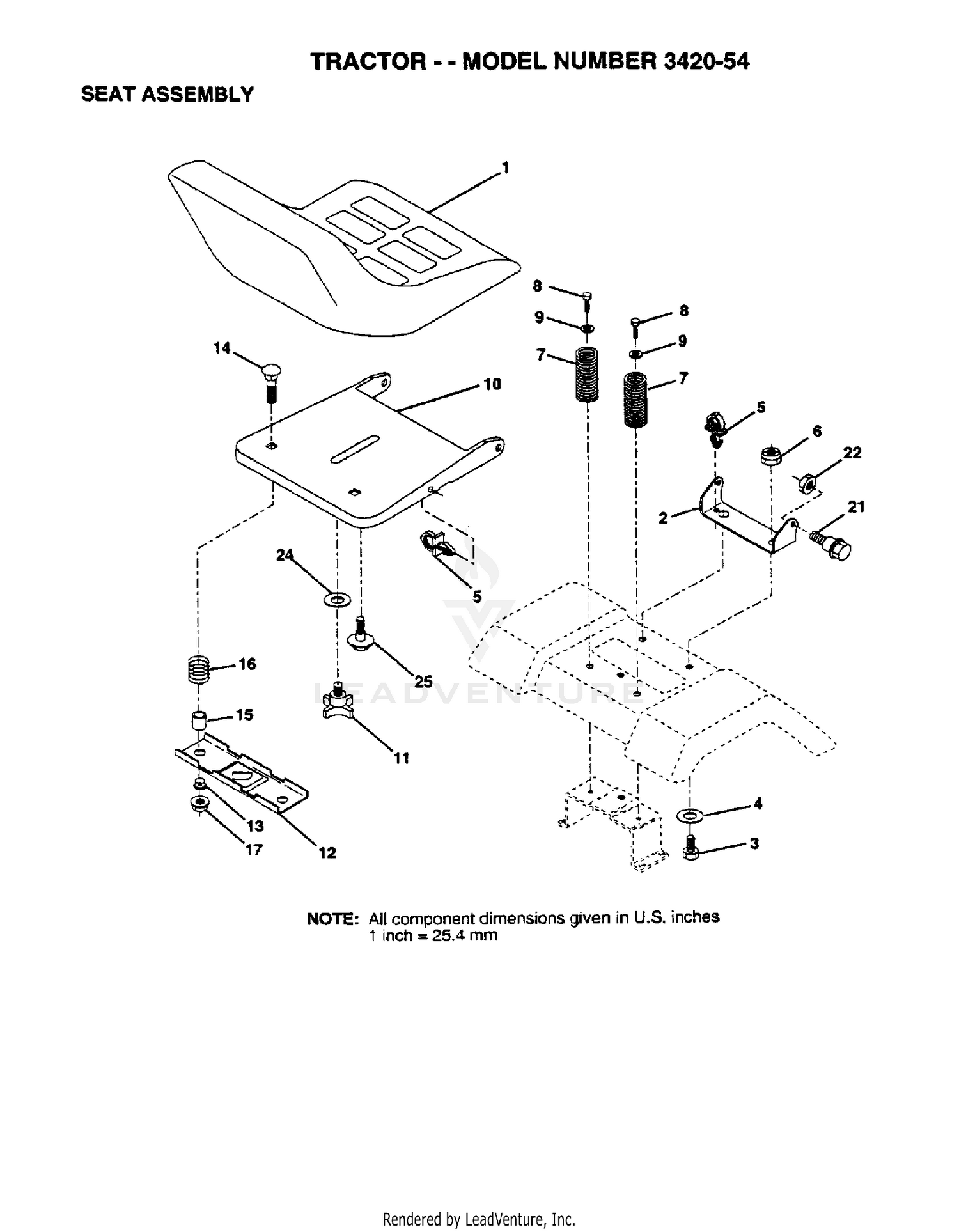

| Ref | Part Number | Description |
|---|
| 1 |
36-4970 |
DISCONTINUED Price: Call Us |
| 1 |
532127429 |
Seat V550 Blk/blk Std (AYP part number) Price: $129.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532126656 |
Bracket, Pivot Seat (AYP part number) This part replaces 532105513. Price: $5.46 |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 4 |
3213-20 |
SCREW-HH Price: $1.76 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 7 |
253-117 |
SEAL-OIL Price: $5.72 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
254-78 |
BEARING-CONE Price: $12.22 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
29-3440 |
DISCONTINUED Price: Call Us |
| 10 |
532124294 |
Pan, Seat (AYP part number) Price: $14.69 |
| 11 |
5-4035 |
DISCONTINUED Price: Call Us |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
29-3800 |
ROLLER ASM Price: $526.79 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
29-3900 |
WEAR SLEEVE Price: $34.42 |
| 14 |
872050411 |
BOLT CARRIAGE 1/4-20X1 3/8 Price: $2.99 |
| 15 |
29-3940 |
DISCONTINUED Price: Call Us |
| 15 |
532121249 |
SPACER SPLIT Price: $3.99 |
| 16 |
32128-31 |
DISCONTINUED Price: Call Us |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
29-3850 |
ROLLER SHAFT Price: $151.96 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
