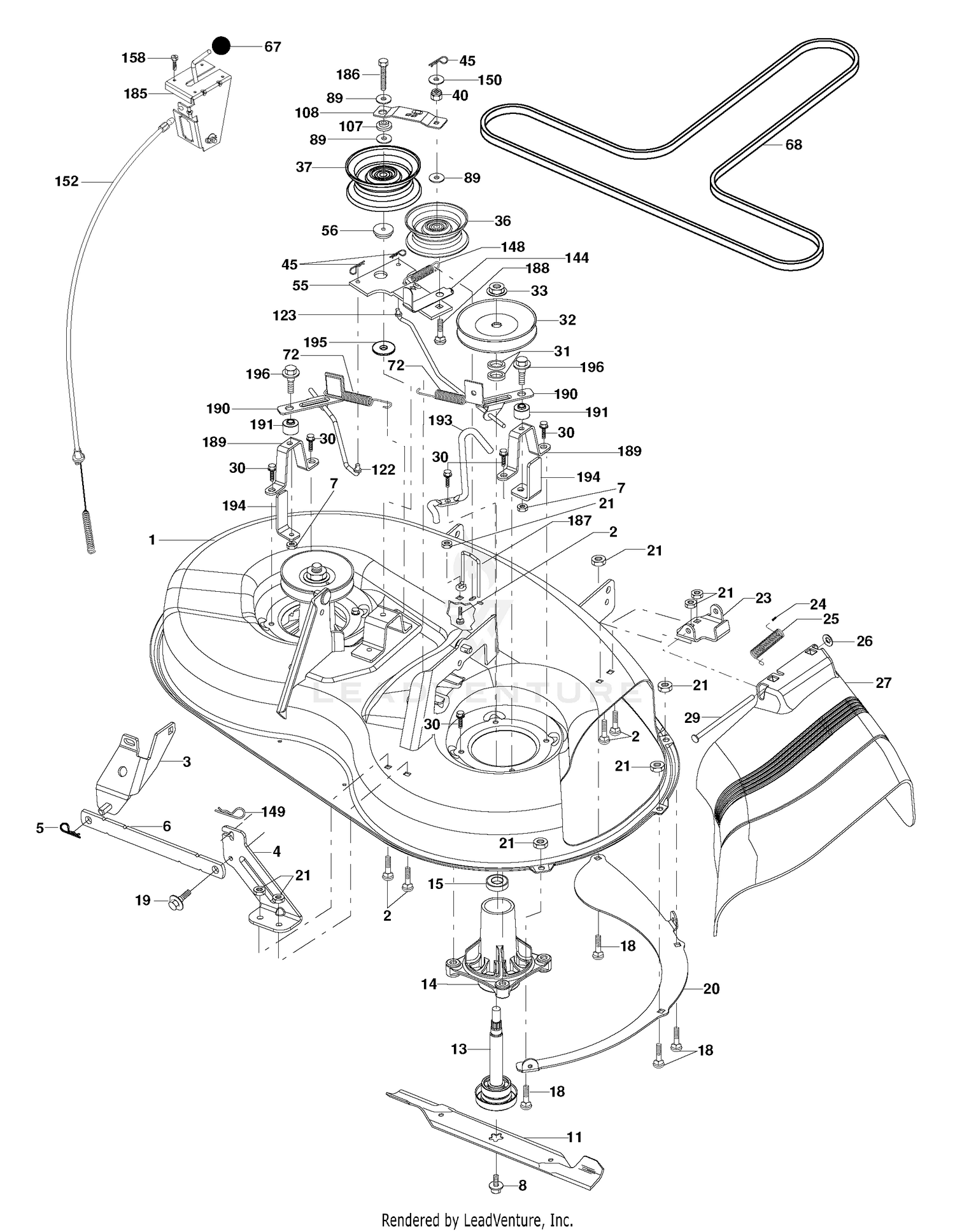

| Ref | Part Number | Description |
|---|
| 1 |
192556 |
Mower Housing Assembly Price: Call Us |
| 1 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 2 |
140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 2 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
233-42 |
KNOB Price: $12.88 |
| 4 |
192568 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 4 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 5 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 7 |
73800500 |
Nut Lock Hx W/INS 5/16-18 UNC Price: Call Us |
| 7 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 8 |
193003 |
Bolt 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 8 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 9 |
105-7508 |
LEVER-JOYSTICK Price: $53.02 |
| 10 |
104-9296 |
DECAL-CONTROL Price: $27.94 |
| 11 |
104-9251-03 |
PLATE-INSTRUMENT Price: $95.17 |
| 11 |
193957 |
Blade Mower Price: Call Us |
| 12 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 13 |
106-4167 |
JOYSTICK BRACKET ASM Price: $202.74 |
| 13 |
192872 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
187281 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
104-1499-03 |
BRACKET-BLOCK, FUSE Price: $43.35 |
| 17 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 18 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 18 |
72140505 |
Bolt Rdhd Sqnk 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 20 |
104-0027 |
BOX-CONTROL Price: $196.04 |
| 20 |
400095 |
Baffl e Vortex Front Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
94-6767 |
DECAL-FUSES Price: $11.45 |
| 23 |
104-9298 |
DECAL-CONTROLLER Price: $6.16 |
| 23 |
192557 |
Bracket, Mower Defl ector Price: Call Us |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 25 |
197026 |
Spring, Torsion, Defl ector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 27 |
192572X428 |
Shield, Defl ector Price: Call Us |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
321-14 |
SCREW-HH Price: $0.55 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 30 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
106-5971 |
HARNESS-WIRE Price: $1,405.26 |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock Price: Call Us |
| 33 |
94-6343 |
DECAL-IDENTIFICATION, WIRE Price: $6.86 |
| 34 |
3218-3 |
NUT-JAM Price: $0.25 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
193198 |
Pulley Idler Flat Price: Call Us |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 41 |
32128-33 |
NUT-HF Price: $0.25 |
| 44 |
105-7529 |
DECAL-DIAGNOSTIC Price: $26.76 |
| 45 |
4497H |
Retainer Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
193214 |
V-Belt Price: Call Us |
| 72 |
193216 |
Spring Brake Return Price: Call Us |
| 89 |
19131311 |
Washer 13/32 x 13/16 x 11 Ga. Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 122 |
192575 |
Rod, Brake LH Price: Call Us |
| 123 |
192576 |
Rod, Brake RH Price: Call Us |
| 144 |
193414 |
Keeper Belt Idler Tension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
193235 |
Clutch Cable 38"/46" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 186 |
17490644 |
Screw Hex Wsh Thdrol 3/8-16 x 2-3/4 Price: Call Us |
| 187 |
193412 |
Keeper Belt Price: Call Us |
| 188 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 189 |
192559 |
Stand, Brake Price: Call Us |
| 190 |
192560 |
Arm, Brake Price: Call Us |
| 191 |
192561 |
Spacer, Brake Price: Call Us |
| 192 |
193782 |
Bolt/Washer Asm 5/16-18 Price: Call Us |
| 193 |
193413 |
Keeper Belt Rh Mandrel Price: Call Us |
| 194 |
194105 |
Guard Brake Price: Call Us |
| 195 |
19133210 |
Washer Price: Call Us |
| 196 |
193782 |
Screw Bolt/Washer Asm 5/16-18 Price: Call Us |
