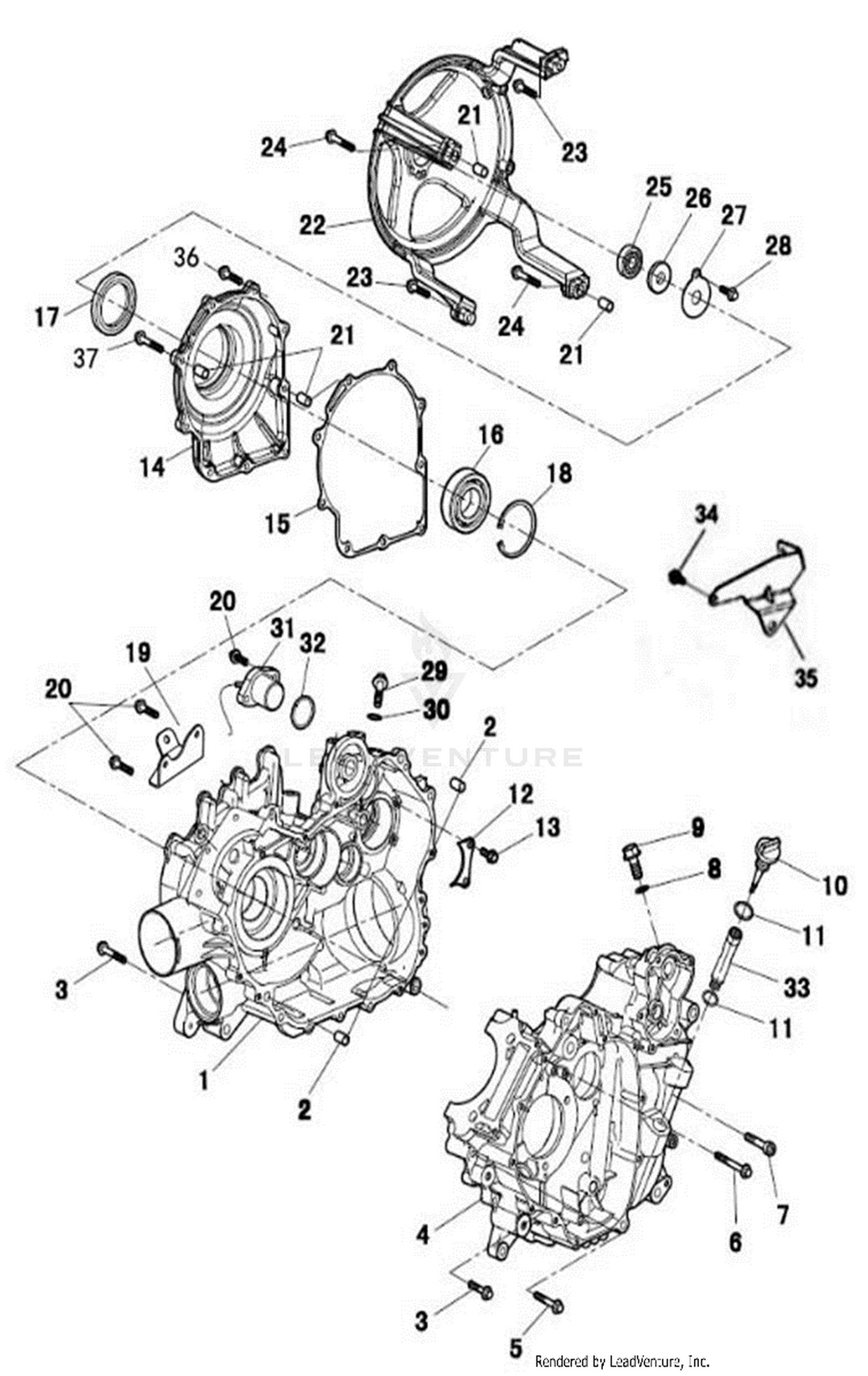

| Ref | Part Number | Description |
|---|
| 1 |
503-02860 |
CRANKCASE COVER (RH) (750) Price: $713.78 |
| 2 |
503-01020 |
DOWEL PIN 9X12X16 Price: $4.99 |
| 3 |
503-01021 |
HEX FLANGE BOLTS M6X30 Price: $5.26 |
| 4 |
503-02861 |
CRANKCASE COVER (LH) (750) Price: $734.11 |
| 5 |
503-01023 |
HEX FLANGE BOLTS M6X40 Price: $5.26 |
| 6 |
503-01024 |
HEX FLANGE BOLTS M6X85 Price: $5.26 |
| 7 |
503-01025 |
HEX HEAD CAP SCREW M8X40 Price: $5.26 |
| 8 |
503-01026 |
ALUMINUM WASHER 14X20X1.5 Price: $7.90 |
| 9 |
503-01027 |
HEX FLANGE SCREW PLUG M14X1.5X16 Not Available Price: |
| 10 |
503-01028 |
OIL LEVEL PLUG Price: $5.26 |
| 11 |
503-01029 |
O-RING 18X3.5 Price: $5.26 |
| 12 |
503-01030 |
MAIN SHAFT BEARING PRESS PLATE Price: $5.64 |
| 13 |
503-01031 |
HEX FLANGE BOLTS M6X16 Not Available Price: |
| 14 |
503-02862 |
CLUTCH COVER Price: $107.03 |
| 15 |
503-02863 |
CLUTCH COVER GASKET Price: $12.51 |
| 16 |
503-01034 |
BEARING 16010 Price: $101.52 |
| 17 |
503-01035 |
OIL SEAL 35X65X9 Price: $60.21 |
| 18 |
503-01036 |
CIRCLIP Price: $8.80 |
| 19 |
503-02917 |
AIR DUCT BRACKET Price: $5.41 |
| 20 |
503-00990 |
HEX HEAD BOLT & PLAIN WASHER Price: $5.36 |
| 21 |
503-00928 |
DOWEL PIN 10X16 Price: $5.36 |
| 22 |
503-01038 |
CLUTCH SHIELD BRACKET Price: $267.16 |
| 23 |
503-01039 |
HEX FLANGE BOLTS M6X32 Price: $5.26 |
| 24 |
503-01040 |
HEX FLANGE BOLTS M6X40 Price: $5.26 |
| 25 |
503-01041 |
BEARING 62012Z Price: $59.44 |
| 26 |
503-01042 |
OIL SEAL 12X32X6 Price: $23.88 |
| 27 |
503-01043 |
BRACKET OIL SEAL PRESS PLATE Price: $5.36 |
| 28 |
503-00921 |
HEX FLANGE BOLT M6X12 Price: $5.36 |
| 29 |
503-01044 |
HEX FLANGE BOLTS M10X1.25X16 Price: $4.23 |
| 30 |
503-01045 |
COPPER WASHER 10X16X1 Not Available Price: |
| 31 |
503-01046 |
GEAR INDICATOR SENSOR Price: $87.48 |
| 32 |
503-01047 |
O-RING 29.6X2.4 Price: $18.49 |
| 33 |
503-01048 |
OIL LEVEL GUIDING TUBE Not Available Price: |
| 34 |
503-01021 |
HEX FLANGE BOLTS M6X30 Price: $5.26 |
| 35 |
503-01312 |
AIR CLEANER STRAP Price: $25.89 |
| 36 |
503-02903 |
HEX FLANGE BOLT M6x35 Price: $0.78 |
