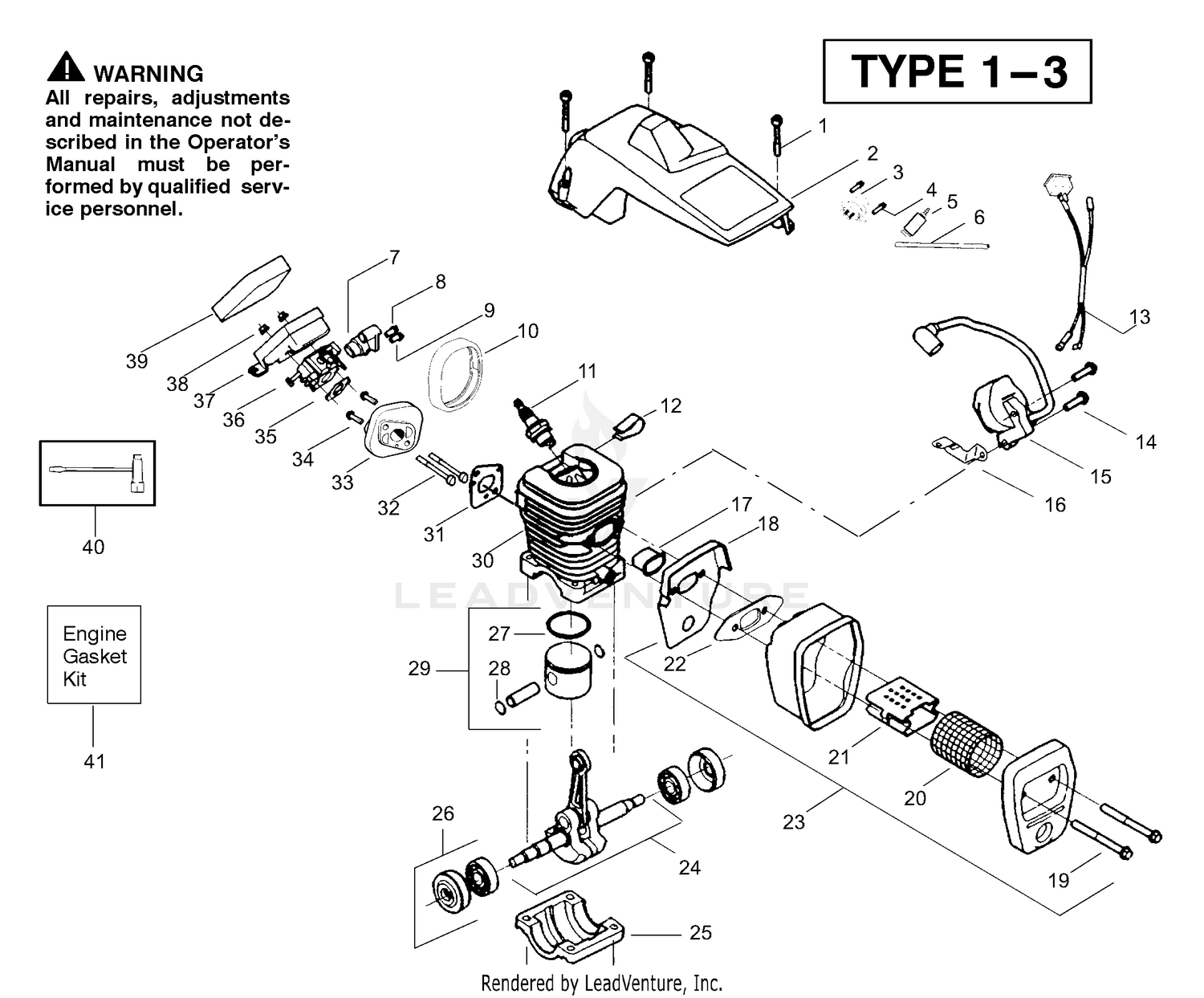

Engine Assembly Type 1-3

Engine Assembly Type 1-3

Parts (41)

RefPart NumberDescription
1 325-6 SCREW-HH Price: $1.42
1 530016153 Screw Price: $1.99
2 3253-7 WASHER-LOCK Price: $0.27
2 530071310 Shield-Cylinder Price: $9.99
3 24-5790-01 WEIGHT-REAR This part replaces 24-5790. Price: $334.70
3 530071835 Kit-Purge Bulb This part replaces 530047213. Price: $5.99
4 325-14 SCREW-HH Price: $2.64
4 530015780 Screw Price: $1.99
5 3256-26 WASHER-FLAT Price: $0.39
5 530095646 Assy-Fuel Pick-up Price: $2.99
6 530069247 Kit-Line Purge/Carb. (Small Dia) Price: $3.99
7 530049244 Grommet-Carb Adjust. Price: $1.99
8 530038479 Limiter Cap-High Price: $1.99
9 530038478 Limiter Cap-Low Price: $1.99
10 530054144 Seal-Carb Adapter Price: $2.99
11 503235111 BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99
12 530016136 Clip-High Tension Lead Price: $1.99
14 530015814 Screw Price: $1.99
15 530039198 Module-Ignition Price: $29.99
16 530047442 Strap-Ground Price: $1.99
17 530037652 Insulator-Heat Price: $1.99
18 530049870 Plate-Muffler Back Price: $3.99
19 530016132 Screw Price: $1.99
20 530036103 Screen-Spark Price: Call Us
21 530037813 Muffler Diffuser Price: $1.99
22 530019221 Muffler Gasket Price: $1.99
24 545113101 CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99
25 530037935 Cap-Crankcase Price: $8.99
26 530056363 Assy-Seal & Bearing Price: $11.99
27 545160401 Ring-Piston This part replaces 530038729. Price: $2.99
28 530015697 Retainer-Piston Pin Price: $1.99
30 530069720 Kit-Cylinder Price: $17.52
31 530019249 Gasket-Carb. Adapter Price: $1.99
32 530016187 Screw Price: $1.99
33 530049700 Adapter-Carb. Price: $3.99
34 530016386 Screw Price: $5.99
35 530019271 GASKET This part replaces 530019239. Price: $1.99
37 530047604 Housing-Air Filter Price: $1.99
38 530016101 Nut Price: $1.99
39 530037793 Air Filter-Foam Price: $1.99
40 530031163 Bar Wrench This part replaces 530031135. Price: $4.99
