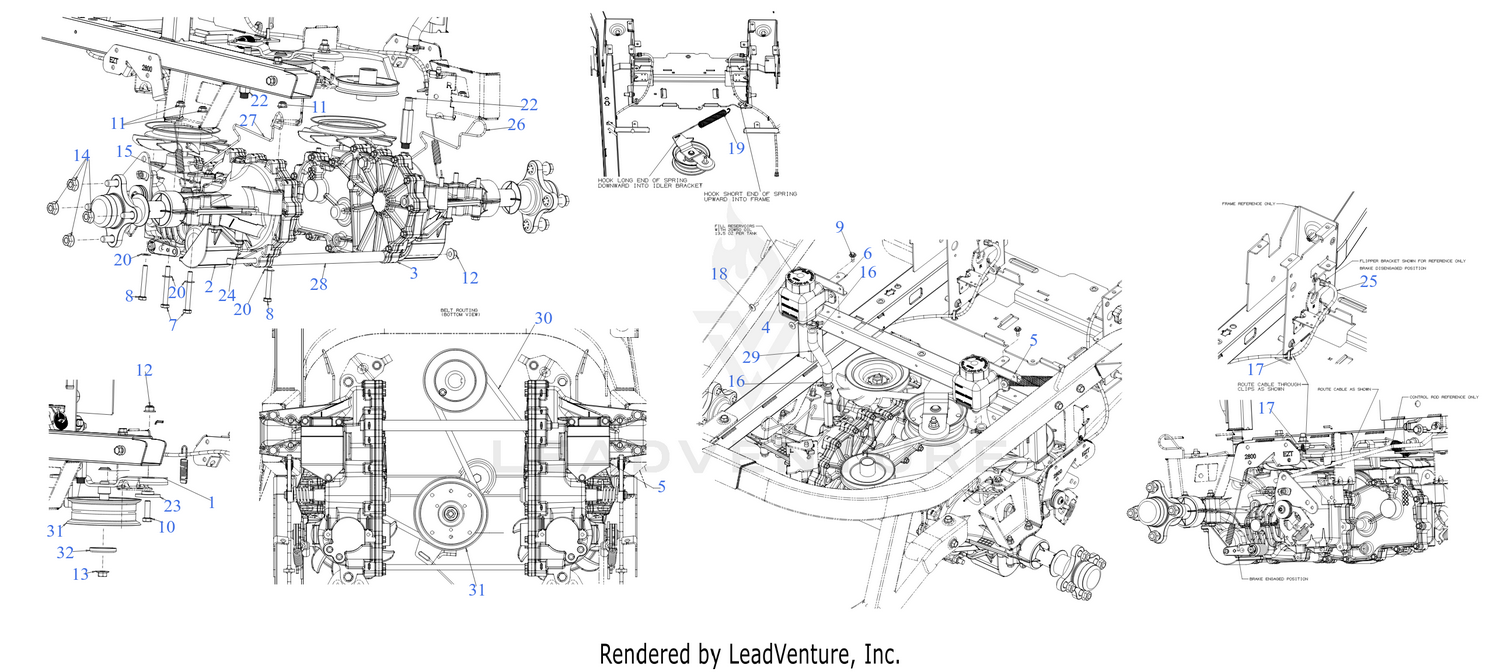

| Ref | Part Number | Description |
|---|
| 1 |
603P05879A |
DRIVE IDLER BRACKET ASSEMBLY Price: $26.65 |
| 4 |
HG-52375 |
CAP-EXPANSION TANK Price: $16.86 |
| 4 |
HG-71328 |
EXPANSION TANK Price: $30.74 |
| 5 |
703-13261A |
EXPANSION TANK BRACKET (RH) Price: $20.38 |
| 6 |
703-15541A |
EXPANSION TANK BRACKET (LH) Price: $20.38 |
| 7 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 8 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 9 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 10 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04065 |
NUT Price: $3.68 |
| 13 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 14 |
712-05160 |
HEX FLANGE NUT 7/16-14 Price: $4.59 |
| 15 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 16 |
926-0324 |
FUEL HOSE CLAMP .75 Price: $6.28 |
| 17 |
726-3055 |
CABLE RETAINER CLIP Price: $6.06 |
| 18 |
728-05033 |
POP RIVET - .188 DIAMETER Price: $2.63 |
| 19 |
732-06226A |
EXTENSION SPRING .75 DIA X 9.78 This part replaces 732-06226. Price: $13.32 |
| 20 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 22 |
737-05023 |
EXTENSION FITTING 9/16-18 Price: $16.91 |
| 23 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 24 |
738-05554A |
SUPPORT TUBE ROD Price: $11.73 |
| 25 |
746P05611B |
PARK BRAKE CABLE Price: $31.35 |
| 26 |
747-07690A |
HYDRO BYPASS ROD (RH) Price: $12.54 |
| 27 |
747-08130A |
HYDRO BYPASS ROD (LH) Price: $12.54 |
| 28 |
750-07350 |
SUPPORT TUBE Price: $21.16 |
| 29 |
751-16786 |
EXPANSION TANK HOSE Price: $21.93 |
| 30 |
754P05874 |
BELT-TRANS DRIVE A x 69.1 Price: $41.33 |
| 31 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 32 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
