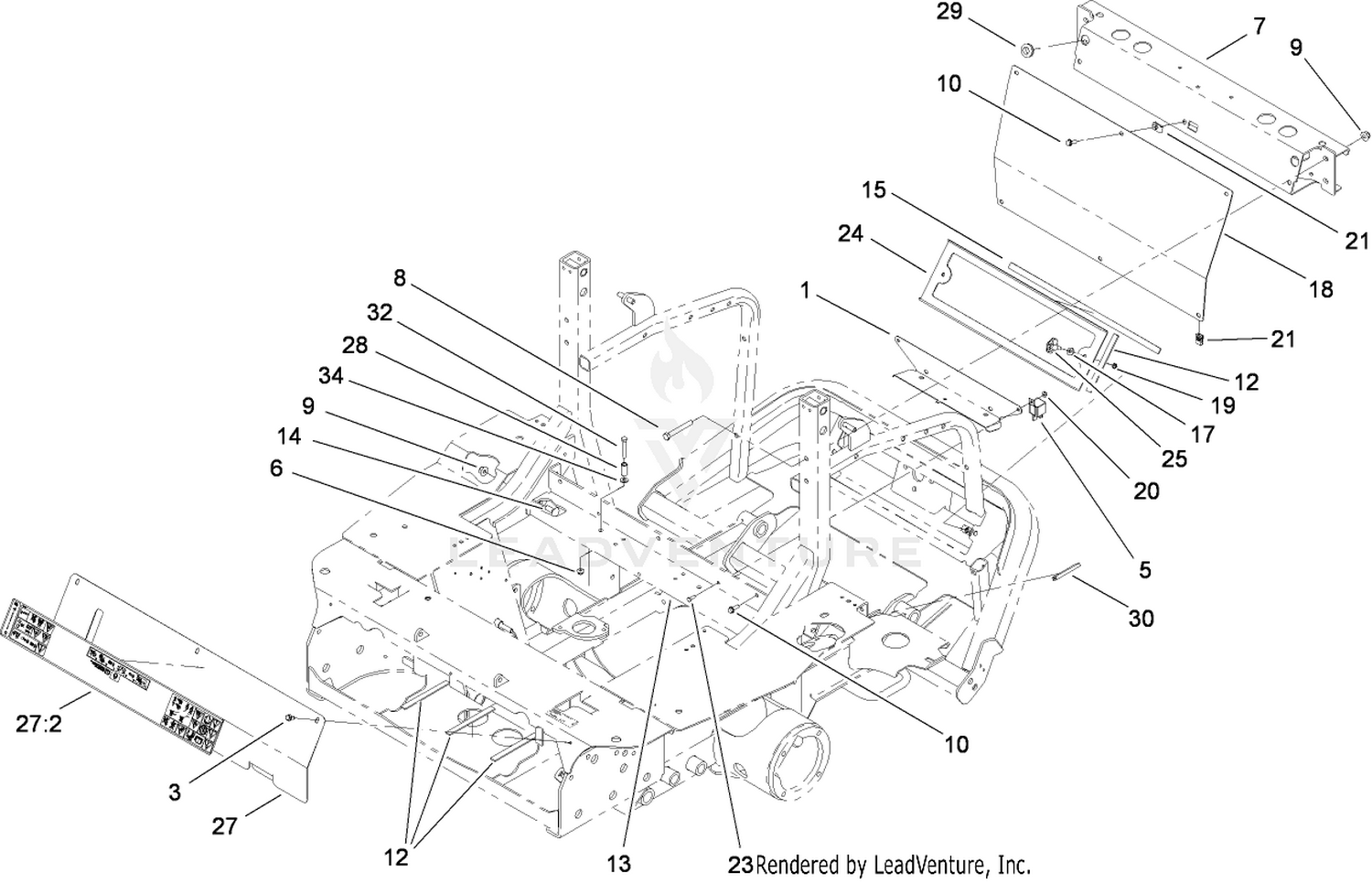

Frame Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-4055-03 | BRACKET-WIRE Price: $35.81 |
| 3 | 32144-10 | SCREW-HWH Price: $4.29 |
| 5 | 99-7435 | RELAY Price: $32.43 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 112-6361-03 | CROSSMEMBER ASM Price: $240.97 |
| 8 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 3234-4 | SCREW-HHF Price: $0.50 |
| 12 | 105-0778 | STRIP-FOAM Price: $11.41 |
| 13 | 105-7296-03 | SUPPORT-SEAT Price: $122.64 |
| 14 | 3231-2 | BOLT-CARR Price: $0.81 |
| 15 | 112-6387 | STRIP-FOAM Price: $10.62 |
| 17 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 18 | 112-6367-03 | PANEL-REAR Price: $75.89 |
| 19 | 32151-106 | RING-RETAINING Price: $0.25 |
| 20 | 3290-148 | NUT-HF Price: $0.25 |
| 21 | 107069 | CLIP Price: $1.79 |
| 23 | 3290-134 | SCREW Price: $0.27 |
| 24 | 112-6384-0P | SCREEN This part replaces 112-6384-03. Price: $149.73 |
| 25 | 98-8332 | KNOB Price: $4.89 |
| 27 | 110-9794 | COVER-FRONT Price: $120.96 |
| 28 | 95-5807 | SPACER Price: $10.10 |
| 29 | 237-124 | GROMMET Price: $2.30 |
| 30 | 110-8276 | TRIM-HOLD DOWN, BATTERY Price: $4.66 |
| 32 | 321-10 | SCREW-HH Price: $1.29 |
