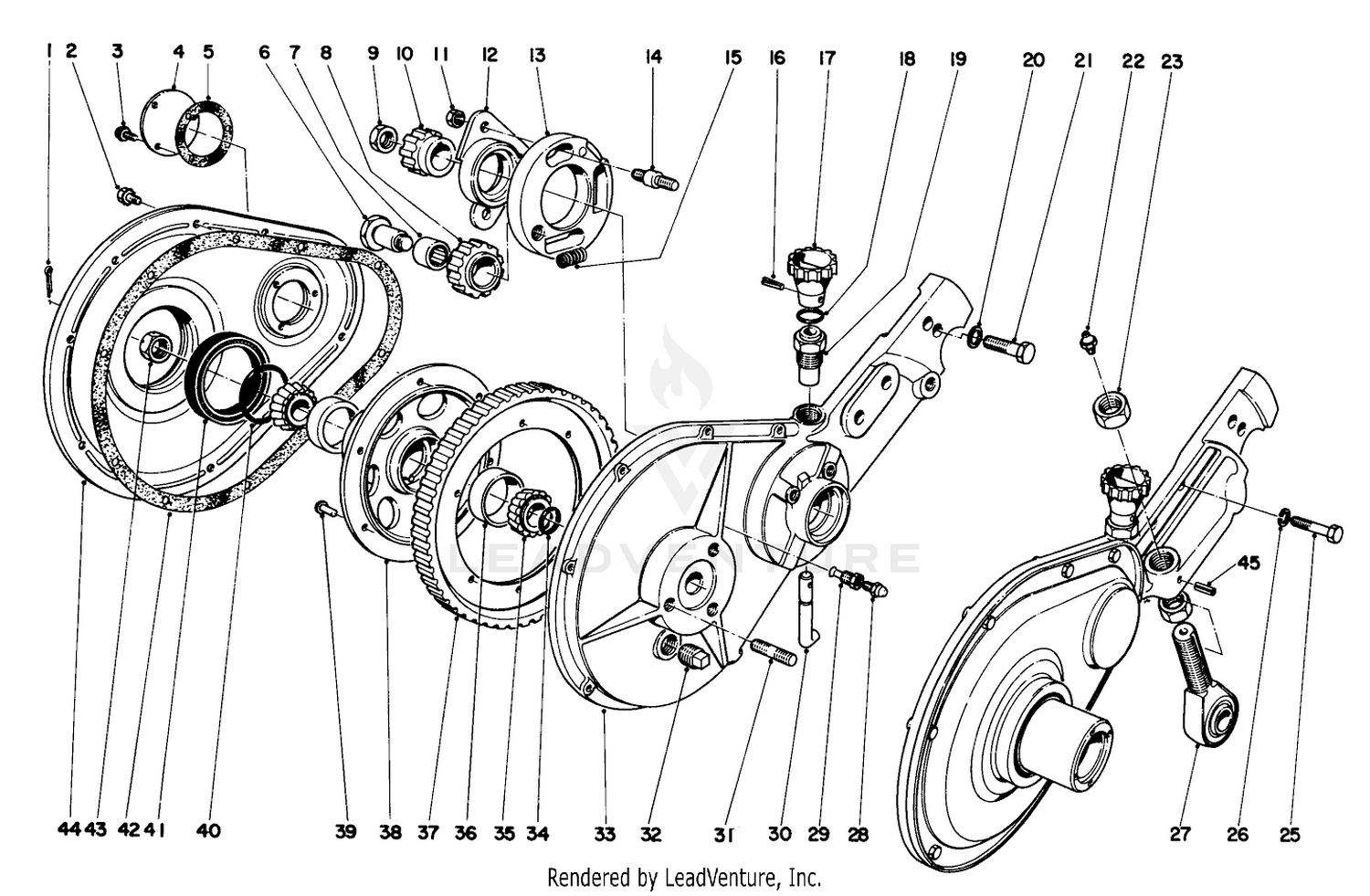

| Ref | Part Number | Description |
|---|
| 1 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 2 |
32140-79 |
Screw Price: Call Us |
| 3 |
11-8960 |
FASTENER ASM Price: $1.90 |
| 4 |
5-1460 |
COVER-PINION, REEL Price: $6.07 |
| 5 |
106-5408 |
GASKET-COVER This part replaces 5-1458. Price: $2.12 |
| 6 |
3-9116 |
SHAFT-IDLER PINION, RH Price: $24.43 |
| 7 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 8 |
3-8314 |
DISCONTINUED X-REF Price: Call Us |
| 9 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 10 |
5-1463 |
PINION-REEL Price: $82.16 |
| 11 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 12 |
3-3996 |
DISCONTINUED Price: Call Us |
| 13 |
34170 |
Ratchet Gear Ring R.H. Price: Call Us |
| 14 |
3-7445 |
STUD-RING, RATCHET Price: $26.01 |
| 15 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 16 |
3283-1 |
PIN-GROOVED Price: $1.97 |
| 17 |
5-1464-03 |
HANDLE-RATCHET, THROWOUT This part replaces 5-1464. Price: $31.84 |
| 18 |
237-21 |
O-RING Price: $0.70 |
| 19 |
3-3892 |
BEARING-FINGER, THROWOUT Price: $47.64 |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
325-7 |
SCREW-HH Price: $1.53 |
| 22 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 25 |
324-6 |
SCREW-HH Price: $0.81 |
| 26 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 27 |
17-9150 |
DISCONTINUED X-REF Price: Call Us |
| 28 |
302-14 |
VENT Price: $8.03 |
| 29 |
54641 |
Air Vent Fitting Price: Call Us |
| 30 |
3-3904 |
FINGER-THROWOUT, RH Price: $49.71 |
| 31 |
3-7446 |
DISCONTINUED Price: Call Us |
| 32 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 33 |
5-3779 |
DISCONTINUED Price: Call Us |
| 34 |
237-54 |
O-RING Price: $1.97 |
| 35 |
254-78 |
BEARING-CONE Price: $12.22 |
| 36 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 37 |
5-1457 |
GEAR-WHEEL, DRIVE Price: $352.84 |
| 38 |
34001 |
Ring Gear Hub Price: Call Us |
| 39 |
3262-3 |
RIVET-BUTTON HEAD Price: $0.88 |
| 40 |
237-38 |
O-RING Price: $1.94 |
| 41 |
84-8200 |
SEAL-OIL This part replaces 253-101. Price: $13.93 |
| 42 |
106-5409 |
GASKET-CASE, GEAR This part replaces 3-5002. Price: $8.86 |
| 43 |
5-1462 |
DISCONTINUED Price: Call Us |
| 44 |
140-5509 |
ASM - GEARCASE COVER This part replaces 11-6270. Price: $75.48 |
