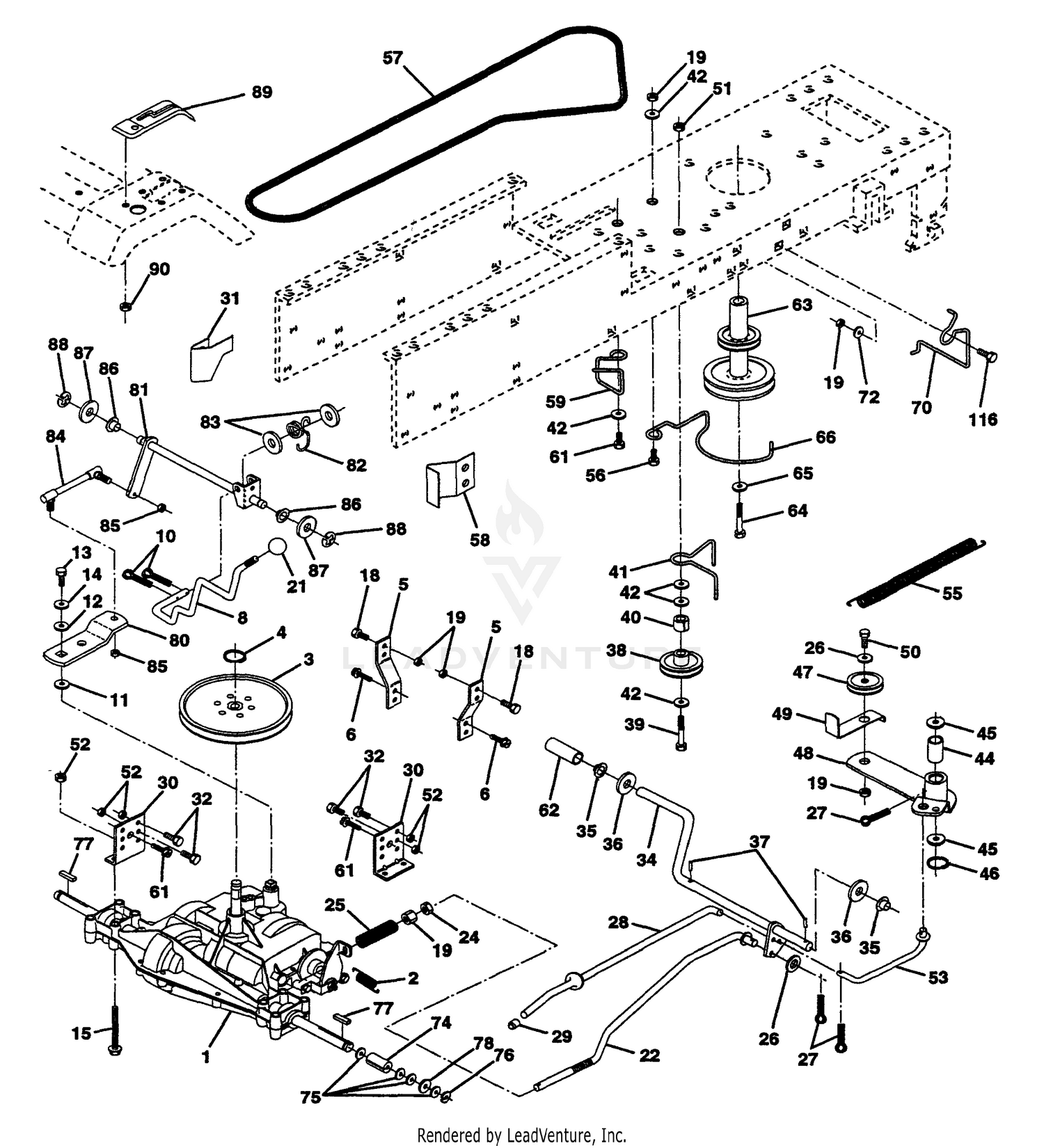

| Ref | Part Number | Description |
|---|
| 1 |
532170269 |
TRANSAXLE.DANA.4360-140.6S.00 This part replaces 532145605. Price: $499.99 |
| 1 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 2 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 3 |
532123666 |
PULLEY TRANS Price: $39.99 |
| 3 |
98-9622 |
PIPE-INJECTION Price: $74.03 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 4 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 5 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 6 |
98-9624 |
OVERFLOW PIPE ASM Price: $5.18 |
| 7 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 8 |
532141003 |
ROD SHIFT Price: $10.40 |
| 8 |
98-9621 |
OVERFLOW PIPE ASM Price: $73.29 |
| 9 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 10 |
98-9631 |
CORD-PLUG, GLOW Price: $12.41 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 11 |
98-9623 |
PLUG-GLOW Price: $93.76 |
| 12 |
819151216 |
Washer 15/32 X 3/4 X 16 Ga Price: $2.45 |
| 12 |
98-7676 |
GASKET Price: $2.73 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 13 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
98-7654 |
GASKET Price: $8.84 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 15 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 16 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 17 |
99-8377 |
NUT-FLANGE Price: $2.56 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 34 |
532149001 |
SHAFT PEDAL FOOT Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
532109070 |
BELT KEEPER LT NLA Price: $6.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 44 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 45 |
532110812 |
WASHER LT Price: $3.10 |
| 46 |
812000039 |
KLIP RING Price: $4.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532123789 |
ARM IDLER Price: $13.07 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 This part replaces 532130801. Price: $34.99 |
| 58 |
532127274 |
KEEPER Price: $3.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
532129921 |
KEEPER, BELT Price: $3.99 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 72 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 74 |
532109502 |
SPACER LT Price: $4.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 80 |
532131487 |
SHIFT ARM Price: $3.99 |
| 81 |
532161077 |
SHAFT ASSY This part replaces 532136933. Price: $17.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532132183 |
TIE ROD Price: $49.99 |
| 85 |
532150360 |
NUT LOCK CENTER 1/4 -28 FNTHD Price: $2.99 |
| 86 |
532071208 |
BUSHING.STEERING.ROD LTB-WSL Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532139964 |
CONSOLE Price: $13.39 |
