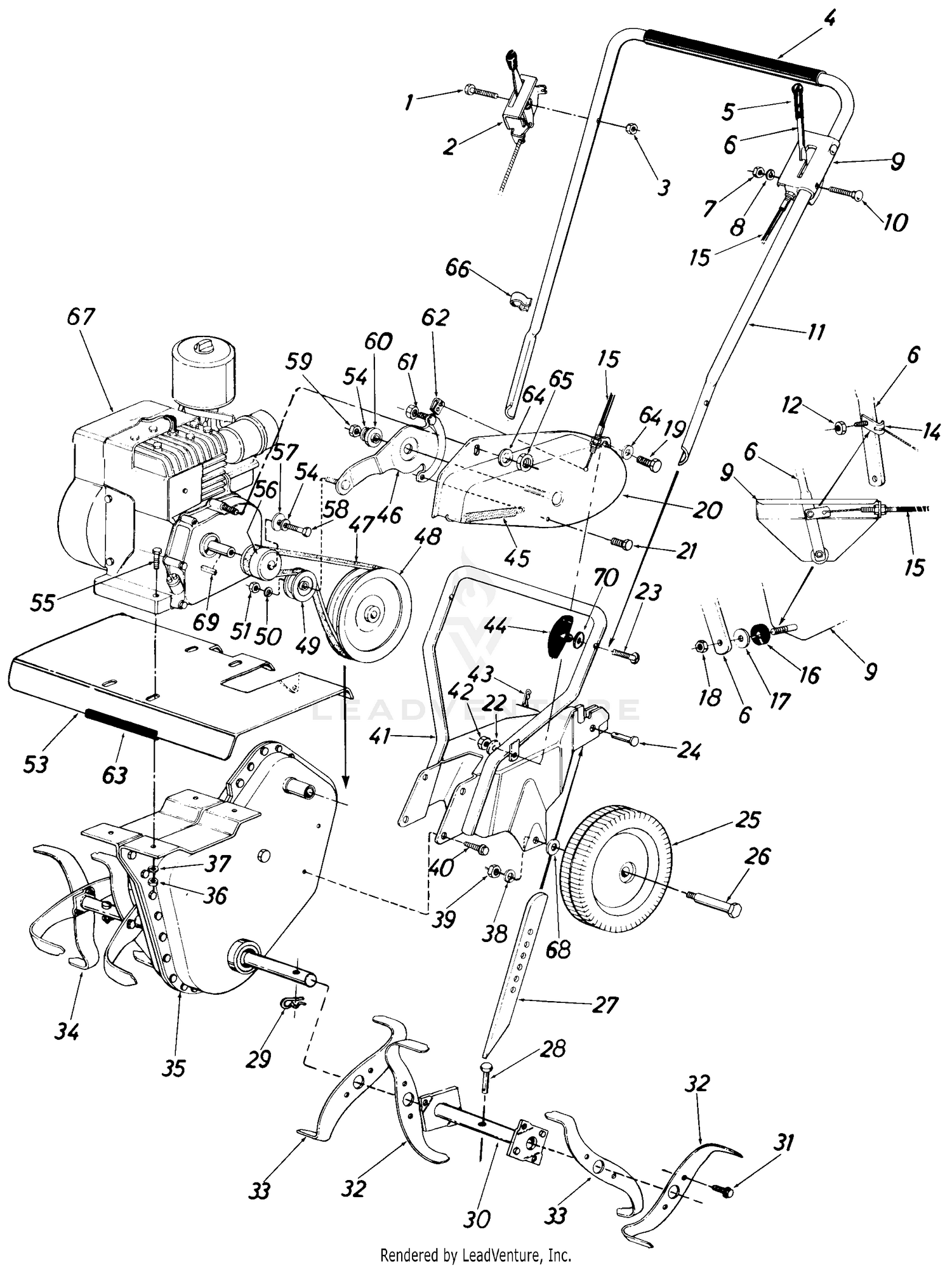

| Ref | Part Number | Description |
|---|
| 1 |
710-0606 |
Hex Bolt 1/4-20 x 1.50" Lg. Price: $4.67 |
| 2 |
746-0242 |
THROTTLE CONTROL Not Available Price: |
| 3 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 4 |
718-0145 |
Grip-14" Lg. Price: Call Us |
| 5 |
720-0184 |
Handle Grip Price: Call Us |
| 6 |
04773 |
Clutch Handle Ass'y. Price: Call Us |
| 7 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 8 |
736-0142 |
Fl-Wash. 1/4" I.D. x .50" O.D. x .063 Price: $3.95 |
| 9 |
04771 |
Clutch Handle Brkt. Ass'y. Price: Call Us |
| 10 |
710-0111 |
Carr. Bolt 1/4-20 x 1.25" Lg. Price: $3.19 |
| 11 |
749-0246 |
UPPER HANDLE Not Available Price: |
| 12 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 14 |
746-0260 |
FITTING-CLEVIS LANYARD Not Available Price: |
| 15 |
746-0294 |
CABLE-CLUT Not Available Price: |
| 16 |
735-0127 |
Rubber Wash. Price: $5.94 |
| 17 |
736-0173 |
Fl-Wash. 1/4" I.D. x .75" O.D. x .063 Price: $3.76 |
| 18 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 19 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 20 |
04768 |
BELT COVER ASS'Y. Not Available Price: |
| 21 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4 x .50 Price: $3.86 |
| 22 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 23 |
710-1174 |
Carriage Bolt 5/16-18 x 2 This part replaces 710-0405. Price: $6.28 |
| 24 |
711-0653 |
Clevis Pin Price: $3.37 |
| 26 |
738-0213 |
Front Axle Bolt This part replaces 738-0126. Price: $7.16 |
| 28 |
711-0702 |
CLEVIS PIN .312 x 1.50 Not Available Price: |
| 29 |
714-0145 |
Hairpin Cotter Price: $4.42 |
| 30 |
04918-0637 |
ADAPTER ASSEMBLY-TINE Not Available This part replaces 04918. Price: |
| 31 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 32 |
04923-0637 |
TINE (LH) Not Available This part replaces 04923. Price: |
| 33 |
04922 |
TINE (RH) Not Available Price: |
| 34 |
04921 |
TINE ASS'Y. COMP. Not Available Price: |
| 35 |
04924 |
Chain Case Ass'y. Comp. Price: Call Us |
| 36 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 37 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 38 |
736-0217 |
L-Wash. 3/8" Scr. H.D. Price: $3.86 |
| 39 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 40 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 42 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 43 |
714-0104 |
Intern. Cotter Pin Price: $3.90 |
| 44 |
720-04072A |
Star Knob This part replaces 09966. Price: $6.07 |
| 45 |
732-0199 |
EXTENSION SPRING Not Available Price: |
| 46 |
04865 |
Idler Arm Ass'y. Price: Call Us |
| 47 |
954-0216 |
BELT-V 3/8 X 29 NLAUD Not Available This part replaces 754-0216. Price: |
| 48 |
756-0287 |
PULLEY Not Available Price: |
| 49 |
756-0199 |
Fl-Idler 2" Price: $22.53 |
| 50 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 51 |
712-0116 |
Hex Nut 3/8-24 Thd. Price: $3.95 |
| 53 |
04765 |
Tine Shield Price: $12.00 |
| 54 |
736-0169 |
L-Wash. 3/8" Scr. Price: $3.33 |
| 55 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 56 |
756-0286 |
PULLEY Not Available Price: |
| 57 |
736-0258 |
Fl-Wash. .385 I.D. x 1.00" O.D. x .135 Price: $3.93 |
| 58 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 59 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 60 |
936-0289 |
Bushing, Shoulder, .320 ID x .135 This part replaces 736-0289. Price: $6.01 |
| 61 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 62 |
746-0260 |
FITTING-CLEVIS LANYARD Not Available Price: |
| 63 |
731-0511 |
Trim Strip-4" Price: $3.29 |
| 64 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 65 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 66 |
725-0157 |
Cable Tie Price: $3.46 |
| 67 |
N/A |
Eng i ne |
| 68 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 69 |
714-0122 |
Square Key 3/16 x 3/4" Lg. Price: $3.07 |
