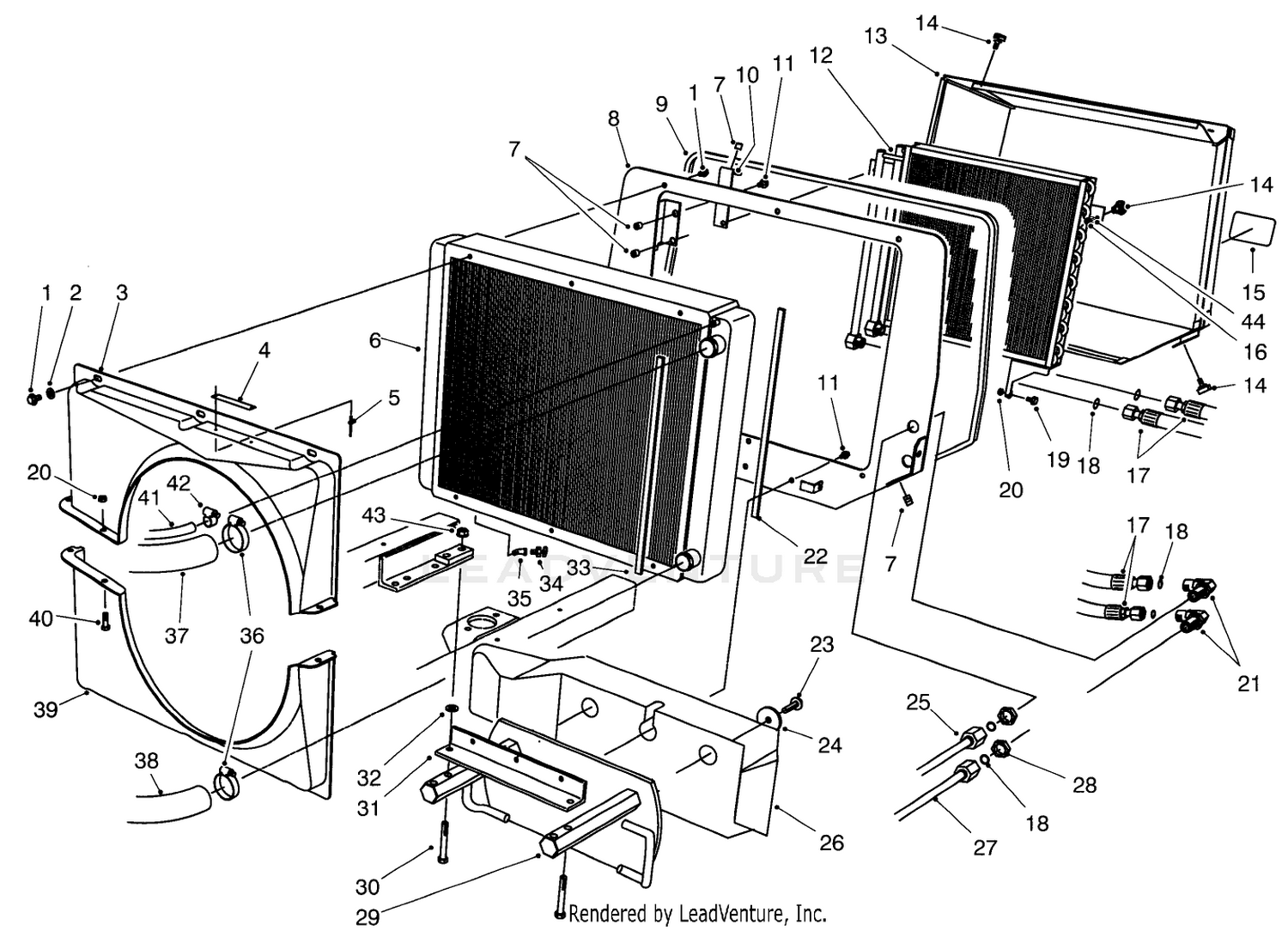

| Ref | Part Number | Description |
|---|
| 1 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 3 |
74-4980 |
SHROUD-TOP Price: $112.09 |
| 4 |
76-8750 |
PLATE-WARNING Price: $9.67 |
| 5 |
3290-271 |
RIVET-POP Price: $0.25 |
| 6 |
74-3410 |
RADIATOR ASM Price: $2,099.35 |
| 7 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 8 |
14-0939 |
RADIATOR MOUNT WA *B Price: $838.74 |
| 9 |
92-1394 |
DISCONTINUED Price: Call Us |
| 10 |
92-1396 |
SCREEN BRKT ASSY RH This part replaces 92-1385. Price: $112.58 |
| 11 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 12 |
114-3995 |
OIL COOLER ASM This part replaces 82-3740. Price: $1,388.56 |
| 13 |
92-1395 |
RAD SCREEN KIT-GM455D This part replaces 92-6550. Price: $1,661.66 |
| 14 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 15 |
67-1300 |
DECAL Price: $29.99 |
| 16 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 17 |
94-8010 |
HOSE ASM This part replaces 76-9540. Price: $148.03 |
| 18 |
237-65 |
O-RING Price: $2.50 |
| 19 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 20 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 21 |
340-72 |
FITTING-BULKHEAD, 90 DEG Price: $41.27 |
| 22 |
76-6381 |
STRIP-SEALING, RADIATOR Price: $4.29 |
| 23 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 24 |
88-1360 |
WASHER-WEIGHT, REAR Price: $35.05 |
| 25 |
74-6400 |
FILTER LINE TUBE ASM Price: $97.62 |
| 26 |
88-1220-03 |
REAR WEIGHT This part replaces 88-1220. Price: $206.32 |
| 27 |
86-5800 |
TUBE ASSY-OIL COOLER Price: $90.69 |
| 28 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 29 |
92-7781-03 |
WEIGHT ASM - REAR This part replaces 92-7781. Price: $602.77 |
| 30 |
325-35 |
SCREW-HH Price: $2.37 |
| 31 |
74-5460-03 |
ANGLE-SUPPORT, RADIATOR This part replaces 74-5460. Price: $65.15 |
| 32 |
3234-27 |
SCREW-HHF Price: $5.97 |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
74-4990 |
DISCONTINUED Price: Call Us |
| 33 |
76-6382 |
STRIP-SEALING, FAN SHROUD Price: $4.22 |
| 34 |
304-46 |
DRAINCOCK Price: $7.55 |
| 35 |
2811-1 |
ELBOW-STREET, 45 DEG Price: $21.35 |
| 36 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 37 |
74-5930 |
DISCONTINUED Price: Call Us |
| 38 |
74-6020 |
HOSE-RADIATOR, LOWER Price: $48.93 |
| 39 |
74-4990 |
DISCONTINUED Price: Call Us |
| 40 |
322-3 |
SCREW-HH Price: $0.79 |
| 41 |
74-9120 |
HOSE-OVERFLOW, RADIATOR Price: $9.97 |
| 42 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 43 |
32128-49 |
NUT-HHF Price: $1.04 |
